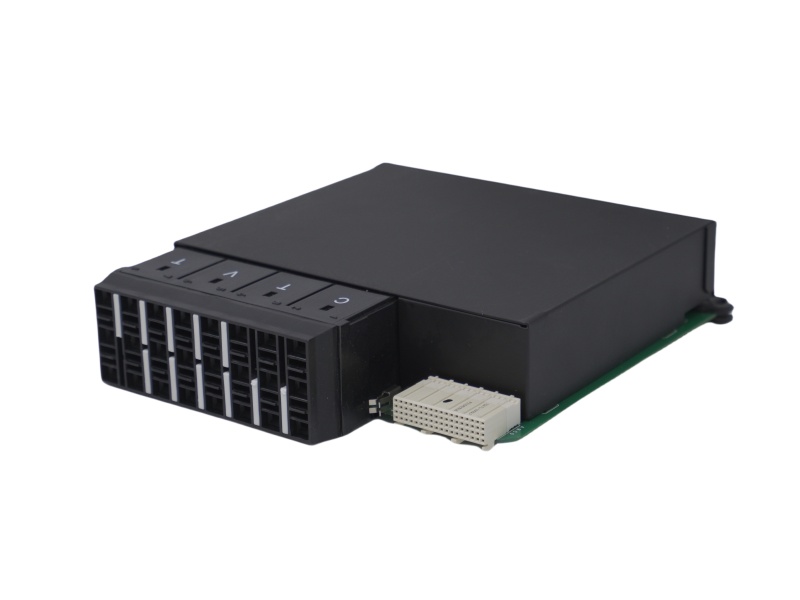

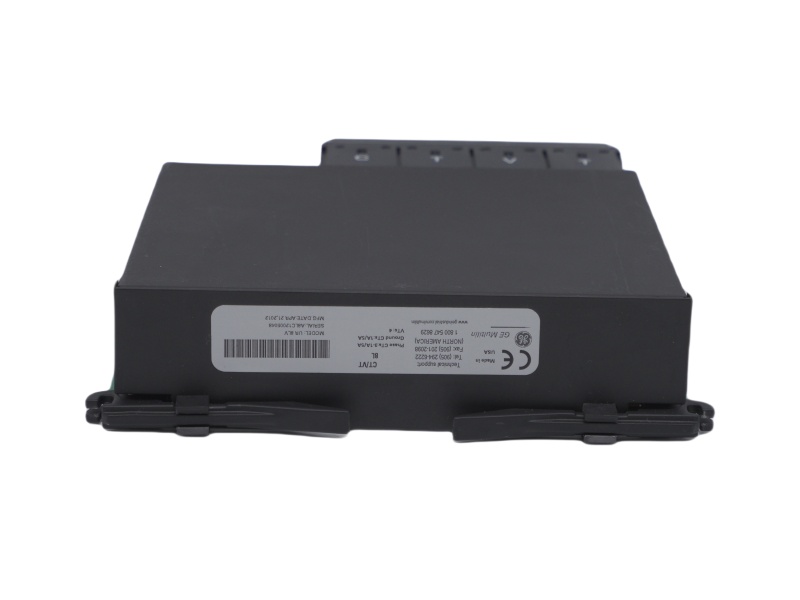

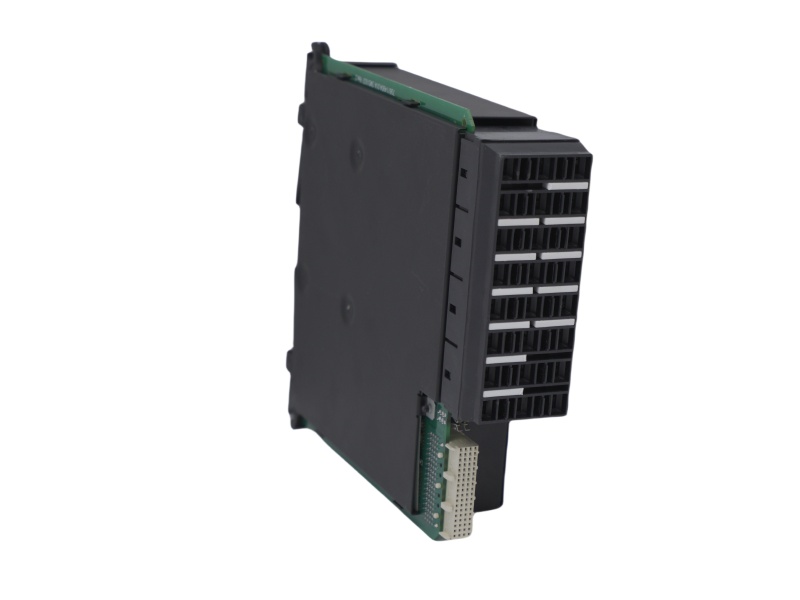

UR8LV Product datasheet
|
Model number: |
UR8LV |
|
Module Type： |
Multilin Ct/vt Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.84kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x19.5x17.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
UR8LV Functional Description
The General Electric UR9EV is a high-performance industrial control module designed to enhance the safety and efficiency of power systems. Serving as a CT/VT module, the UR9EV provides relays with 3-1A/5A phase current transformers, a 1A/5A ground current transformer, and four-terminal voltage transformers. This configuration is essential for monitoring and managing AC power lines, ensuring reliable operation of electrical systems.
One of the standout features of the General Electric UR9EV is its enhanced diagnostic capabilities. The module is equipped with advanced algorithms that verify the integrity of analog signals, guaranteeing their reliability. This proactive approach to diagnostics helps in early detection of potential issues, thereby improving the overall safety of both users and equipment.
Installation of the UR9EV Digital I/O Control Module is straightforward, with most users opting for size 12 American Wire Gauge (AWG) for connections, although the relay can accommodate up to size 10 AWG. Detailed installation guidelines and safety precautions are available in the universal relay manuals, ensuring proper setup and operation.
In addition to its core functionalities, the GE UR9EV Multilin Processor Module Cpu is designed for versatility. It can replace existing modules, upgrade current systems, or introduce new features to universal relays that previously lacked specific modules. This adaptability makes the UR9EV a valuable asset in modernizing and enhancing industrial automation control systems.
In summary, the General Electric UR9EV module is a robust solution for industrial automation, offering critical monitoring and management of AC power lines. Its enhanced diagnostics, ease of installation, and versatility make it an excellent choice for ensuring the safety and efficiency of power systems.
