General electric 531X133PRUALG1 Process Interface Board

General electric 531X133PRUALG1
General electric 531X133PRUALG1
General electric 531X133PRUALG1

531X133PRUALG1 Product datasheet

Model number:

531X133PRUALG1



Module Type:

Process Interface Board

Manufacture:

GE



Condition:

Brand New

Range of Product:

Multilin



Lead time:

In Stock

Weight:

0.06 kg



HS CODE:

8537101190

Dimension:

11.3x5.7x1.5cm



MOQ:

1

Product Origin:

USA



System:

DCS

Discontinued on:

Active



Communication Service:

Ethernet router



531X133PRUALG1 Functional Description


The 531X133PRUALG1 is a Process Interface Board manufactured by General Electric (GE) and is designed for use in their general-purpose drive systems. To determine whether this board is compatible with your specific system, consult your system’s user guide or manual. General electric 531X133PRUALG1 board is part of the 531x series, which includes several versions of Process Interface Boards, each tailored for signal processing tasks such as filtering, amplifying, isolating, and converting input signals into outputs suitable for connected control systems.

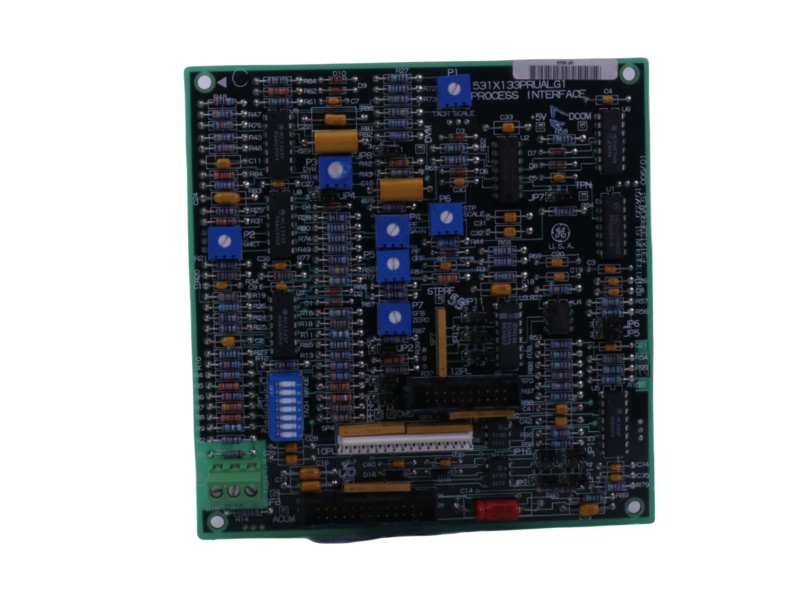

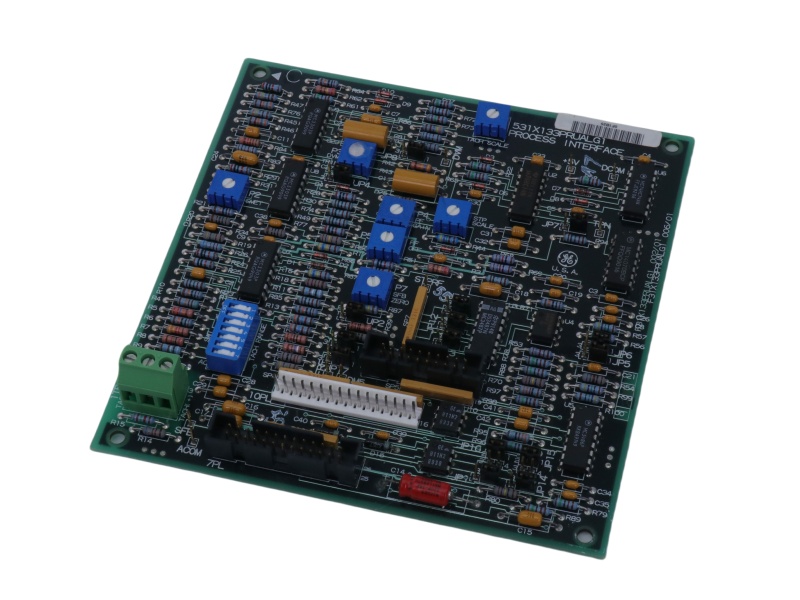

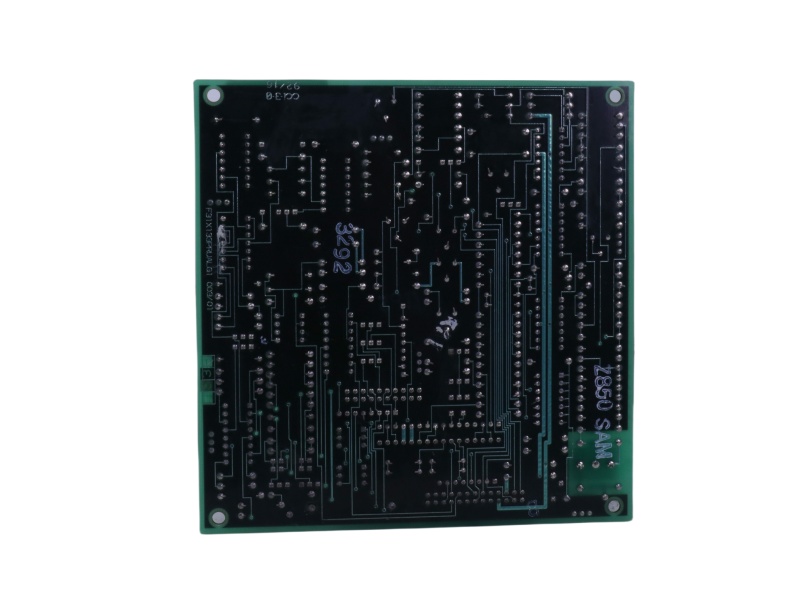

The 531X133PRUALG1 Process Interface Board is equipped with mounting holes drilled in each corner, allowing for secure installation. The board is marked with identifying codes such as F31X133PRUALG1, 006/01, and 002/01, and its components are labeled with individual manufacturer part numbers and reference designators for easy identification. Key features of the board include a three-position terminal strip located in one corner, two male vertical pin cable connectors, and a single header connector on the board surface.



In terms of components, the Turbine Control 531x Boards 531X133PRUALG1 includes seven potentiometers, five resistor network arrays, and numerous metal film resistors. It also features multiple diodes, ceramic capacitors, polyester vinyl capacitors, and a single aluminum electrolytic capacitor. The board is further equipped with several TP test points, jumper switches, and integrated circuits such as analog line receivers and analog inverters. Additionally, it has a seven-toggle switch labeled “Tach range.”
