IS200VAICH1DBC Product datasheet
Model number: |
IS200VAICH1DBC |
|
Module Type: |
Analog I/O Board |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
EX2100 |
|
Lead time: |
In Stock |
Weight: |
0.3 kg |
|
HS CODE: |
8537101190 |
Dimension: |
2x18.5x26.1cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200VAICH1DBC Functional Description
The IS200VAICH1D is an I/O processor board that plays a crucial role in digital filtering and RTD/thermocouple linearizations. It works alongside two TBAI terminal boards and features a high-speed CPU in a single-width VME form factor. The IS200VAICH1D utilizes a 32-bit floating-point format and is equipped with a sensor characteristic library for controlling various quantities. Configurations can be updated via software while the unit remains active, providing flexibility for real-time adjustments.

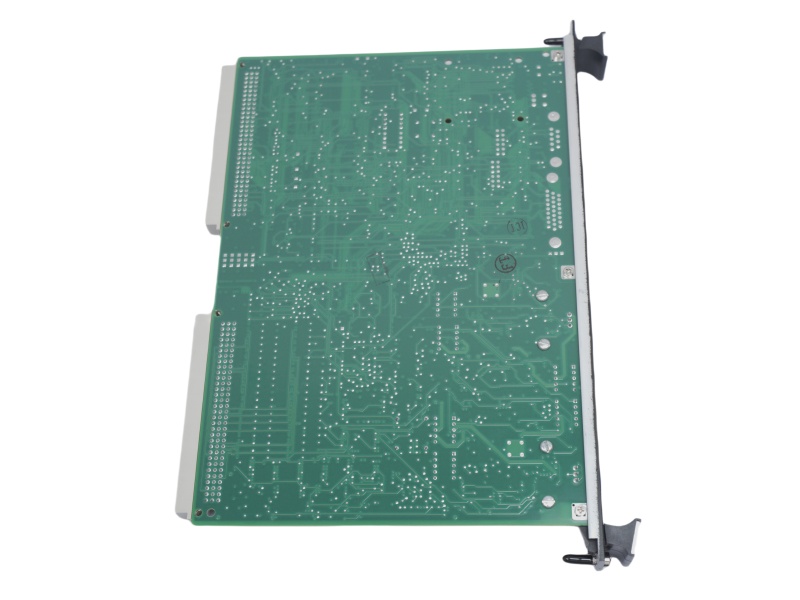

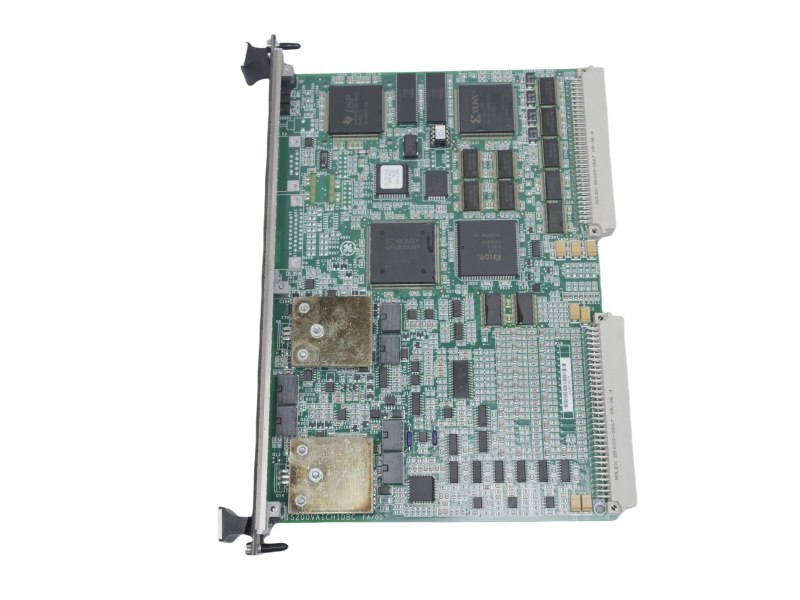

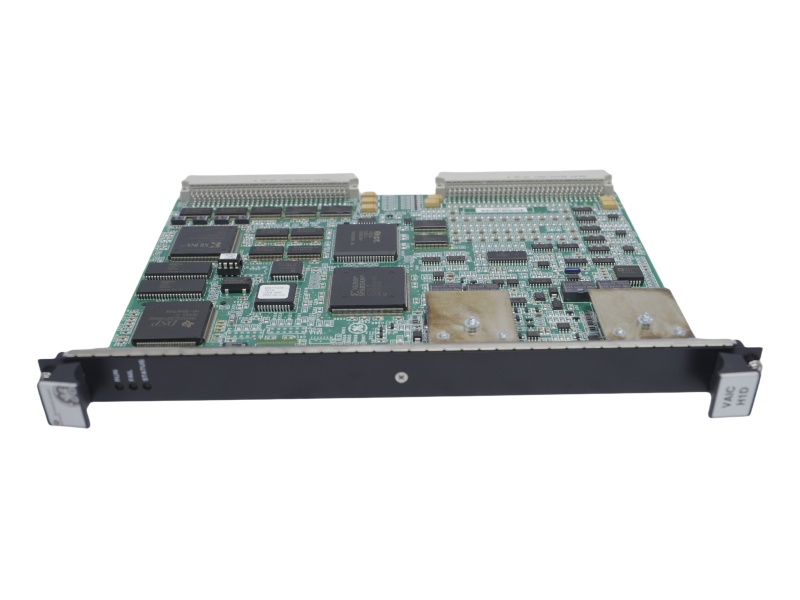

Designed with a narrow front faceplate, the IS200VAICH1DBC Analog I/O Board includes three LED indicators to display status updates and highlight run/fail issues. On the rear, the board is equipped with two 37-pin backplane connectors that enable communication with the rack and other boards, ensuring smooth operation. The IS200VAICH1DBC Mark VI PCB Board Assembly is built with various components such as processor chips, integrated circuits, relays, and diodes, all of which are marked with part numbers for easy reference to datasheets.
Though the General Electric IS200VAICH1DBC is not the original version of its Mark VI Series counterpart, it maintains full functionality with a D-rated revision. It's important to note that the IS200VAICH1D is designed to meet specific product requirements within the General Electric system. Even though the board may not have an abundance of printed manuals available online, its General Electric design ensures strong support for research purposes, making it a reliable component for various applications.
If you have other request contact our team to get customized service
GE |
DS200LDCCH1ALA |
GE |
IS220YDOAS1AJ |
GE |
IS200VAICH1DAA |
GE |
DS200LDCCH1 |
GE |
IS200JPDMG1ADC |
GE |
IS200MVRBH1ACC |
GE |
DS200KLDCG1AAA |
GE |
IS200SRLYH2AAA |
GE |
IS220PAOCH1BE |
GE |
DS200KLDCG1A |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
GE |
DS200KLDBG1A |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
GE |
DS200KLDBG1ABC |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
GE |
DS200GDPAG1A |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
GE |
DS200GDPAG1AEB |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
GE |
DS2020FECNRX010A |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
GE |
DS200FSAAG1ABA |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
GE Gas Turbine Control System
The GE Mark VI system is a comprehensive control solution used primarily in power generation and other industrial applications. It controls, protects, and monitors gas and steam turbines, generators, and auxiliary systems.
The SPEEDTRONIC™ Mark VI turbine control is the current state-of-the-art control for GE turbines that have a heritage of more than 30 years of successful operation. It is designed as a complete integrated control, protection, and monitoring system for generator and mechanical drive applications of gas and steam turbines. It is also an ideal platform for integrating all power island and balance-of-plant controls. Hardware and software are designed with close coordination between GE’s turbine design engineering and controls engineering to insure that your control system provides the optimum turbine performance and you receive a true “system” solution. With Mark VI, you receive the benefits of GE’s unmatched experience with an advanced turbine control platform.
The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack. Inputs are received by the Control Module through termination boards with either barrier or box-type terminal blocks and passive signal conditioning. Each I/O card contains a TMS320C32 DSP processor to digitally filter the data before conversion to 32 bit IEEE-854 floating point format. The data is then placed in dual port memory that is accessible by the on-board C32 DSP on one side and the VME bus on the other. In addition to the I/O cards, the Control Module contains an “internal” communication card, a main processor card, and sometimes a flash disk card. Each card takes one slot except for the main processor that takes two slots. Cards are manufactured with surface-mounted technology and conformal coated per IPC-CC830. I/O data is transmitted on the VME backplane between the I/O cards and the VCMI card located in slot 1. The VCMI is used for “internal” communications between:
■ I/O cards that are contained within its card rack
■ I/O cards that may be contained in expansion I/O racks called Interface Modules
■ I/O in backup <P> Protection Modules
■ I/O in other Control Modules used in triple redundant control configurations
■ The main processor card
Triple Redundancy
Mark VI control systems are available in Simplex and Triple Redundant forms for small applications and large integrated systems with control ranging from a single module to many distributed modules. The name Triple Module Redundant (TMR) is derived from the basic architecture with three completely separate and independent Control Modules, power supplies, and IONets. Mark VI is the third generation of triple redundant control systems that were pioneered by GE in 1983. System throughput enables operation of up to nine, 21-slot VME racks of I/O cards at 40 ms including voting the data. Inputs are voted in software in a scheme called Software Implemented Fault Tolerance (SIFT). The VCMI card in each Control Module receives inputs from the Control Module back-plane and other modules via “its own” IONet. Data from the VCMI cards in each of the three Control Modules is then exchanged and voted prior to transmitting the data to the main processor cards for execution of the application software. Output voting is extended to the turbine with three coil servos for control valves and 2 out of 3 relays for critical outputs such as hydraulic trip solenoids. Other forms of output voting are available, including a median select of 4-20ma outputs for process control and 0- 200ma outputs for positioners. Sensor interface for TMR controls can be either single, dual, triple redundant, or combinations of redundancy levels. The TMR architecture supports riding through a single point failure in the electronics and repair of the defective card or module while the process is running. Adding sensor redundancy increases the fault tolerance of the overall “system.” Another TMR feature is the ability to distinguish between field sensor faults and internal electronics faults. Diagnostics continuously monitor the 3 sets of input electronics and alarms any discrepancies between them as an internal fault versus a sensor fault. In addition, all three main processors
continue to execute the correct “voted” input data,More info pls check GEH-6005 datasheet
