UR6EH Product datasheet

UR6EH Functional Description

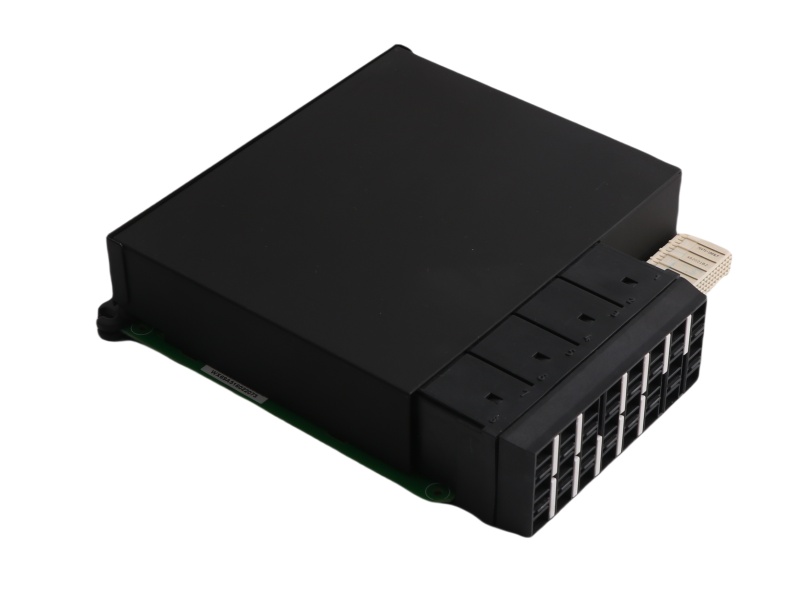

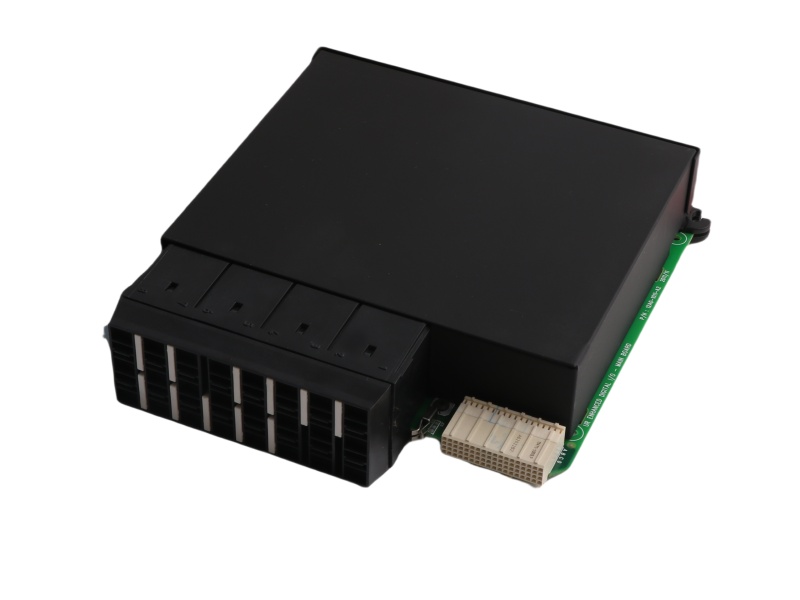

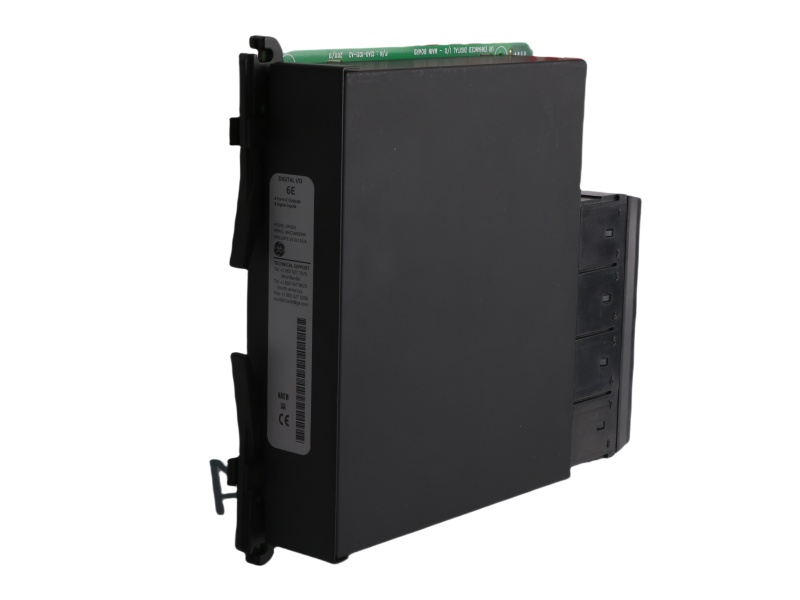

The General Electric (GE) Multilin UR-6EH Digital Input/Output (I/O) Module is an essential component designed for integration with GE’s Universal Relays. This module enhances the relay's functionality by providing 4 Form-C outputs and 8 digital inputs, allowing for effective communication between the relay and other equipment in the power system. The UR-6EH module is a crucial part of ensuring seamless control and monitoring within electrical networks.

The Fanuc UR6EH UR Series Universal module’s 4 Form-C outputs are equipped with Single Pole-Double Throw (SPDT) contacts, which enable flexible switching between normally open (NO) and normally closed (NC) contacts. This feature accommodates various control requirements, providing versatility in system operation. Additionally, the module’s 8 digital inputs enable the relay to receive status signals from connected devices, which supports real-time monitoring and control across the system.

Compatible with GE UR6EH Multilin Processor Module Cpu, the UR-6EH module is designed for reliability in power system applications that demand robust digital I/O capabilities. This module's compatibility ensures that it can be easily integrated into existing setups and provides a dependable solution for control and monitoring.

The UR6EH High-performance Relay Module is ideal for use in substations and other industrial settings where equipment monitoring and control are critical. Its robust design ensures that it performs reliably even in demanding environments. For users looking to optimize the performance of the UR-6EH module, referring to GE’s Universal Relay user manuals is recommended. These manuals provide in-depth instructions on proper wiring and configuration, ensuring seamless integration into power system operations.
