UR7HH Product datasheet
|
Model number: |
UR7HH |
|
Module Type： |
UR Control Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.84kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x19.5x17.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
UR7HH Functional Description

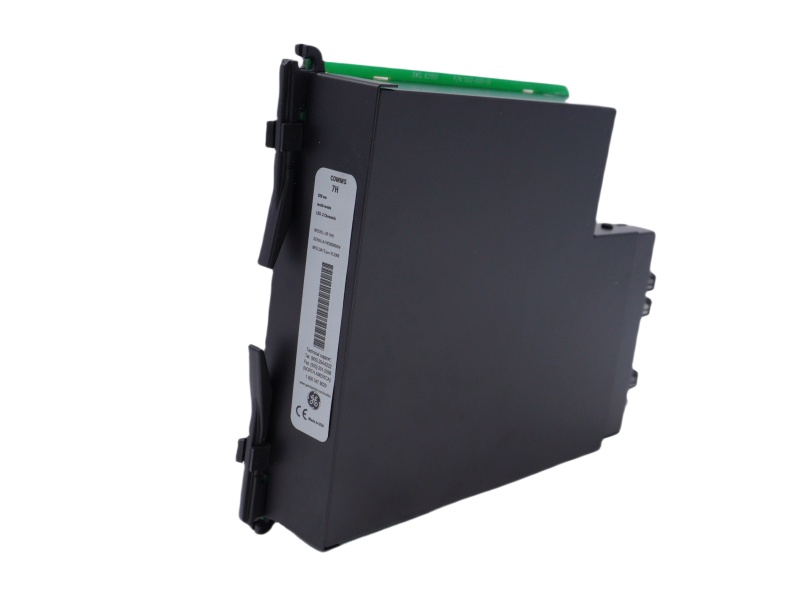

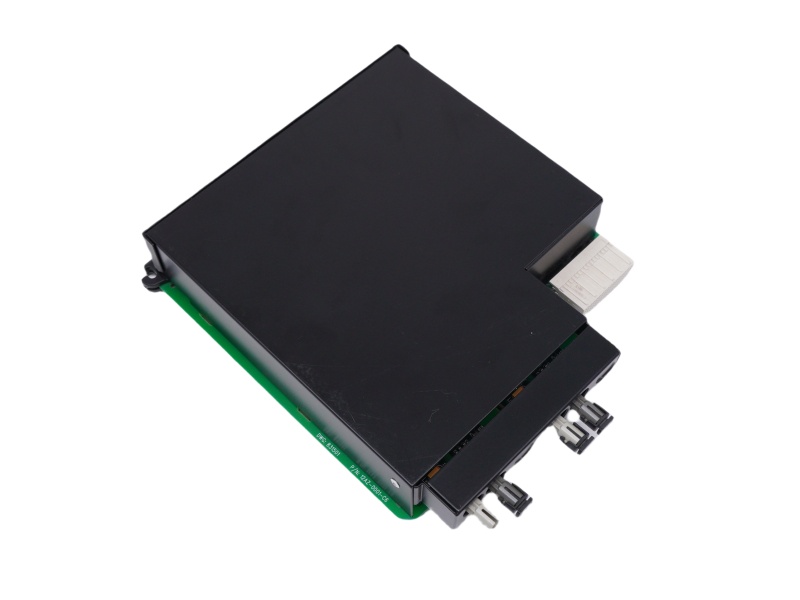

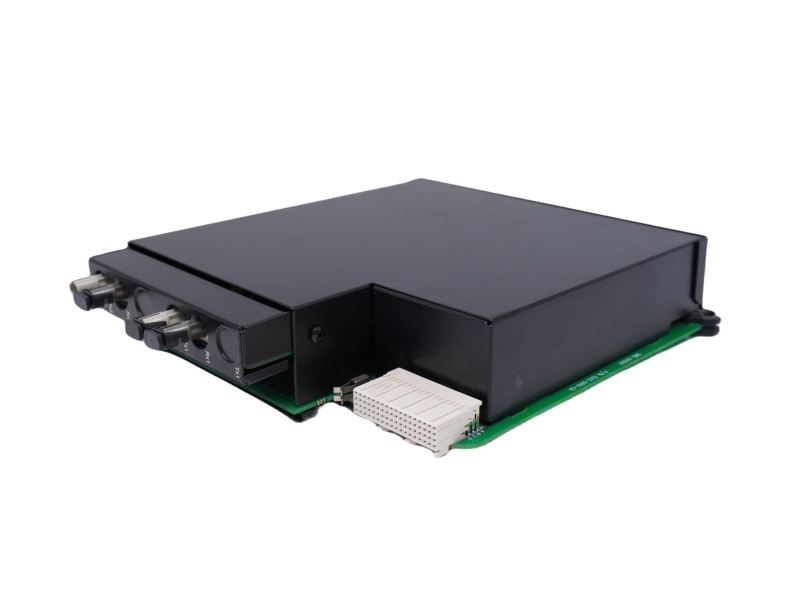

The UR-7HH Communications Module is designed for installation in the Universal Relays series, offering two LED multi-mode channels that operate at a wavelength of 820 nm. This module facilitates interrelay communication with high-speed, efficient performance, making it ideal for integrating Multilin’s Universal Relays into existing systems. The UR-7HH’s use of multi-mode fiber optic wiring provides a cost-effective option compared to single-mode, although users should consider cable length since multi-mode fibers tend to experience greater attenuation over longer distances.
The General Electric UR7HH Multilin COMMS Module operates with multiple wavelengths, which can influence light scattering, and buyers should carefully research which module best fits their needs based on system requirements and distance. Detailed information about module options is available in the Universal Relays manuals. Additionally, the module’s status can be monitored through the relay’s LED or by connecting to a computer running Multilin’s EnerVista software. EnerVista offers a user-friendly interface that allows for monitoring channel health, trending, and exporting data related to interrelay communication. With minimal hardware requirements, EnerVista is a cost-effective solution for enhanced monitoring.
The UR7HH High-performance Relay Module supports the IEC 61850 DNP 3.0, Modbus TCP/IP, and IEC 60870-5-104 protocols, ensuring seamless integration into modern infrastructure. For high-performance communication, the module includes three Ethernet ports, mitigating potential latency and supporting IEEE C37.118 synchrophasors over Ethernet.
In summary, the General Electric UR7HH provides robust and scalable communication capabilities, enabling efficient data exchange across Universal Relays and enhancing overall system performance.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
UR9WH |
GE |
UR8CH |
GE |
UR6EV |
|
GE |
UR9VM |
GE |
UR7HH |
GE |
UR6EH |
|
GE |
UR9NH |
GE |
UR7IH |
GE |
UR6DH |
|
GE |
UR9HH |
GE |
UR7CV |
GE |
UR6CH |
|
GE |
UR9GH |
GE |
UR7CM |
GE |
UR6BH |
|
GE |
UR9EV |
GE |
UR7BH |
GE |
UR6AV |
|
GE |
UR8LV |
GE |
UR6UH |
GE |
UR6AH |
|
GE |
UR8LH |
GE |
UR6TH |
GE |
UR67H |
|
GE |
UR8HH |
GE |
UR6NH |
GE |
UR1HH |
|
GE |
UR8FH |
GE |
UR6FH |
GE |
UR9EH |
Multilin UR & URPlus
The Universal Relay family of protection and control products are built on a common modular platform. All UR products feature high performance protection, expandable I/O, integrated monitoring and metering, high-speed communications, and extensive programming and configuration capabilities. The UR is the basis of simplified power management for the protection of critical assets.
• Modular construction via common hardware, reduced spare parts, and plug & play modules for cost savings and simplification
• CyberSentry UR provides robust network security aligned to industry standards and services
• Application flexibility with multiple I/O options including high density I/O, programmable logic, modularity, and specific customization
• Advanced IEC 61850 Ed. 1 and Ed. 2 certified implementation, complete settings via SCL files and comprehensive process bus support (IEC 61850-9-2LE, IEC 61869 or IEC 61850-9-2 Hardfiber) ensures interoperability, device managing optimization and reduced cost of ownership
• Routable GOOSE (R-GOOSE) enables GOOSE messages going beyond the substation, which enables wide area protection and control applications
• An integrated large, full color display, provides real-time visualization and control of the protected bay, via a bay mimic as well as annunciator functionality and graphical visualization of phasors
• Three Ethernet ports enable purpose specific LAN support, reducing latency from heavy traffic on critical communications
• Phasor Measurement Unit (synchrophasor) according to IEEE C37.118 (2014) and IEC 61850-90-5, directly streamed from your protective device
