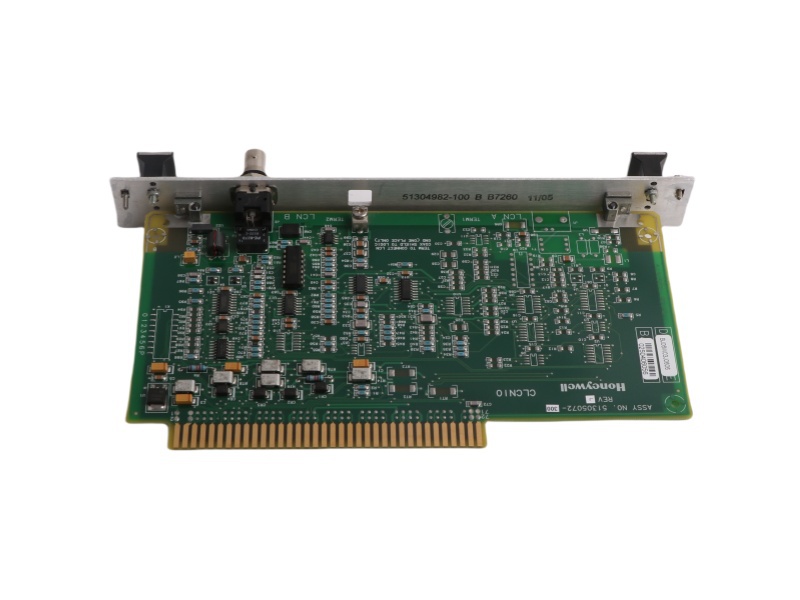

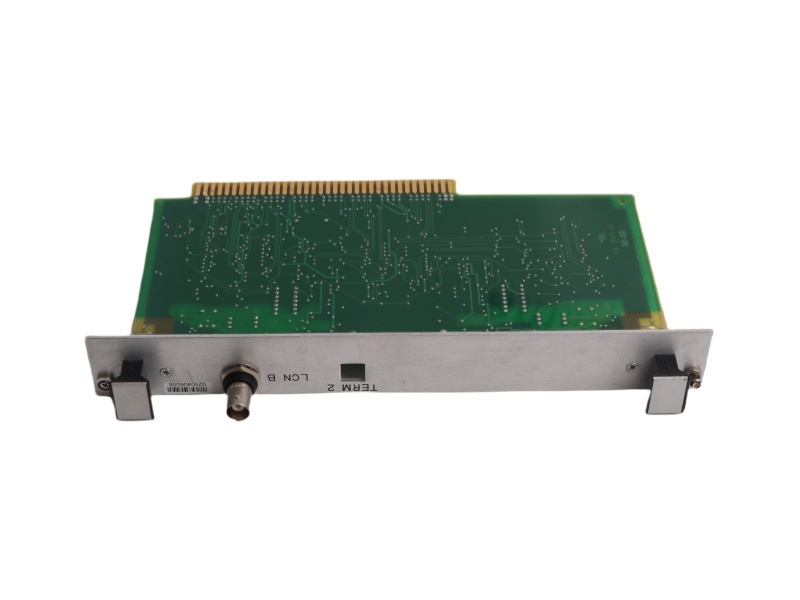

TDC 3000 Control System Introduction

The Enhanced Micro TDC 3000 Control System is an extremely compact, yet fully functional control system in the Honeywell TDC 3000X family. Figure 1-1 is an illustration of the basic Enhanced Micro TDC 3000 Control System. This control system communicates to the process via the Honeywell Universal Control Network (UCN). The process can be monitored and controlled by Program Manager or Advanced Process Manager.

TDC 3000 Control System features

The Enhanced Micro TDC 3000 models have the following characteristics and features:

• Only “version A” models (with 1 US node) are offered as the base system. The old”version B” models (with 2 US nodes) are no longer offered as a base system (the old”version B” models are equivalent to a “version  ” model, plus an optional US node).

• All nodes are equipped with K2LCN processors.

• The base models will include an Advanced Process Manager (APM) as standard equipment.

• The minimum AM processor memory is 4 MW (the base system models are offered with AM nodes in two memory sizes — either 4 MW or 8 MW).

• The US included with the base system has 6 MW processor memory and supports‘Universal’ personality.

• The US node in the base system is equipped with dual 150 MB Bernoulli cartridge ‘multi-drives’. The new multi-drives’ are compatible with 35 MB

• The HM included in the base system has a 875 MB hard drive and 3 MW processor memory.

• The NIM included in the base system has 3 MW processor memory.

• The US monitor and printer are not included with the “R500-Ready” Enhanced Micro TDC 3000 models. These two peripherals have their own model numbers and must be ordered separately. The operator’s keyboard, however, is included with the base system model.

• The Enhanced Micro TDC 3000 models will not support UXS or AXM. There are currently no plans to provide UXS or AXM options with the system.
