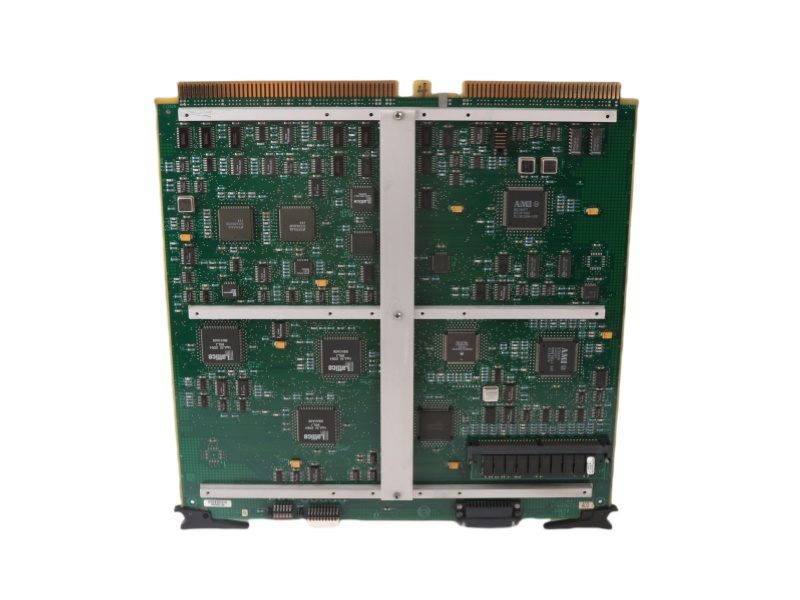

K2LCN-4 51402615-400 Product datasheet
Model number: |
K2LCN-4 51402615-400 |
|
Module Type: |
PCB Card |
Manufacture: |
HONEYWELL |
|
Condition: |
Brand New |
Range of Product: |
TDC 3000 |
|
Lead time: |
In Stock |
Weight: |
0.92kg |
|
HS CODE: |
8537101190 |
Dimension: |
36.6x36.3x2cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
K2LCN-4 51402615-400 Functional Description
Experience unmatched performance and reliability with the K2LCN-4 51402615-400 PCB Card, designed specifically for industrial automation environments. This high-performance motherboard is built to meet the rigorous demands of complex control systems, ensuring efficient data processing and smooth operations across various applications.
Featuring an impressive 4 megawords of memory capacity, the K2LCN-4 51402615-400 Circuit Board offers robust storage and processing capabilities, making it ideal for managing large volumes of data in real-time. Constructed from premium materials, it is engineered for durability and resilience, able to withstand the continuous demands of industrial operations.
The compact and lightweight design of the K2LCN-4 51402615-400 Circuit Board ensures easy installation and seamless integration into existing control systems without sacrificing performance. Its compatibility with a wide range of industrial protocols guarantees smooth communication and interoperability with various automation components, enhancing system efficiency.
Investing in the K2LCN-4 51402615-400 Mother Board ensures operational efficiency, reliability, and reduced downtime, unlocking advanced automation capabilities that optimize your industrial processes.
If you have other request contact our team to get customized service
Honeywell |
K4LCN-16 51403519-160 |
Honeywell |
FS-TSFIRE-1624 |
Honeywell |
FC-TSDO-0824 |
Honeywell |
K2LCN-8 51401551-801 |
Honeywell |
FS-TSDI-16UNI |
Honeywell |
FC-TSDI-16UNI |
Honeywell |
K2LCN-4 51402615-400 |
Honeywell |
FS-TSDI-1624 |
Honeywell |
FC-TSAO-0220M |
Honeywell |
K2LCN-4 51401551-400 |
Honeywell |
FS-TPSU-2430 |
Honeywell |
FC-SAO-022M |
Honeywell |
IP-PI-OI24 |
Honeywell |
FS-SICC-0001/L3(4213500) |
Honeywell |
FC-SAI-1620 |
Honeywell |
FTA-T-21 |
Honeywell |
FS-SICC-0001/L10 |
Honeywell |
FC-RUSIO-3224 |
Honeywell |
FTA-T-20 |
Honeywell |
FC-USI-0001 V1.3 |
Honeywell |
51304754-150 MC-PAIH03 |
Honeywell |
FTA-T-15 |
Honeywell |
FC-USI-0001 V1.0 |
Honeywell |
FC-QPP-0002 V2.0 |
Honeywell |
FTA-T-02 |
Honeywell |
FC-TSRO-0824 V1.1 |
Honeywell |
51202329-732 |
Honeywell |
FS-USI-0001 |
Honeywell |
FC-TSHART-1620M |
Honeywell |
51202329-616 |
TDC 3000 Control System Introduction
The Enhanced Micro TDC 3000 Control System is an extremely compact, yet fully functional control system in the Honeywell TDC 3000X family. Figure 1-1 is an illustration of the basic Enhanced Micro TDC 3000 Control System. This control system communicates to the process via the Honeywell Universal Control Network (UCN). The process can be monitored and controlled by Program Manager or Advanced Process Manager.
General Description
The Enhanced Micro TDC 3000 Control System consists of two cabinets (also called "towers") which together contain the electronics, two cartridge disk drives, and a history module. The cabinet electronics support up to four color monitors, four keyboards, and optional touchscreens or trackballs. A printer is also connected to the system. Two electronics modules, one housed in each tower, provide all of the electronics for the Enhanced Micro TDC 3000 Control System (excluding peripherals). These modules, called Multinode Modules, are each capable of holding four TDC 3000 Nodes. Although the Advanced Process Manager (APM) is part of the Enhanced Micro TDC 3000 Control System, it is not described in this manual. See subsection 1.5 for a list of publications that discuss the Advanced Process Manager and the Universal Control Network (UCN)
TDC 3000 Control System features
The Enhanced Micro TDC 3000 models have the following characteristics and features:
• Only “version A” models (with 1 US node) are offered as the base system. The old”version B” models (with 2 US nodes) are no longer offered as a base system (the old”version B” models are equivalent to a “version ” model, plus an optional US node).
• All nodes are equipped with K2LCN processors.
• The base models will include an Advanced Process Manager (APM) as standard equipment.
• The minimum AM processor memory is 4 MW (the base system models are offered with AM nodes in two memory sizes — either 4 MW or 8 MW).
• The US included with the base system has 6 MW processor memory and supports‘Universal’ personality.
• The US node in the base system is equipped with dual 150 MB Bernoulli cartridge ‘multi-drives’. The new multi-drives’ are compatible with 35 MB
• The HM included in the base system has a 875 MB hard drive and 3 MW processor memory.
• The NIM included in the base system has 3 MW processor memory.
• The US monitor and printer are not included with the “R500-Ready” Enhanced Micro TDC 3000 models. These two peripherals have their own model numbers and must be ordered separately. The operator’s keyboard, however, is included with the base system model.
• The Enhanced Micro TDC 3000 models will not support UXS or AXM. There are currently no plans to provide UXS or AXM options with the system.
