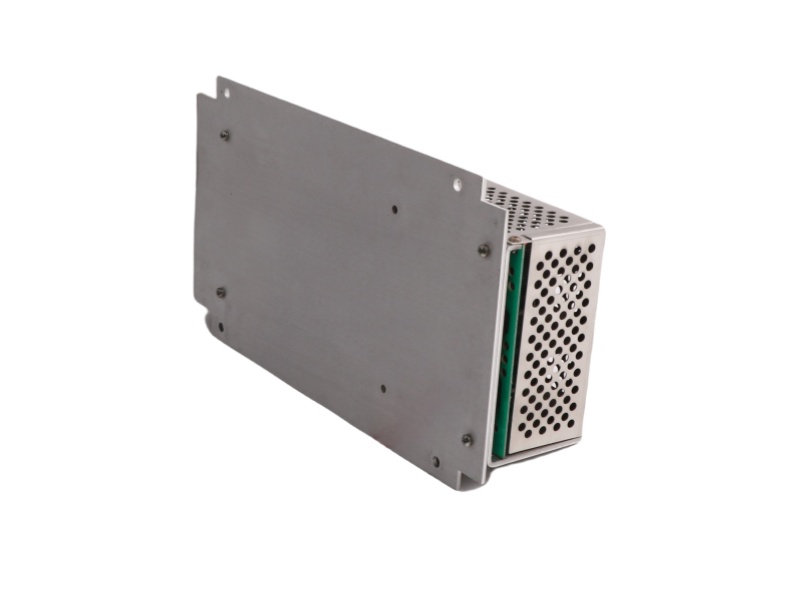

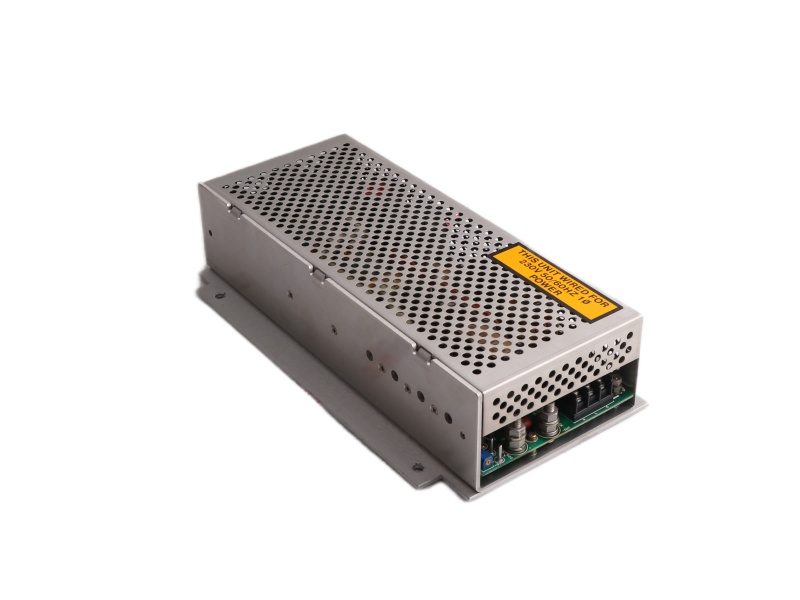

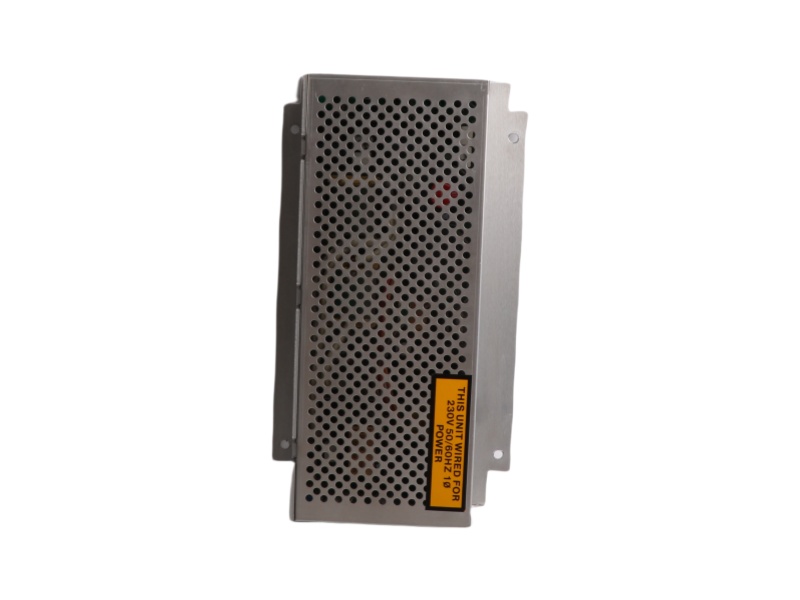

IP-PI-OI24 Product datasheet
|
Model number: |
IP-PI-OI24 |
|
Module Type： |
Advanced Process Control Module |
|
Manufacture: |
HONEYWELL |
|
Condition： |
Brand New |
|
Range of Product: |
TDC 3000 |
|
Lead time： |
In Stock |
|
Weight: |
2.8kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
17.4x7.2x30.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
IP-PI-OI24 Functional Description
The IP-PI-OI24 Advanced Process Control Module is specifically designed to provide superior performance in demanding industrial environments. With its robust construction, this module guarantees long-lasting reliability, making it ideal for applications that require precise control and continuous monitoring.
Featuring a modular architecture, the IP-PI-OI24 Advanced Process Control Module seamlessly integrates with existing systems and supports a wide range of communication protocols, offering exceptional flexibility for various industries. Its high accuracy and rapid response time ensure efficient operation and prompt adjustments to dynamic conditions.
Crafted from high-quality materials, the IP-PI-OI24 Digital I/O Module is built to withstand extreme temperatures, dust, and other harsh environmental factors, ensuring reliable performance under challenging conditions.
Equipped with a MODBUS RTU interface, the IP-PI-OI24 Digital I/O Module facilitates smooth data exchange between the control system and other devices, enabling real-time monitoring and control in complex manufacturing environments.
Advanced safety features, such as protection against overcurrent and short circuits, make the IP-PI-OI24 Control Module a safe choice for industrial applications, ensuring personnel and equipment protection while maintaining high levels of efficiency.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Honeywell |
K4LCN-16 51403519-160 |
Honeywell |
FS-TSFIRE-1624 |
Honeywell |
FC-TSDO-0824 |
|
Honeywell |
K2LCN-8 51401551-801 |
Honeywell |
FS-TSDI-16UNI |
Honeywell |
FC-TSDI-16UNI |
|
Honeywell |
K2LCN-4 51402615-400 |
Honeywell |
FS-TSDI-1624 |
Honeywell |
FC-TSAO-0220M |
|
Honeywell |
K2LCN-4 51401551-400 |
Honeywell |
FS-TPSU-2430 |
Honeywell |
FC-SAO-022M |
|
Honeywell |
IP-PI-OI24 |
Honeywell |
FS-SICC-0001/L3(4213500) |
Honeywell |
FC-SAI-1620 |
|
Honeywell |
FTA-T-21 |
Honeywell |
FS-SICC-0001/L10 |
Honeywell |
FC-RUSIO-3224 |
|
Honeywell |
FTA-T-20 |
Honeywell |
FC-USI-0001 V1.3 |
Honeywell |
51304754-150 MC-PAIH03 |
|
Honeywell |
FTA-T-15 |
Honeywell |
FC-USI-0001 V1.0 |
Honeywell |
FC-QPP-0002 V2.0 |
|
Honeywell |
FTA-T-02 |
Honeywell |
FC-TSRO-0824 V1.1 |
Honeywell |
51202329-732 |
|
Honeywell |
FS-USI-0001 |
Honeywell |
FC-TSHART-1620M |
Honeywell |
51202329-616 |
TDC 3000 Control System Introduction
The Enhanced Micro TDC 3000 Control System is an extremely compact, yet fully functional control system in the Honeywell TDC 3000X family. Figure 1-1 is an illustration of the basic Enhanced Micro TDC 3000 Control System. This control system communicates to the process via the Honeywell Universal Control Network (UCN). The process can be monitored and controlled by Program Manager or Advanced Process Manager.
The Enhanced Micro TDC 3000 Control System consists of two cabinets (also called "towers") which together contain the electronics, two cartridge disk drives, and a history module. The cabinet electronics support up to four color monitors, four keyboards, and optional touchscreens or trackballs. A printer is also connected to the system. Two electronics modules, one housed in each tower, provide all of the electronics for the Enhanced Micro TDC 3000 Control System (excluding peripherals). These modules, called Multinode Modules, are each capable of holding four TDC 3000 Nodes. Although the Advanced Process Manager (APM) is part of the Enhanced Micro TDC 3000 Control System, it is not described in this manual. See subsection 1.5 for a list of publications that discuss the Advanced Process Manager and the Universal Control Network (UCN)
Advanced Features
As described above, the APM has the same functionality of the PM plus:
• Digital Input Sequence of Events (DISOE) processing
• Device Control Points
• Array Points for CL Programs
• Foreign device (serial) interface capability
• Larger Memory (over four times larger than the PM)
• String Variables
• Time Variables
