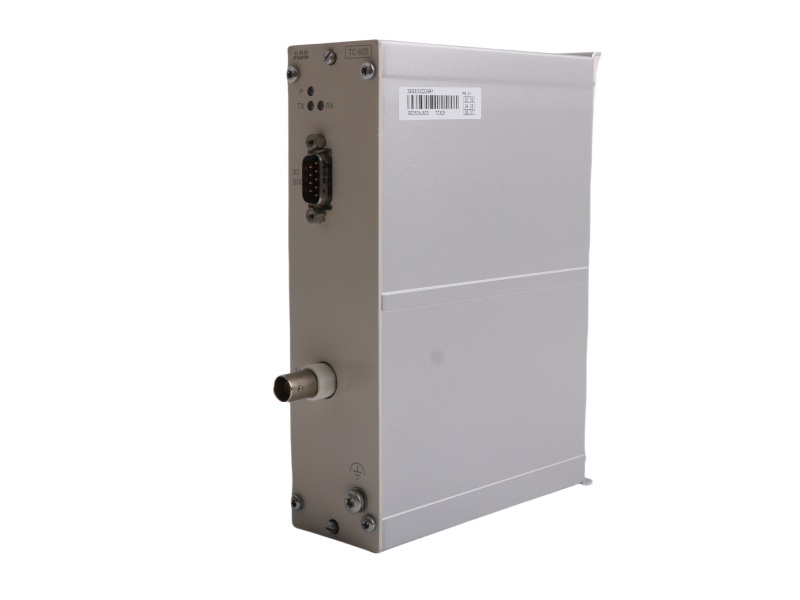

TC625 3BSE002224R1 Product datasheet
|
Model number: |
TC625 3BSE002224R1 |
|
Module Type： |
Coaxial Modem |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
Advant Fieldbus 100 |
|
Lead time： |
In Stock |
|
Weight: |
0.68kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.4x15x17.6cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TC625 3BSE002224R1 Functional Description
The TC625 3BSE002224R1 Coaxial Modem is an essential component of the Advant Fieldbus 100 system, facilitating reliable data transmission over coaxial media. It connects various devices such as the Advant Controller 400 Series and AdvaSoft for Windows to the Fieldbus 100 via communication interfaces like CI520, CI522, or CI526. When using the CI526 interface, one or two TC625 3BSE002224R1 Coaxial Modem are required for coaxial media communication, ensuring stable data transfer. Additionally, both the CI522 and CI520 interfaces can connect to the TC625 3BSE002224R1 Coaxial Modem for coaxial communication. For CI527 interfaces, which are designed for twisted pair media, a TC513 repeater modem is necessary for coaxial connections, but the TC625 3BSE002224R1 Coaxial Modem remains crucial when connecting via coaxial media. The installation of the TC625 3BSE002224R1 Coaxial Modem involves connecting it to the CI526 interface board and the SB512 power supply unit using the TK549 connection cable, further reinforcing its role in ensuring robust and efficient communication in the network.
