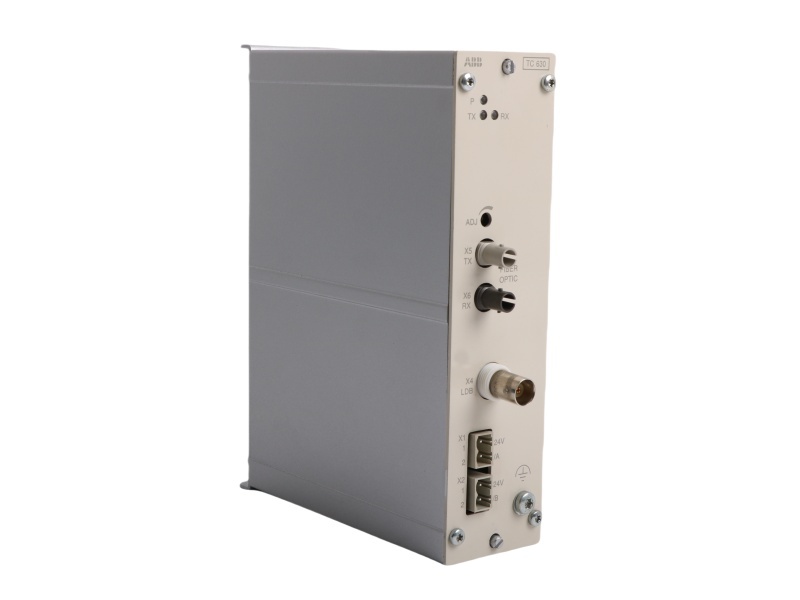

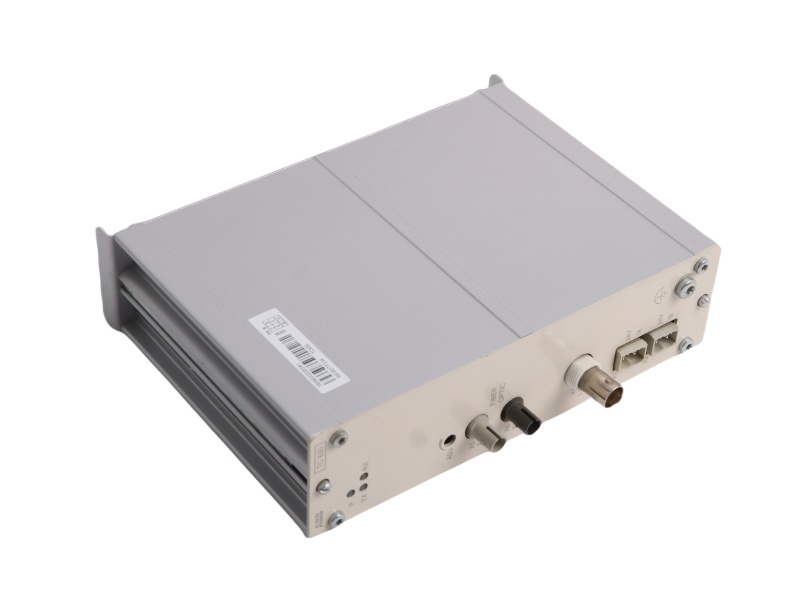

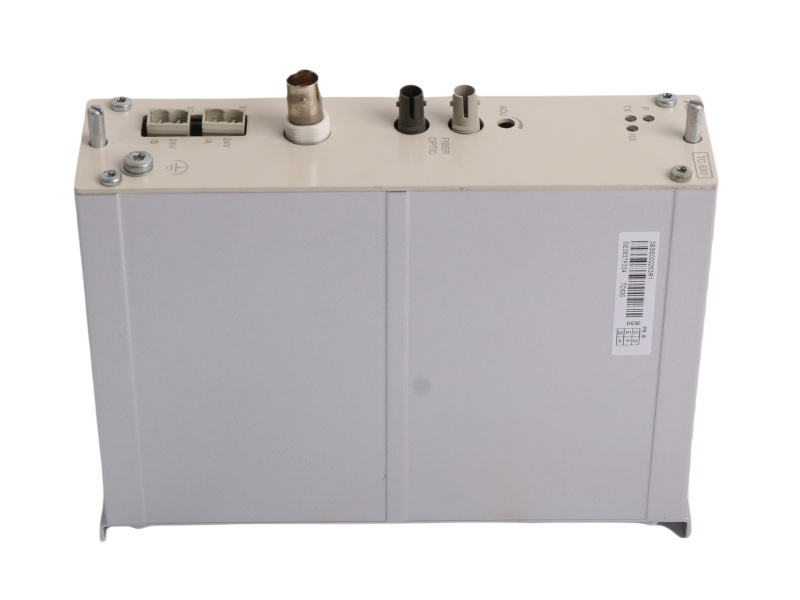

TC630 3BSE002253R1 Product datasheet
|
Model number: |
TC630 3BSE002253R1 |
|
Module Type： |
Communication Module |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
Advant Fieldbus 100 |
|
Lead time： |
In Stock |
|
Weight: |
0.7kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.4x15x17.6cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
TC630 3BSE002253R1 Functional Description
The optical cable modem TC630 provides a point-to-point duplex optical cable connection between two Advant Fieldbus 100 coaxial networks. For the function of
the bus the TC630 is total transparent. Figure 100 shows a TC630. Since it provides a point-to-point connection, it always requires two TC630 to realize a connection, see Figure 8. Each Optical Cable Modem TC630 must be calculated as 150 meters cable equivalent.
Part of the Advant Fieldbus 100 built up by one media type, coaxial twisted pair or optical media. An Advant Fieldbus 100 can be built up by several segments where the bus segments are connected with a TC513/TC514/TC515/TC630 modem.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
