Allen-Bradley 1756-SYNCH Synchlink Communication Module

Allen-Bradley 1756-SYNCH
Allen-Bradley 1756-SYNCH
Allen-Bradley 1756-SYNCH

1756-SYNCH Product datasheet

Model number:

1756-SYNCH



Module Type:

Synchlink Communication Module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.3kg



HS CODE:

8537101190

Dimension:

3.6x13x14cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-SYNCH Functional Description

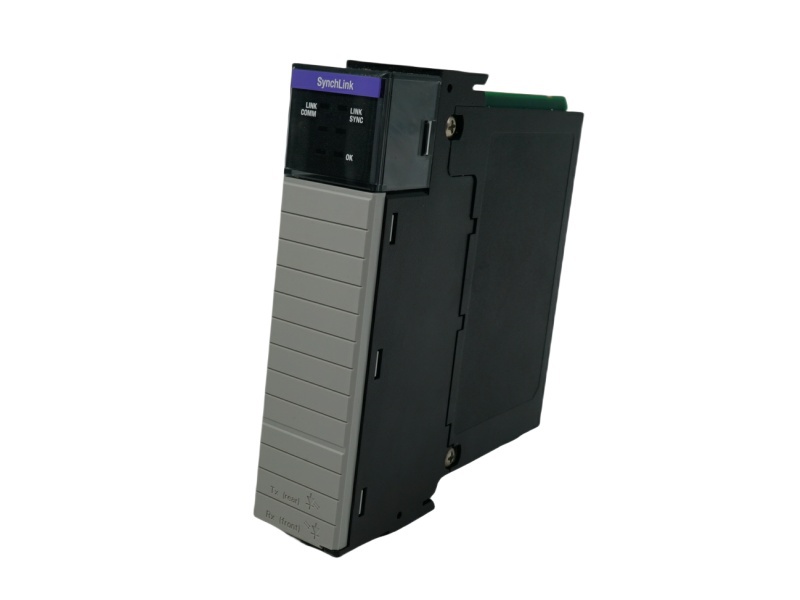

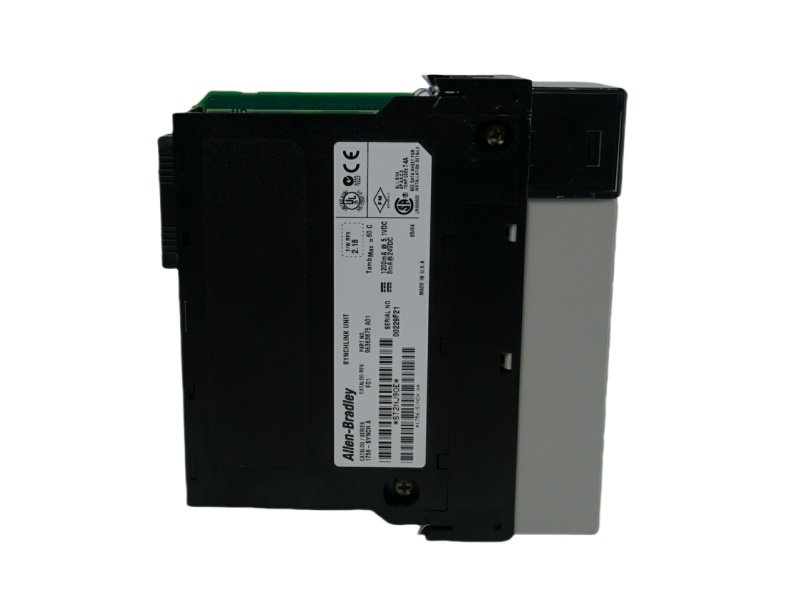

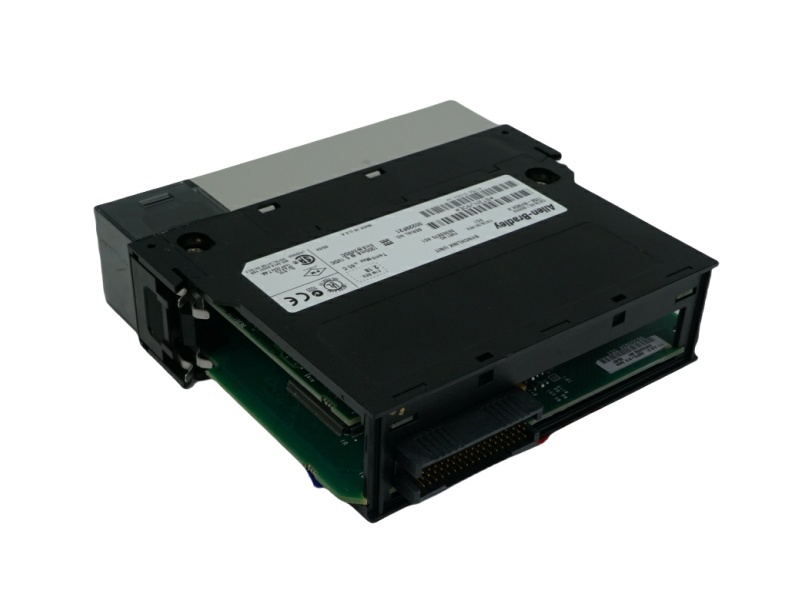

The Allen-Bradley 1756-SYNCH is a ControlLogix SynchLink Communication Module designed for coordinated drive control and motion distribution in industrial automation systems. It facilitates time synchronization and data broadcasting, ensuring seamless communication between multiple ControlLogix chassis and their respective controllers. The 1756-SYNCH ControlLogix SynchLink Communication Module uses SynchLink fiber-optic cables for high-speed data transfer, with a data rate of 5 Mbps, supporting precise synchronization across different chassis.



With its ability to coordinate system time, the 1756-SYNCH ControlLogix SynchLink Communication Module ensures that motion axis data can be shared between controllers in separate chassis. The module operates with a frame speed of 50 μs, using a specific data frame structure—3 bytes for flags, 1 byte for control, 24 bytes for data, and 2 bytes for the CRC field. The 1756-SYNCH ControlLogix SynchLink Communication Module also offers robust physical specifications, drawing 1200 mA at 5.1V DC and 3 mA at 24V DC, with 6.2 W of power dissipation and 21.2 BTU/hr thermal dissipation.



Equipped with two fiber-optic cable ports, the 1756-SYNCH ControlLogix SynchLink Communication Module supports cable lengths from 1 to 300 meters, using 200-230 micron HCS cables. It is compatible with both standard and redundant power supplies, offering flexibility for various system configurations. The module is designed for clean, dry industrial environments, operating within a temperature range of 0 to 60°C and capable of withstanding 30g operating shocks.



For enhanced performance, accessories like the 1403-CFxxx fiber-optic cable and the 200 μm HCP-M0200T V01RK simplex cable can be used with the 1756-SYNCH ControlLogix SynchLink Communication Module. This module is a crucial component for motion control and time synchronization in distributed ControlLogix systems.


If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1797-TB3

Allen Bradley

1794-OB16P

Allen Bradley

1794-IE4XOE2

Allen Bradley

1797-IE8NF

Allen Bradley

1794-OB16

Allen Bradley

1794-IE4X0E2

Allen Bradley

1794-VHSC

Allen Bradley

1794-OA8I

Allen Bradley

1794-IB8

Allen Bradley

1794-TBN

Allen Bradley

1794-L34

Allen Bradley

1794-IB16XT

Allen Bradley

1794-TB3S

Allen Bradley

1794-IV16

Allen Bradley

1794-IB16D

Allen Bradley

1794-TB2

Allen Bradley

1794-IRTB

Allen Bradley

1794-IB16

Allen Bradley

1794-PS1

Allen Bradley

1794-IRT8XT

Allen Bradley

1794-IA8

Allen Bradley

1794-OF41

Allen Bradley

1794-IM8

Allen Bradley

1794-AENTR

Allen Bradley

1794-OB8EP

Allen Bradley

1794-IF4I

Allen Bradley

1793-OB16P

Allen Bradley

1794-OB16PXT

Allen Bradley

1794-IE8H

Allen Bradley

1791-OB32







ControlLogix System Overview


The ControlLogix system provides discrete, drives, motion, process, and safety control together with communication and state-of-the-art

I/O in a small, cost-competitive package. The system is modular, so you can design, build, and modify it efficiently with significant savings in

training and engineering.

A simple ControlLogix system consists of a standalone controller and I/O modules in one chassis. For a more comprehensive system, use the

following:

• Multiple controllers in one chassis

• Multiple controllers joined across networks

• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O links

• Select ControlLogix products are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive

environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.

The ControlLogix controller is part of the Logix 5000™ family of controllers.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links. ControlLogix controllers

can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and

many third-party process and device networks.

• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.

Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over

networks) but operate independently.

• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the

chassis. ControlLogix 5580 controllers have a built-in EtherNet/IP port.
