1785-V80B Product datasheet
Model number: |
1785-V80B |
|
Module Type: |
VME Processor Card |
Manufacture: |
Allen-Bradley |
|
Condition: |
Brand New |
Range of Product: |
PLC-5 |
|
Lead time: |
In Stock |
Weight: |
0.7kg |
|
HS CODE: |
8537101190 |
Dimension: |
4.1x18.8x26.2cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
July 31, 2011 |
|
Communication Service: |
Ethernet router |
1785-V80B Functional Description

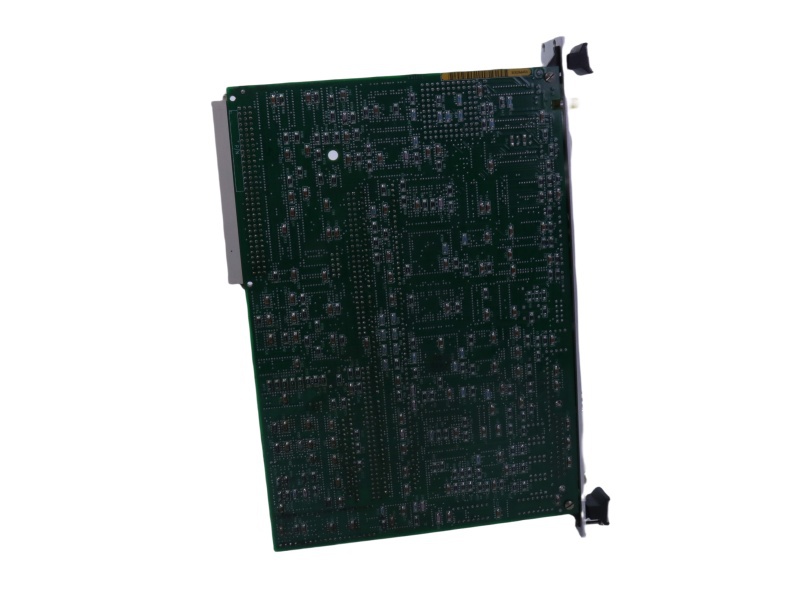

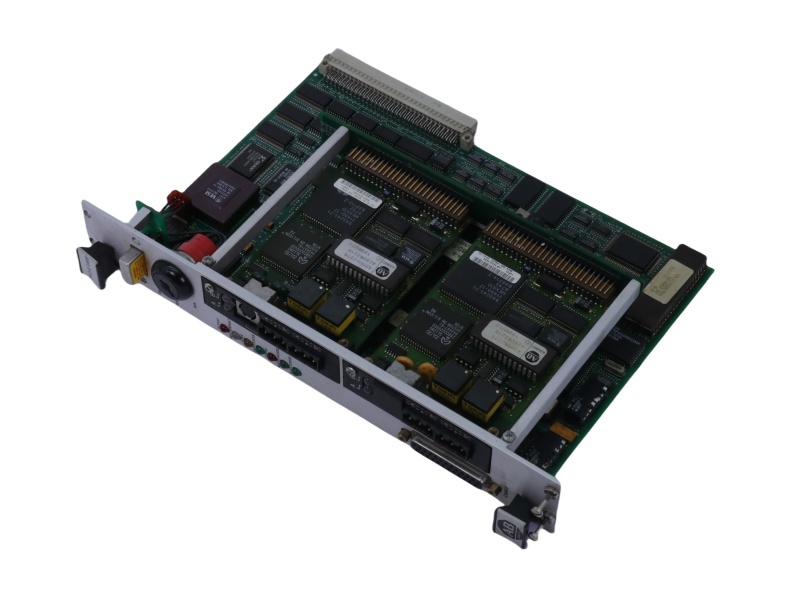

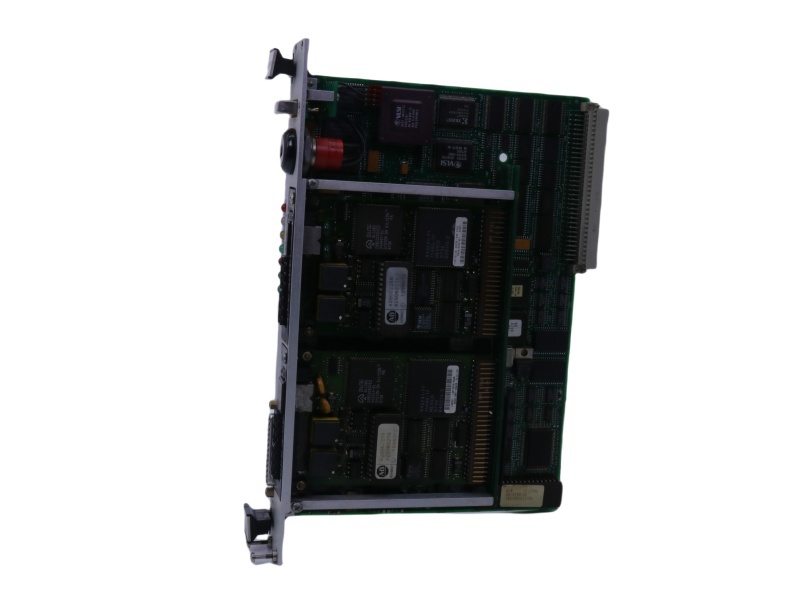

The 1785-V80B processor card is part of the PLC-5 series, offering compatibility with the C.1 VMEbus specification, allowing direct connection to VMEbus systems and integration with other VMEbus CPU modules. Unlike other PLC-5 processors, the 1785-V80B processor card does not use EEPROM memory modules.
With a memory capacity of up to 100,000 words, the 1785-V80B processor card can manage up to 32,000 words per data table file and supports 2,944 I/O points, including 2944 analog I/O. Its scan time is 0.5 ms per 1000 words for bit logic or 2 ms per 1000 words in typical conditions. The processor supports transmission rates of 57.6 kbps, 115.2 kbps, and 230 kbps, with a 0.5 ms extended local I/O scan time.
The 1785-V80B processor card has four configurable communication ports for DH+ or remote I/O connections. It can connect up to 23 I/O racks and 92 remote I/O chassis, but does not support extended local I/O chassis. Additionally, it features an RS232 port for serial communication.
For programming, the 1785-V80B processor card runs ladder logic programs from the enhanced PLC-5/40 processor with the same scan time. It also introduces a VME status file to control and monitor VMEbus data, along with extended Ladder MSG instructions for VMEbus data transfers and interrupts. The 1785-V80B processor card can be programmed via DH+, serial communication, or a VMEbus backplane connection.
If you have other request contact our team to get customized service
Allen Bradley |
1797-TB3 |
Allen Bradley |
1794-OB16P |
Allen Bradley |
1794-IE4XOE2 |
Allen Bradley |
1797-IE8NF |
Allen Bradley |
1794-OB16 |
Allen Bradley |
1794-IE4X0E2 |
Allen Bradley |
1794-VHSC |
Allen Bradley |
1794-OA8I |
Allen Bradley |
1794-IB8 |
Allen Bradley |
1794-TBN |
Allen Bradley |
1794-L34 |
Allen Bradley |
1794-IB16XT |
Allen Bradley |
1794-TB3S |
Allen Bradley |
1794-IV16 |
Allen Bradley |
1794-IB16D |
Allen Bradley |
1794-TB2 |
Allen Bradley |
1794-IRTB |
Allen Bradley |
1794-IB16 |
Allen Bradley |
1794-PS1 |
Allen Bradley |
1794-IRT8XT |
Allen Bradley |
1794-IA8 |
Allen Bradley |
1794-OF41 |
Allen Bradley |
1794-IM8 |
Allen Bradley |
1794-AENTR |
Allen Bradley |
1794-OB8EP |
Allen Bradley |
1794-IF4I |
Allen Bradley |
1793-OB16P |
Allen Bradley |
1794-OB16PXT |
Allen Bradley |
1794-IE8H |
Allen Bradley |
1791-OB32 |
Classic PLC-5 Family Processor Features
From the family of PLC-5 processors, you can choose the processor(s) that you need for your application. Features common to all Classic PLC-5
processors are:
The PLC-5 processor in adapter mode acts as a remote station to the supervisory processor. The adapter-mode PLC-5 processor can monitor and control its processor-resident local I/O while communicating with the supervisory processor via a remote I/O link.
