UR8FH Product datasheet
|
Model number: |
UR8FH |
|
Module Type： |
UR Control Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.84kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x19.5x17.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
UR8FH Functional Description

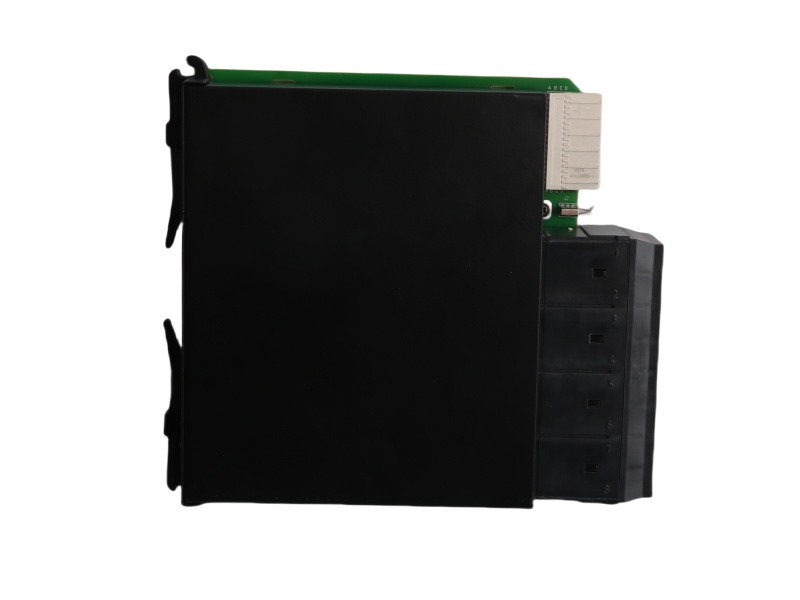

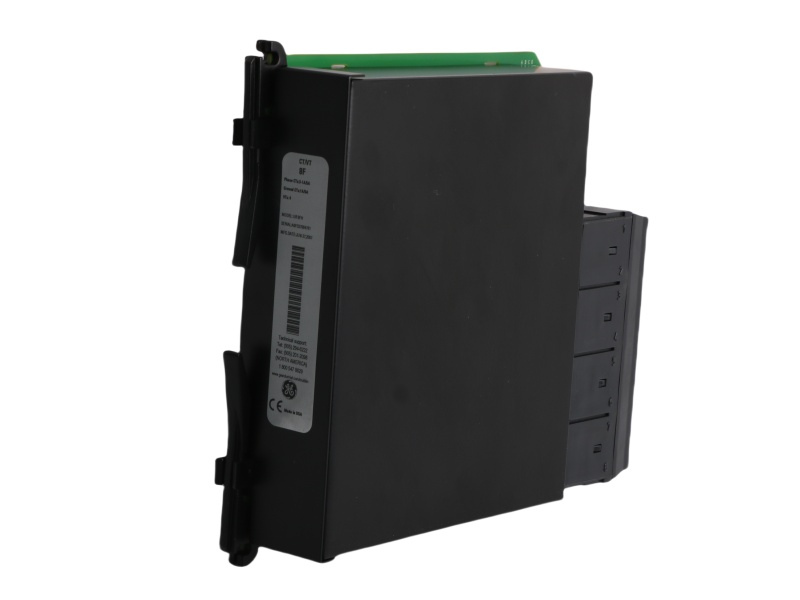

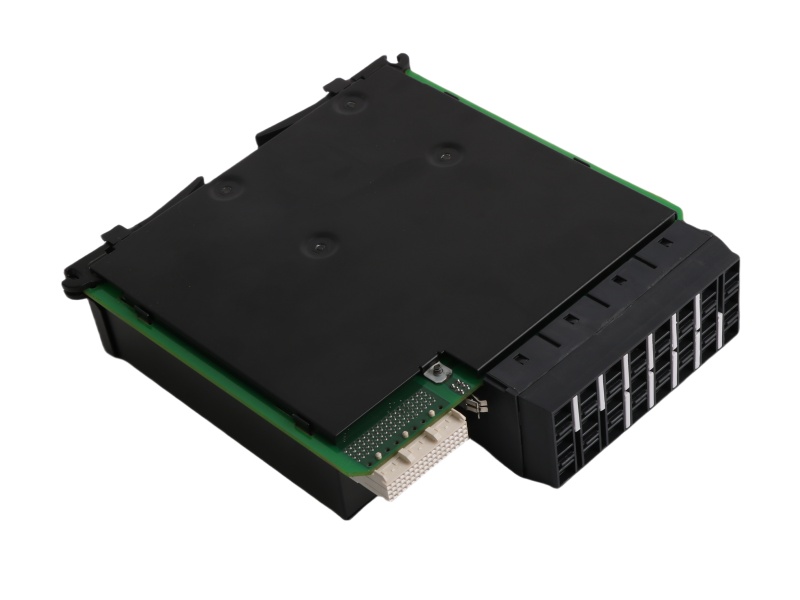

The General Electric (GE) Multilin UR8FH is a versatile current and voltage transformer (CT/VT) module designed to enhance the functionality of the Universal Relays series. This module is crucial for electrical systems as it allows precise monitoring and control of current and voltage, ensuring system reliability and protection.
The GE UR8FH Multilin UR Control Module features three 1A/5A phase current measurement inputs and one ground current input, offering comprehensive current monitoring. Additionally, it includes four voltage transformer terminals that provide accurate voltage scaling, allowing for precise voltage measurement. The UR8FH is designed to downscale both current and voltage to manageable levels, providing the necessary data for relay operations.
The GE UR8FH Multilin Processor Module Cpu is adaptable, with voltage or contact inputs available for use across different channels. This flexibility allows users to configure the system according to their specific needs. Whether it's for power generation or distribution, the UR8FH ensures optimal performance by enabling effective system monitoring.
With its compact design and ease of integration, the UR8FH is an essential component for GE's Universal Relays series. It is a reliable solution for industries seeking accurate monitoring and control over their electrical infrastructure. The UR8FH High-performance Relay Module is a testament to GE's commitment to providing advanced technology that improves the safety and efficiency of electrical systems.
