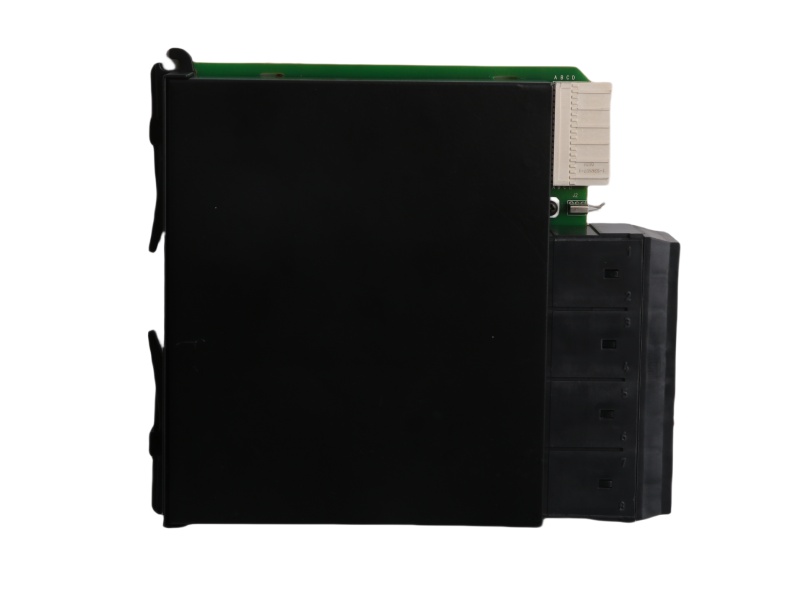

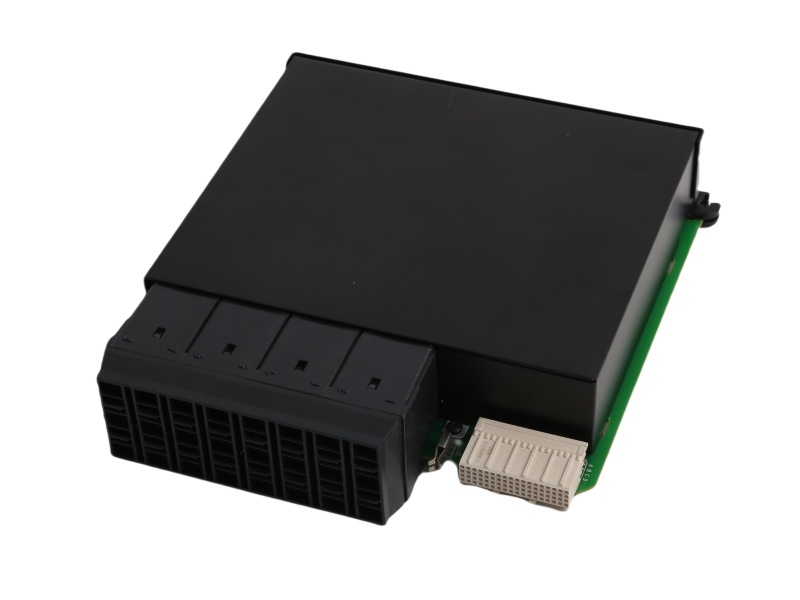

UR8HH Product datasheet
|
Model number: |
UR8HH |
|
Module Type： |
UR Control Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.84kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x19.5x17.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
UR8HH Functional Description
The General Electric (GE) UR8HH module is a vital component of the company’s Universal Relay (UR) series, specifically designed for the protection, control, and monitoring of electrical power systems. The UR8HH is a CT/VT (current transformer/voltage transformer) module, equipped with 1A/5A ground current transformers and three 1A/5A phase CTs, ensuring precise system monitoring and protection functions.
GE UR8HH Multilin UR Control Module is widely used in the protection and control of equipment such as transformers, generators, motors, feeders, and busbars. Key features of the UR8HH module include overcurrent protection, undervoltage, frequency protection, differential protection, ground fault protection, and thermal overload protection. Additionally, the UR8HH provides advanced functionalities like arc flash protection, depending on configuration.
The General Electric UR8HH module is designed to offer accurate, reliable, and flexible protection, making it suitable for industrial, commercial, and utility applications. Its modular structure allows for customization based on specific application requirements, ensuring it meets various operational conditions and protection needs.
In summary, the UR8HH High-performance Relay Module is an essential component of the Universal Relay series, offering comprehensive protection, control, and monitoring capabilities to ensure the safe and reliable operation of electrical power systems.
