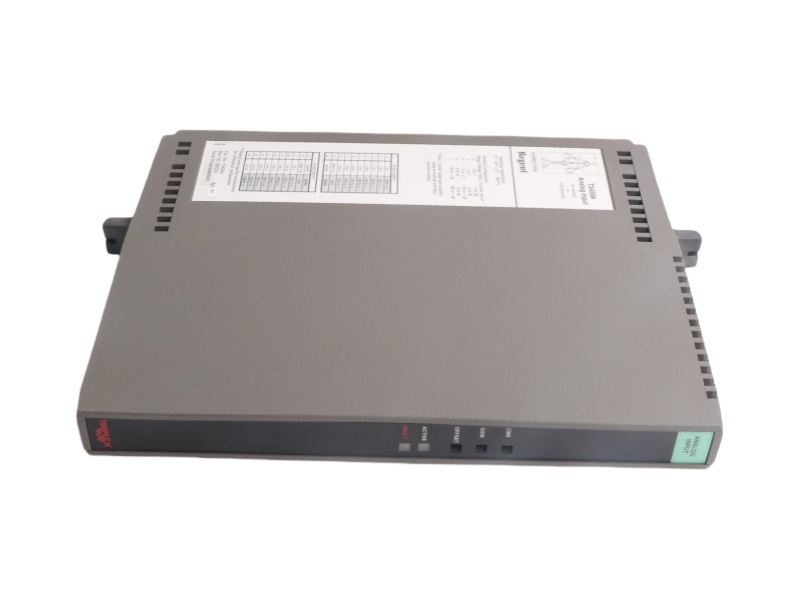

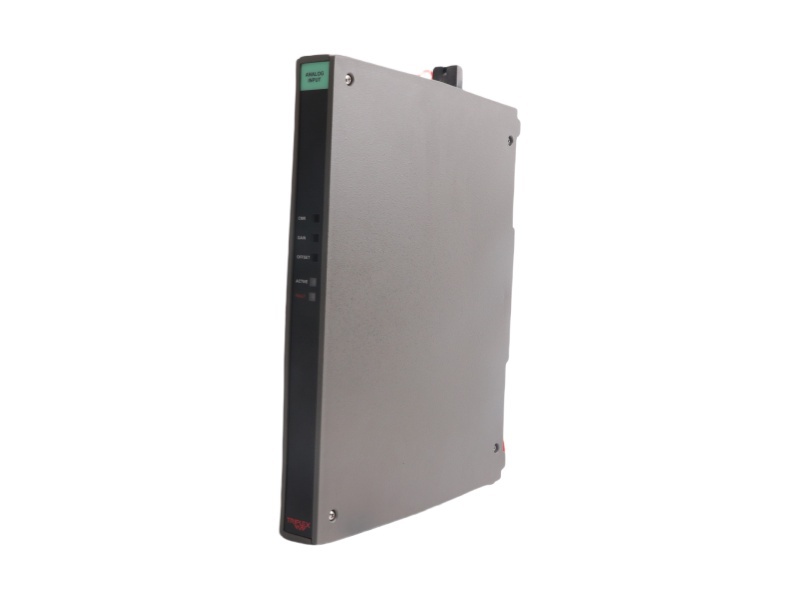

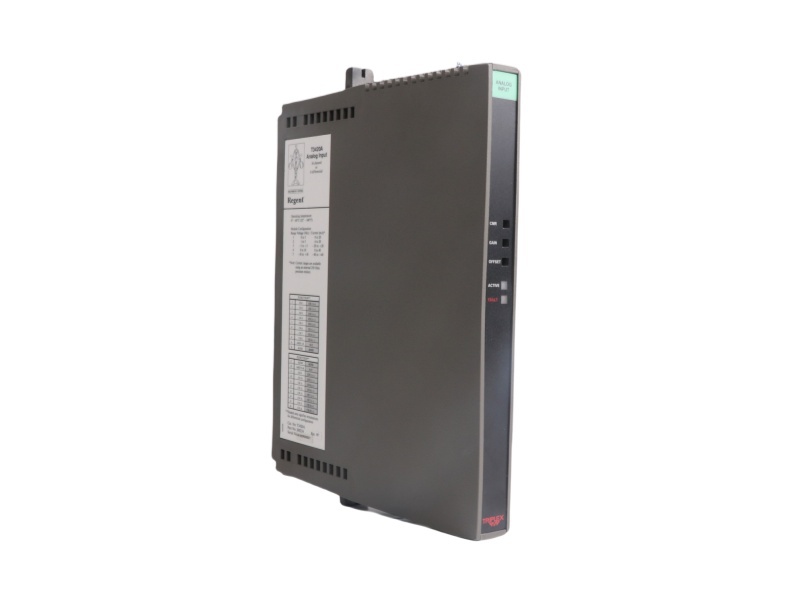

T3420A Product datasheet
|
Model number: |
T3420A |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
ICS Triplex |
|
Condition： |
Brand New |
|
Range of Product: |
ICS Regent Control System |
|
Lead time： |
In Stock |
|
Weight: |
1.52 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.2x26.5x36cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
T3420A Functional Description
The T3420A Analog Input from ICS Triplex is engineered for robust performance in harsh industrial environments, ensuring long-lasting reliability and durability. Built with high-quality materials, the T3420A Analog Input is designed to withstand the stresses of industrial use, offering dependable operation even under challenging conditions. Its compact design allows for easy integration into existing control systems, ensuring seamless performance without compromising on space or efficiency.
Equipped with a high-resolution analog-to-digital converter, the T3420A Processor Module provides exceptional accuracy and speed in data acquisition, making it ideal for applications that require real-time monitoring and control. It supports a wide range of sensors, offering flexibility for diverse industrial settings and applications.
The T3420A Processor Module supports MODBUS RTU communication protocol, enabling seamless integration with other devices in the network. This feature enhances system interoperability and ensures compatibility with a broad range of control protocols, making it suitable for various industries.
Designed with user convenience in mind, the T3420A Analog Input Module features intuitive software tools for simple setup and configuration. This streamlines installation and maintenance, reducing downtime and improving operational efficiency.
Backed by comprehensive technical support, the T3420A Monitored Digital Input Modules combines precision, reliability, and ease of use, making it an ideal solution for critical industrial control applications.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ICS Triplex |
T3480 |
ICS Triplex |
T8850C |
ICS Triplex |
T8431 |
|
ICS Triplex |
T3420A |
ICS Triplex |
T8850 |
ICS Triplex |
T8403 |
|
ICS Triplex |
T3419 |
ICS Triplex |
T8830C |
ICS Triplex |
T8311 |
|
ICS Triplex |
T3411F |
ICS Triplex |
T8830 |
ICS Triplex |
T8310C |
|
ICS Triplex |
T3401 |
ICS Triplex |
T8800 |
ICS Triplex |
T8232 |
|
ICS Triplex |
T3310 |
ICS Triplex |
T8480 |
ICS Triplex |
T8151B |
|
ICS Triplex |
T9432 |
ICS Triplex |
T8461CX |
ICS Triplex |
T8122 |
|
ICS Triplex |
T9451 |
ICS Triplex |
T8461C |
ICS Triplex |
T8110B |
|
ICS Triplex |
T9310-02 |
ICS Triplex |
T8461 |
ICS Triplex |
T7481A |
|
ICS Triplex |
T9300 |
ICS Triplex |
T8431C |
ICS Triplex |
T3481A |
ICS Regent® Descripution
Analog input modules provide data input for a maximum of 16 field analog signals per module. Two types of modules are available: one for high noise immunity (60 Hz rejection) and one with low noise immunity (fast response).
Features
· Sixteen single-ended or eight differential voltage inputs. Interface to current inputs using external 250 ohm resistors for current to voltage conversion (resistors are provided as part of the analog input termination blocks, catalog number T3325- XX).
· Fault tolerant operation when connected in parallel with redundant modules of the same type.
· Hot replaceable.
· Jumper-selectable input ranges.
· 12-bit analog to digital resolution (1 part in 4096).
· Sample rate of all channels in 1.8 msec (differential) or 3.6 msec (single-ended).
· 60 Hz rejection (T3420A) and fast response (T3420AF) versions available.
· 2500 volt isolation between analog and digital logic circuits.
· Individual front panel indicators on each module show module active and fault status.
· TÜV certified for safety, Risk Class
