ICS Triplex T8850 Analog Digital Output FTA

Rockwell T8850
Rockwell T8850
Rockwell T8850

T8850 Product datasheet

Model number:

T8850



Module Type:

Analog Digital Output FTA

Manufacture:

Rockwell



Condition:

Brand New

Range of Product:

ICS Triplex system



Lead time:

In Stock

Weight:

0.62kg



HS CODE:

8537101190

Dimension:

30.2x12.5x6.2cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Dec 31,2018



Communication Service:

Ethernet router



T8850 Functional Description

The T8850 digital output module from ICS TRIPLEX is a cornerstone of modern industrial automation. With its 40 channels and 24V dc voltage range, this module ensures reliable digital signal transmission and control.

Designed for rugged industrial environments, the T8850 digital output module boasts a compact and durable construction. Its advanced technology enhances system efficiency and minimizes downtime, contributing to increased operational productivity.

Whether you're automating complex manufacturing processes or simpler setups, the T8850 digital output module offers exceptional value and performance. Its seamless integration with existing industrial control systems makes it a wise investment for the future of your operations.

By choosing the T8850 digital output module, you're selecting a digital output module that delivers robust performance and reliability in demanding industrial conditions. Its 40 channels and 24V dc voltage range provide efficient digital signal transmission and control.

Experience the benefits of the T8850 digital output module. Its compact design and durable construction make it ideal for harsh industrial environments.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




ICS Triplex

T9881

ICS Triplex

T8850C

ICS Triplex

T8431

ICS Triplex

T9852

ICS Triplex

T8850

ICS Triplex

T8403

ICS Triplex

T9851

ICS Triplex

T8830C

ICS Triplex

T8311

ICS Triplex

T9832

ICS Triplex

T8830

ICS Triplex

T8310C

ICS Triplex

T9802

ICS Triplex

T8800

ICS Triplex

T8232

ICS Triplex

T9482

ICS Triplex

T8480

ICS Triplex

T8151B

ICS Triplex

T9432

ICS Triplex

T8461CX

ICS Triplex

T8122

ICS Triplex

T9451

ICS Triplex

T8461C

ICS Triplex

T8110B

ICS Triplex

T9310-02

ICS Triplex

T8461

ICS Triplex

T7481A

ICS Triplex

T9300

ICS Triplex

T8431C

ICS Triplex

T3481A

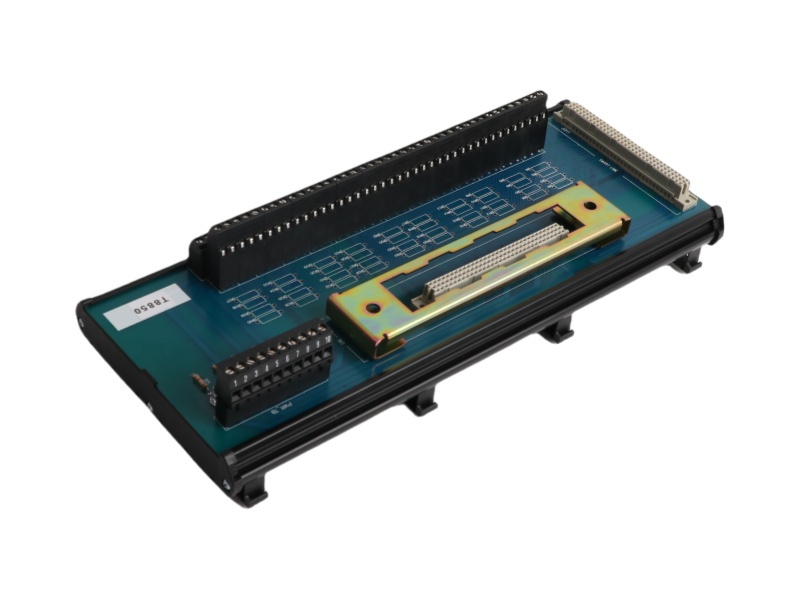

Trusted 40 Channel Analogue or Digital Output FTA

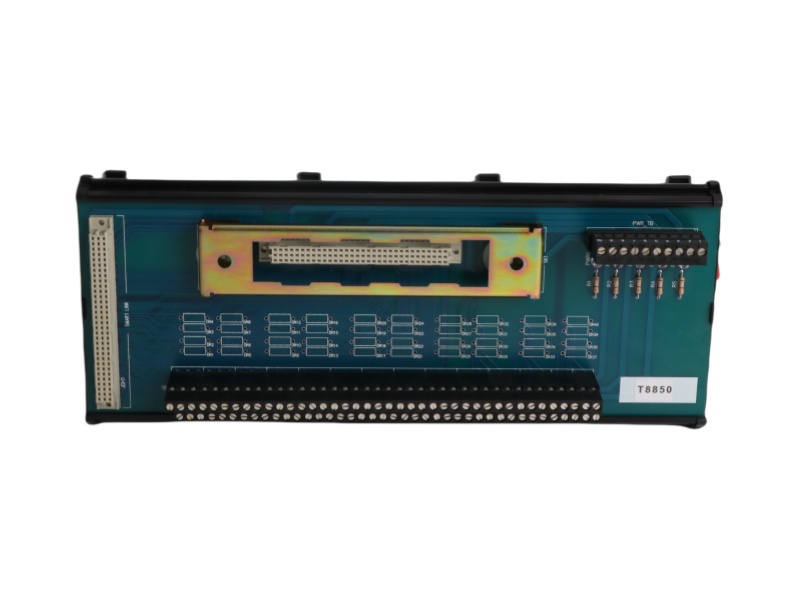

The Trusted® 40 Channel Analogue Output or Digital Output Field Termination Assembly (FTA) is designed to act as the main interface between the Trusted Triple Modular Redundant (TMR) 24 Vdc Digital Output Module T8451, Trusted Triple Modular Redundant (TMR) 24/48 Vdc Digital Output Module T84611 or Trusted TMR Analogue Output Module T8480 and the field device.



Trusted 40 Channel Analogue or Digital Output FTA Features


• 40 output channels per FTA.

• Industry standard field device connections (2-wire).

• Standard DIN rail compatibility.

• Screw clamp terminals on both field and power.

• Simple installation and connection.

• 24 Vdc operation.

• SmartSlot connection for ‘one to many’ hot replacement of output modules.

• Five isolated groups of eight channels.

• On-board LED indication of field power supply.

• Field terminal wire size allowance 12 AWG to 28 AWG.



Recommended proof test methods


Calibration check procedure:24V DC digital outputs

Step A - Set the current to the AI channel 4 mA, verify that the input value is in the range -41 to +41 counts.

Step B - Set the current to the AI channel 12 mA, verify that the input value is in the range 2007 to 2089 counts.

Step C - Set the current to the AI channel 20 mA, verify that the input value is in the range 4055 to 4137 counts.

Step D – Return to Specific Method.



This test is required for all 24V DC DO modules or DC powered NO Contact where Normally De-energized (Energize to Trip) channels (T8850 when used with the T8451, T8461, or T8891 when used with the T8842) are used for Safety-Related Outputs used where the Proof Test frequency >> frequency of Demands. The purpose of this test is to verify that the diodes used for OR’ing the two Field Power sources are not Open circuit, therefore does not constitute a potential undetected dangerous failure. The method described here is the recommended method to verify that neither of the diodes used to OR the 24V DC field supply to a specific T8850 FTA, or the DC supply feeding NO Contact outputs is open circuit. It is assumed that this methodology will be incorporated into a Proof Test procedure that includes other elements of Proof Testing and general proof test requirements as defined in IEC61511.

Method:

Step 1 - If performing this test on a live system, it may be necessary to employ a method external to the Trusted logic solver to mechanically or electrically force any Normally Energized (De Energize to Trip) outputs associated with final elements on the FTA under test into their normal operating state. If not, proceed to Step 2.

Step 2 – Turn off the ‘A’ field supply at an appropriate isolation or termination point and verify that the diode related to ‘B’ supply is correctly providing 24V DC to each power group on the FTA under test.

NOTE: Although strictly NOT required from a Proof Test perspective, a secondary test can be performed while the ‘A’ Power source is turned off (disconnected) to verify that the diode associated with the ‘A’ supply is not ‘Short Circuit’. With 1k ohm resistor connected in series with the meter, measure the current (in mA) from the supply side of the diode to 0V and the current should be << 24 mA if the diode is correctly preventing backfeed of the ‘B’ supply (there will be a small leakage current, so it may not be 0 mA).

Step 3 – Return the ‘A’ field supply into service.



Step 4 – Turn off the ‘B’ field supply at an appropriate isolation or termination point and verify that the diode related to ‘A’ supply is correctly providing 24V DC to each power group on the FTA under test.
