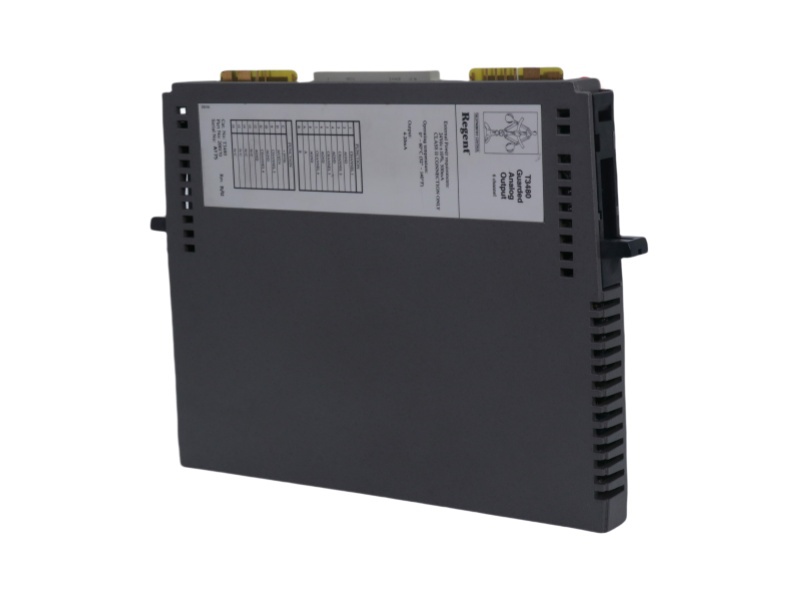

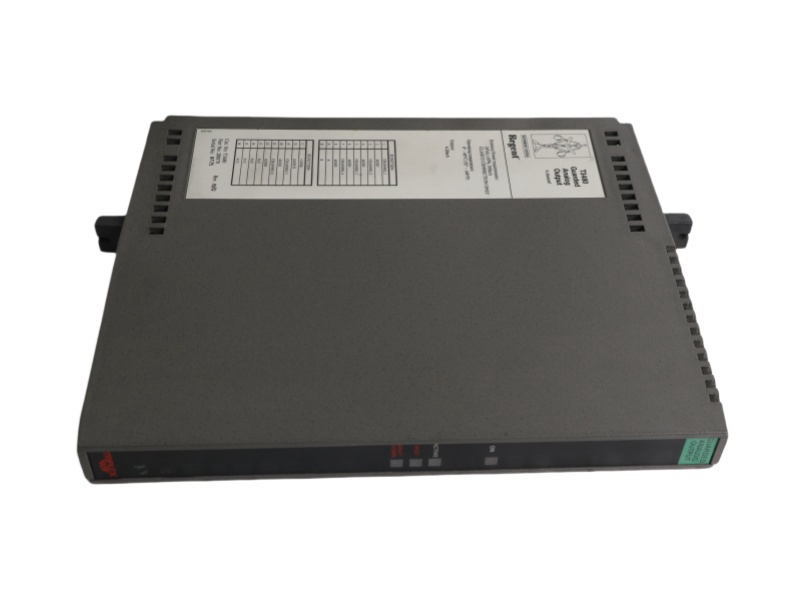

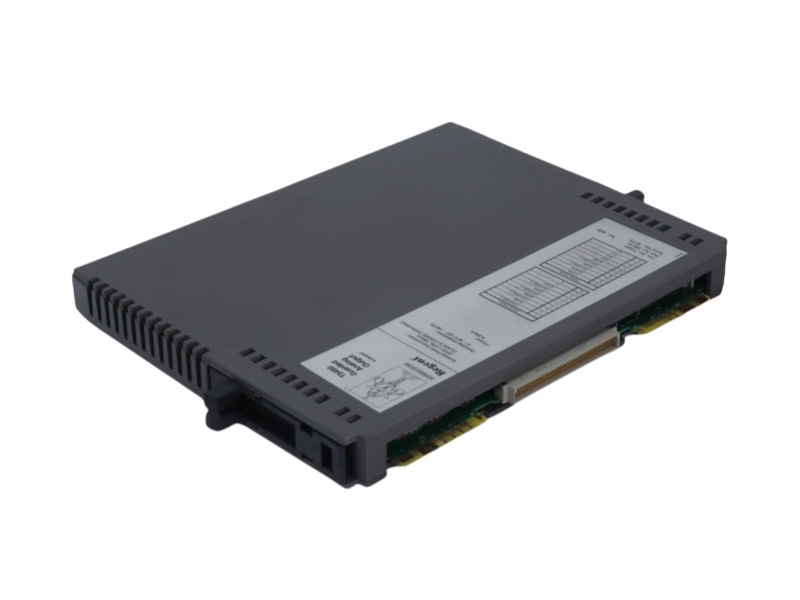

T3480 Product datasheet
|
Model number: |
T3480 |
|
Module Type： |
Analog Output Module |
|
Manufacture: |
ICS Triplex |
|
Condition： |
Brand New |
|
Range of Product: |
Regent+Plus Control System |
|
Lead time： |
In Stock |
|
Weight: |
1.68kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.3x26.5x35.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
T3480 Functional Description
The T3480 Digital Output Module from ICS Triplex is designed for reliability and precision in demanding industrial environments. Featuring an advanced microcontroller, the T3480 Digital Output Module ensures real-time signal processing and accurate control, even under challenging conditions.
Equipped with built-in safety features, including overcurrent protection and short-circuit detection, the T3480 Analog Output Module helps safeguard your system against potential hazards, ensuring its longevity and reducing the risk of damage.
The T3480 Analog Output Module is engineered for easy integration into existing industrial systems. Supporting Modbus RTU communication protocol, it ensures seamless connectivity with a wide range of devices and control systems, simplifying installation and maintenance processes. This compatibility helps reduce downtime and increases overall operational efficiency.
With an operating temperature range of -40°C to +85°C, the T3480 Guarded Analog Output Modules is well-suited for extreme environments. Its IP65-rated enclosure protects against dust and water ingress, ensuring durability and reliability in harsh industrial settings.
Constructed from high-quality materials, the T3480 Guarded Analog Output Modules is built to withstand the demands of industrial use. Backed by comprehensive technical support and a manufacturer warranty, it offers long-term reliability for your automation projects, giving you peace of mind for years to come.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ICS Triplex |
T3480 |
ICS Triplex |
T8850C |
ICS Triplex |
T8431 |
|
ICS Triplex |
T3420A |
ICS Triplex |
T8850 |
ICS Triplex |
T8403 |
|
ICS Triplex |
T3419 |
ICS Triplex |
T8830C |
ICS Triplex |
T8311 |
|
ICS Triplex |
T3411F |
ICS Triplex |
T8830 |
ICS Triplex |
T8310C |
|
ICS Triplex |
T3401 |
ICS Triplex |
T8800 |
ICS Triplex |
T8232 |
|
ICS Triplex |
T3310 |
ICS Triplex |
T8480 |
ICS Triplex |
T8151B |
|
ICS Triplex |
T9432 |
ICS Triplex |
T8461CX |
ICS Triplex |
T8122 |
|
ICS Triplex |
T9451 |
ICS Triplex |
T8461C |
ICS Triplex |
T8110B |
|
ICS Triplex |
T9310-02 |
ICS Triplex |
T8461 |
ICS Triplex |
T7481A |
|
ICS Triplex |
T9300 |
ICS Triplex |
T8431C |
ICS Triplex |
T3481A |
Regent+Plus Control System
Monitored Guarded Output
ModulesMonitored Guarded output modules provide Guarded control and line monitoring for sixteen field loads. Three types of modules are available for interfacing to outputs powered from 24 VDC, 110 VAC, or 120 VDC field power supplies. These modules are called Guarded because each module's dualredundant design ensures that no single fault within the module will inadvertently apply power to an output. These modules also monitor the output field wiring for open and short circuit faults. Individual output line status is available to application programs.
Monitored Guarded Output Modules (T7481/81A, 84 and 88/88A)
The processor modules send triplicated write data commands over the I/O Safetybus to the monitored Guarded output module. Onboard the output module the triplicated data are routed to two independent voters which provide voted data to associated field programmable gate arrays (FPGA). Each FPGA independently operates one of the two output control switches. The two output switches are connected in series with
the load. When both output switches are on, current will flow through the output and energize a field load. If either switch is off, current will not flow through the output and the load will be de-energized. This combination of series output switches and independent drive signals produces fail-safe activation of the load. Single failures can only affect one of the output drive signals or switches.
