3BHB012961R0001 5SHX 2645L0002 Product datasheet
Model number: |
3BHB012961R0001 5SHX 2645L0002 |
|
Module Type: |
IGCT Module |
Manufacture: |
ABB |
|
Condition: |
Brand New |
Range of Product: |
IGCT Series |
|
Lead time: |
In Stock |
Weight: |
0.96kg |
|
HS CODE: |
8537101190 |
Dimension: |
30x12.6x4.5cm |
|
MOQ: |
1 |
Product Origin: |
SWEDEN |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

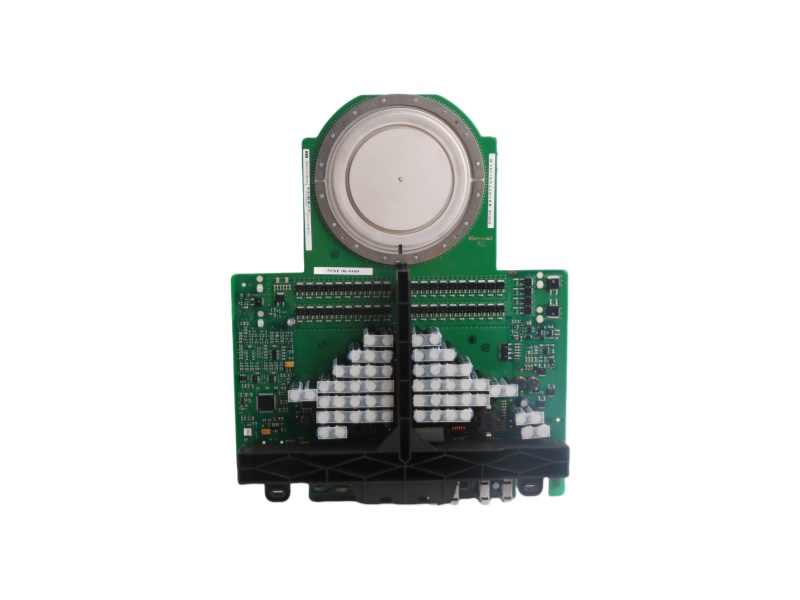

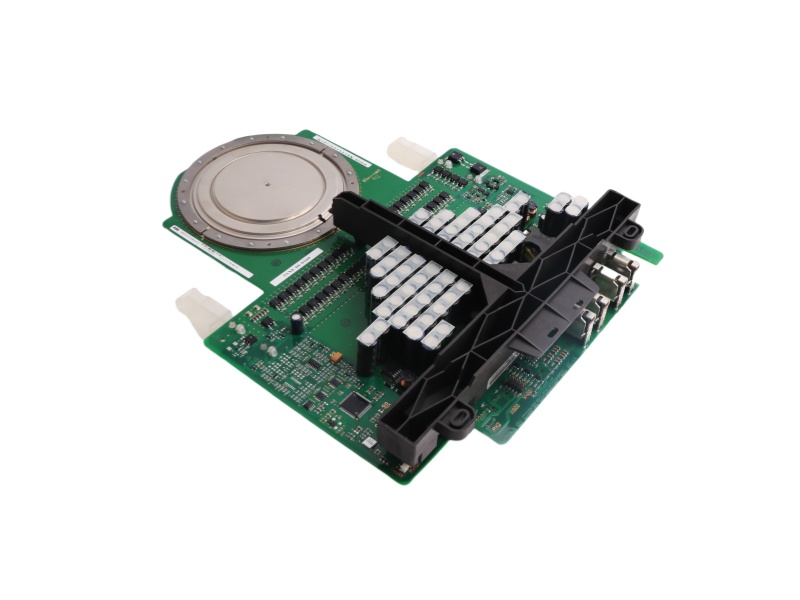

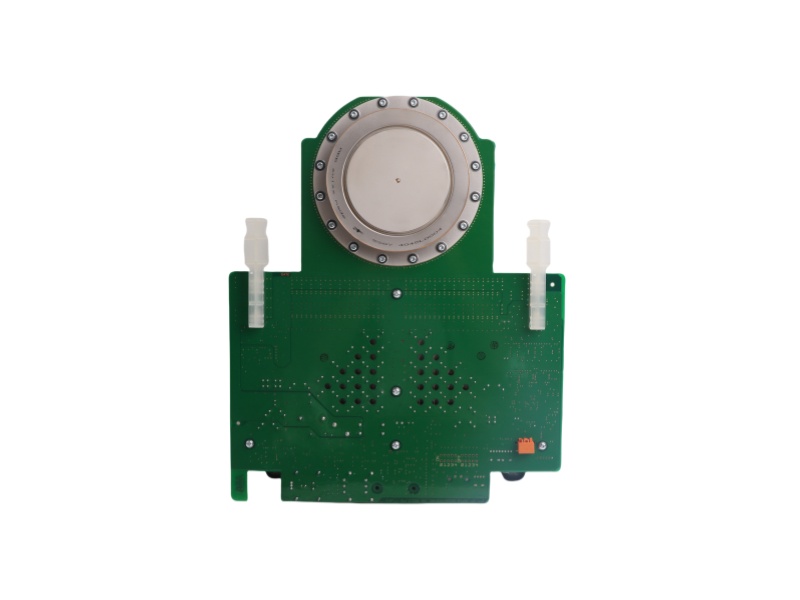

3BHB012961R0001 5SHX 2645L0002 Functional Description
The 3BHB012961R0001 5SHX 2645L0002 IGCT Module is engineered for superior power conversion performance, making it an essential component for high-efficiency industrial applications. With a rugged design and exceptional capabilities, this module excels in environments that demand precise power management and continuous operation.
Operating within a wide temperature range of -40°C to +100°C, the 3BHB012961R0001 5SHX 2645L0002 Advanced Power Control Solution guarantees reliability even under extreme conditions, making it ideal for industries like renewable energy, manufacturing, and heavy machinery.
This module features a rated current of 2000A and a switching frequency of 10kHz, providing unmatched efficiency for complex power electronics systems. Its high insulation class (Class H) ensures thermal stability, promoting long-lasting operation in challenging environments.
With an AC input voltage of 690V and DC output voltage of 400V, the 3BHB012961R0001 5SHX 2645L0002 Precision Control Module handles large-scale power demands while maintaining high performance. Its 800kW power rating supports heavy-duty operations, optimizing energy use with an impressive efficiency of 99%.
Compact and lightweight (100mm x 150mm x 250mm, 20kg), the 3BHB012961R0001 5SHX 2645L0002 gas turbine module ensures easy installation and maintenance, providing a practical and efficient solution for diverse industrial applications.
If you have other request contact our team to get customized service
