MVI69-ADM Product datasheet
|
Model number: |
MVI69-ADM |
|
Module Type： | 'C' Programmable Application Development Module |
|
Manufacture: |
Prosoft |
|
Condition： |
Brand New |
|
Range of Product: |
EtherNet/IP |
|
Lead time： |
In Stock |
|
Weight: |
0.18kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4x8.8x13.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
MVI69-ADM Description
The MVI69 Application Development Module allows user-developed 'C' applications to operate on the CompactLogix / MicroLogix platform. The ADM is a powerful tool for speeding up custom ASCII data communications or protecting a proprietary algorithm.

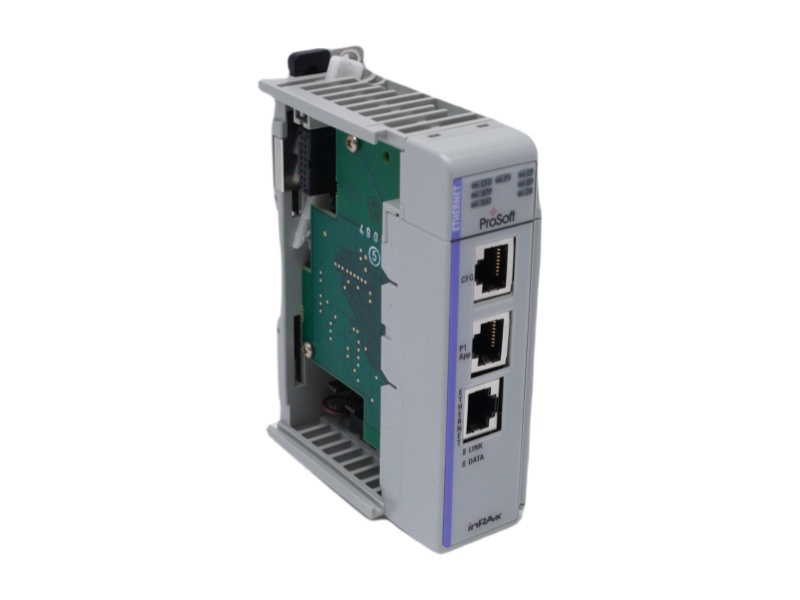

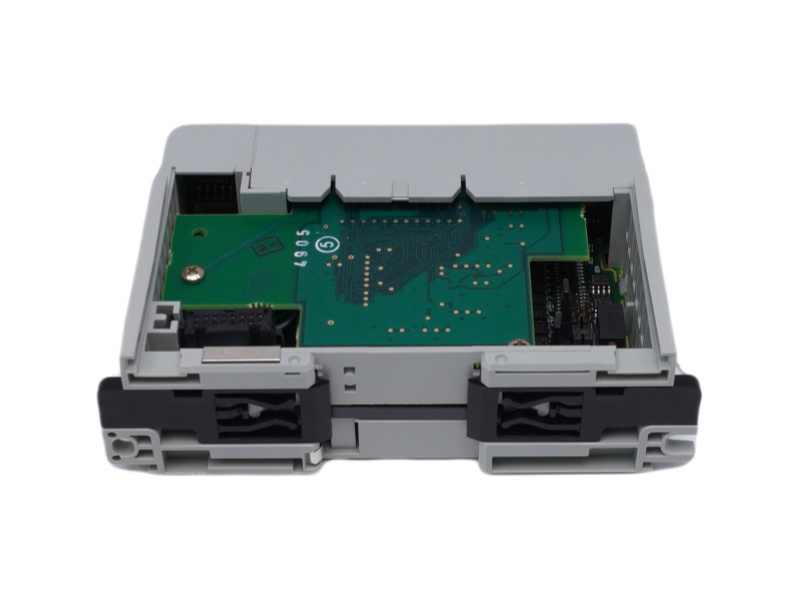

The MVI69 Application Development Module is a single-slot, backplane compatible solution for the CompactLogix / MicroLogix platform. This module supports two fully isolated serial ports, providing integration of the many serial field devices. The MVI69 Application Development Module has three serial ports, two of which are isolated for field interfaces:
1. CFG: Debug/configuration RS-232
2. PRT1: Application RS-232, RS-422 or RS-485
3.PRT2: Application RS-232, RS-422 or RS-485
MVI69-ADM features
1.Single-slot - 1769 backplane compatible
2.The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
3.Ladder Logic is used for data transfer between module and processor
4.Supports all CompactLogix and MicroLogix 1500 LRP Controllers except 1769-L23E-QBFC1B, 1769-L16x, and 1769-L18x
5.PRT1 and PRT2 are jumper configured for direct or multi-drop field communication. The application program can be written to control the two application ports independently, allowing maximum flexibility in the design.
MVI69-ADM Functional Specifications
Development Environment
1.Operating system: General software DOS 6-XL
2.Compatible compiler (16-bit DOS target)
a. Digital Mars C++ V8.49 (included)
b. Borland C++ V5.02
Application Programming Interfaces (API)
3.Serial Port API: serial port functions
4.Backplane API: low level backplane functions
5. ADM API debug port functions: debug port functions, database functions, timer functions, high level backplane transfer functions, LED functions, flash read functions
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Prosoft |
PS69-DPS |
Prosoft |
MVI71-AFC |
Prosoft |
MVI56-HART |
|
Prosoft |
PS69-DPM |
Prosoft |
MVI71-ADM |
Prosoft |
MVI56-GSC |
|
Prosoft |
PLX32-EIP-PND |
Prosoft |
MVI69-MNETC |
Prosoft |
MVI56-GEC |
|
Prosoft |
PLX31-MBTCP-MBS |
Prosoft |
MVI69L-MBTCP |
Prosoft |
MVI56E-MNETXT |
|
Prosoft |
PLX31-EIP-PND |
Prosoft |
MVI69L-MBS |
Prosoft |
MVI56E-MNETR |
|
Prosoft |
PLX31-EIP-MBS |
Prosoft |
MVI69-DFNT |
Prosoft |
MVI56E-MNETCR |
|
Prosoft |
PC56-2K-IDE |
Prosoft |
MVI69-ADMNET |
Prosoft |
MVI56E-MNET |
|
Prosoft |
MVI94-MCM |
Prosoft |
MVI69-ADM |
Prosoft |
MVI56E-MCMXT |
|
Prosoft |
MVI94-ADM |
Prosoft |
MVI56-PDPMV1 |
Prosoft |
MVI56E-MCMR |
|
Prosoft |
MVI71-MNET |
Prosoft |
MVI56-MDA4 |
Prosoft |
MVI56E-MCM |
ProSoft 'C' Programmable
The ADM API Suite allows software developers to access the serial ports without needing detailed knowledge of the module’s hardware
design. The ADM API Suite consists of two distinct components: the Serial Port API and the ADM API.
Applications for the module may be developed using industry-standard DOS programming tools and the appropriate API components.
Development Environment
Operating system: General software DOS 6-XL
Compatible compiler (16-bit DOS target)
a.Digital Mars C++ V8.49 (included)
b.Borland C++ V5.02
SDK Includes
1. ADM API LIB (library) File
2.ADM API Header File
3.Complete API Documentation
4. Image file creation utility
5.Image file download utility
6.DigitalMars 'C' compiler
7.General software DOS 6-XL
8.Example Code File
