MVI69-ADMNET Product datasheet

MVI69-ADMNET Description

The ProSoft MVI69-ADMNET module is engineered for industrial-grade programmability, offering an advanced processor architecture that efficiently handles custom control algorithms. This module supports a wide range of communication protocols, including MODBUS, CANopen, and DeviceNet, enabling versatile integration with diverse industrial equipment and systems.

With integrated debugging tools and detailed documentation, the ProSoft MVI69-ADMNET simplifies the development process, facilitating rapid prototyping and smooth deployment in real-world applications. Its ample memory resources allow for extensive code storage and execution, ensuring high performance without compromising system capabilities.

Designed to withstand harsh industrial environments, the ProSoft MVI69-ADMNET provides reliable operation even under extreme conditions, supported by robust power supply options. This ensures stability and continuous performance in demanding settings.

The ProSoft MVI69-ADMNET also boasts a user-friendly interface and seamless compatibility within the ProSoft ecosystem, streamlining development and reducing time-to-market. By enhancing operational efficiency, this module supports faster integration and more reliable control in industrial automation systems.

Functional Specifications - MVI69-ADMNET

The MVI69-ADM API Suite allows software developers access to the top layer of the CompactLogix processor and serial ports. The MVI69-ADMNET API suite accesses the Ethernet port.

Both APIs can be easily used without detailed knowledge of the module’s hardware design. The MVI69 ADMNET API Suite consists of the Ethernet Port API. The Ethernet Port API provides access to the Ethernet network. Applications for the MVI69-ADMNET module may be developed using industry-standard DOS programming tools and the appropriate API components.

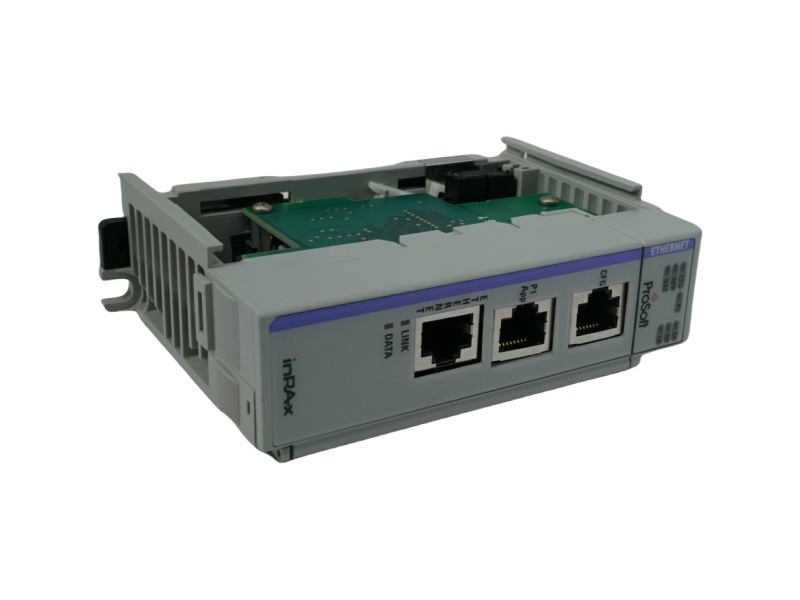

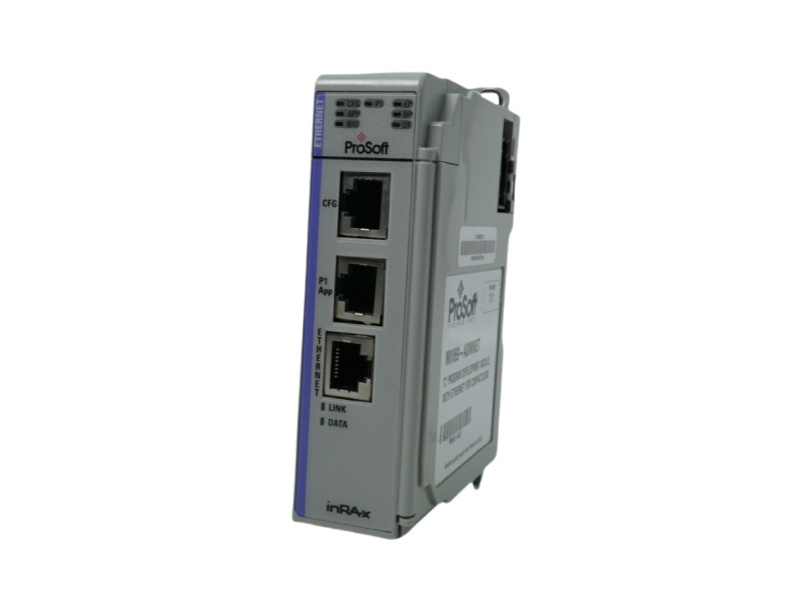

The MVI69-ADMNET module has two serial ports, one of which is isolated for field interfaces, and one Ethernet port.

1.CFG: debug/configuration RS-232

2. PRT1: Application RS-232, RS-422 or RS-485

3.Ethernet Port

PRT1 is jumper configured for direct or multi-drop field communication. The application program can be written to control the two application ports independently, allowing maximum flexibility in the design.
