PS69-DPS Product datasheet
|
Model number: |
PS69-DPS |
|
Module Type： |
Profibus Adapter |
|
Manufacture: |
Prosoft |
|
Condition： |
Brand New |
|
Range of Product: |
Compact I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.16 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.8x9x13cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
PS69-DPS Functional Description

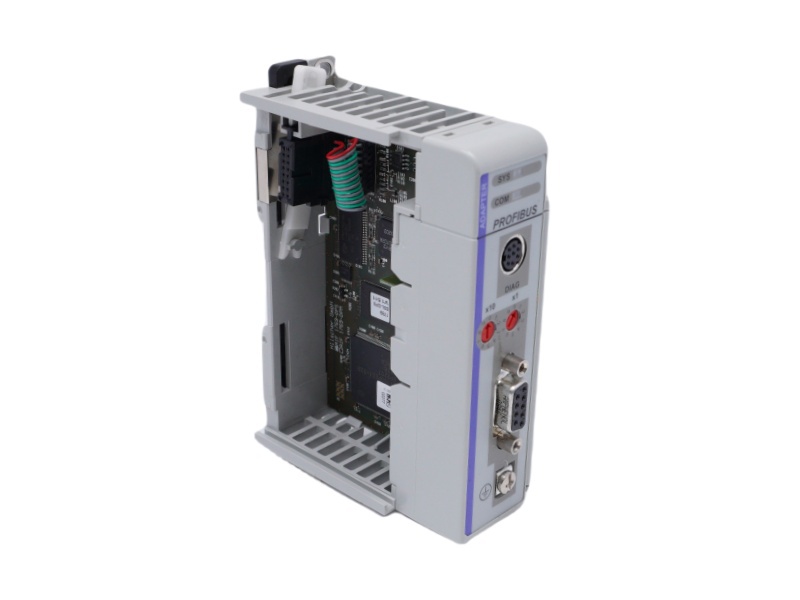

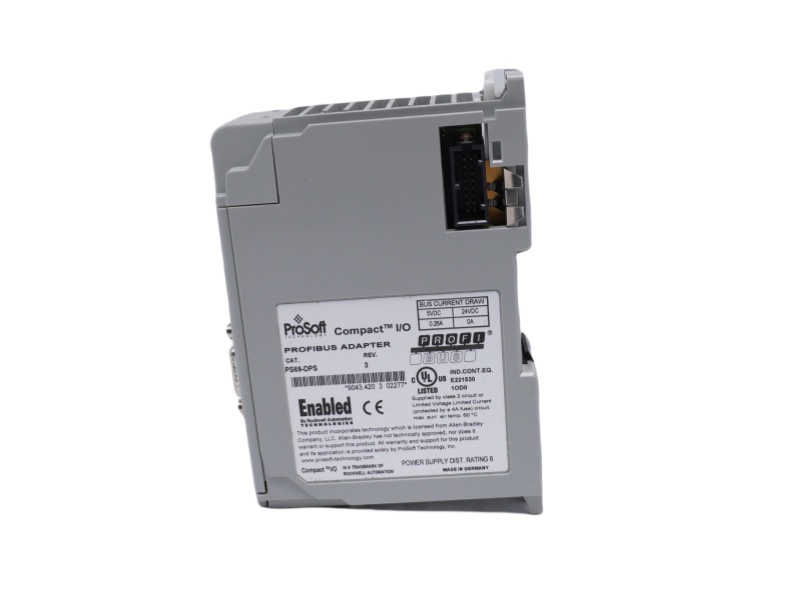

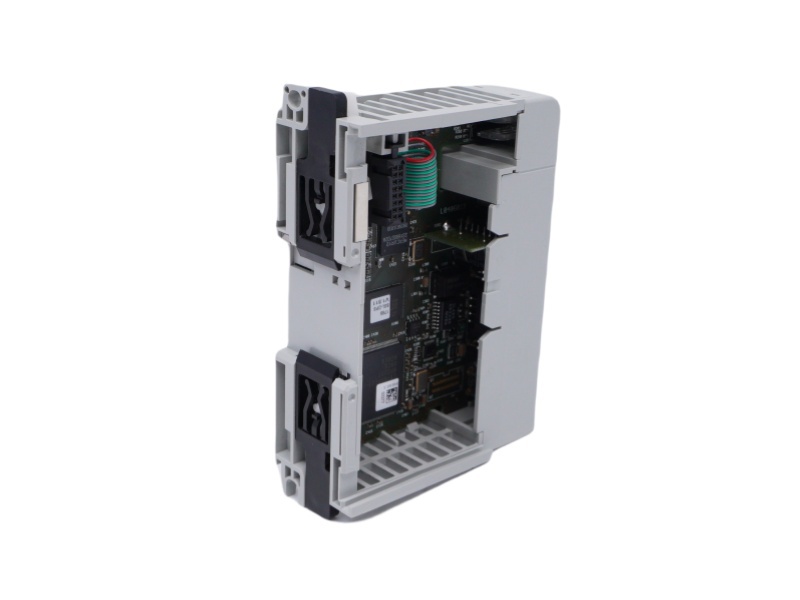

The Prosoft PS69-DPS module expands the functionality ofRockwell Automation’s CompactLogix™ to include PROFIBUS DP V0/V1. The Prosoft PS69-DPS is a more costeffective option offering more features than the MVI69- PDPS, and supports both I/O control and messaging. Explicit ladder logic CIP message blocks provide slave status diagnostic data and acyclic messaging. The Prosoft PS69-DPS interface appears to the CompactLogix controller as a standard I/O module allowing it to be configured via RSLogix™ 5000, or configuration can be transferred from the Master to the Prosoft PS69-DPS. For third party configuration a GSD file is supplied. The slave interface possesses a diagnostic interface and has rotary switches for setting of the bus address. Complete program examples for simple and quick start-up are available. Each module is equipped with LEDs to display communication and device status.
