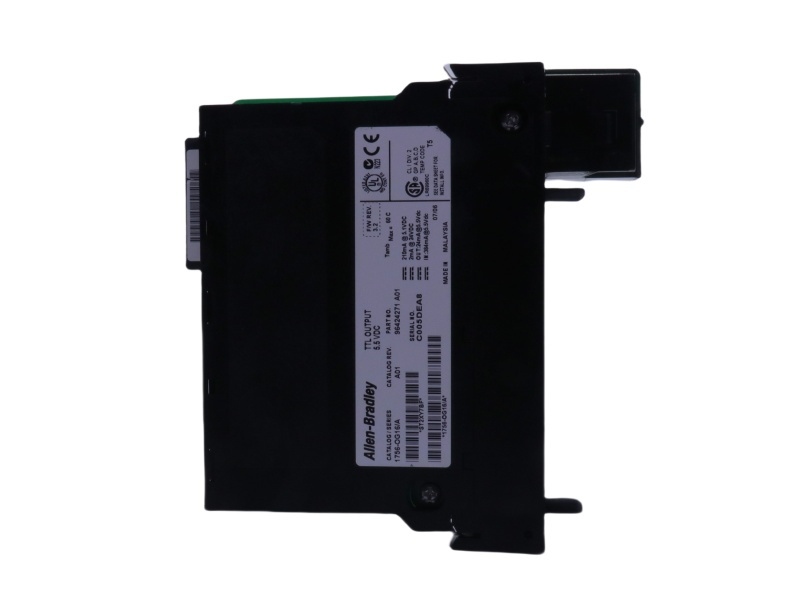

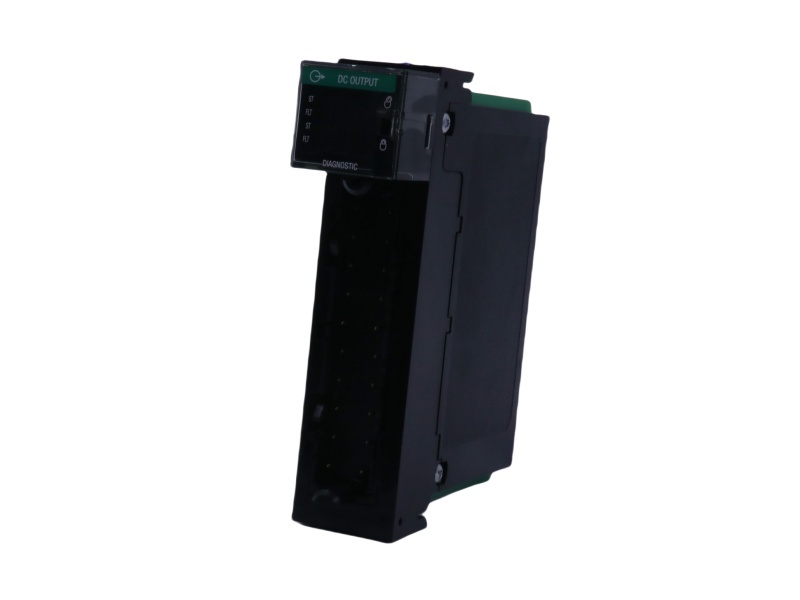

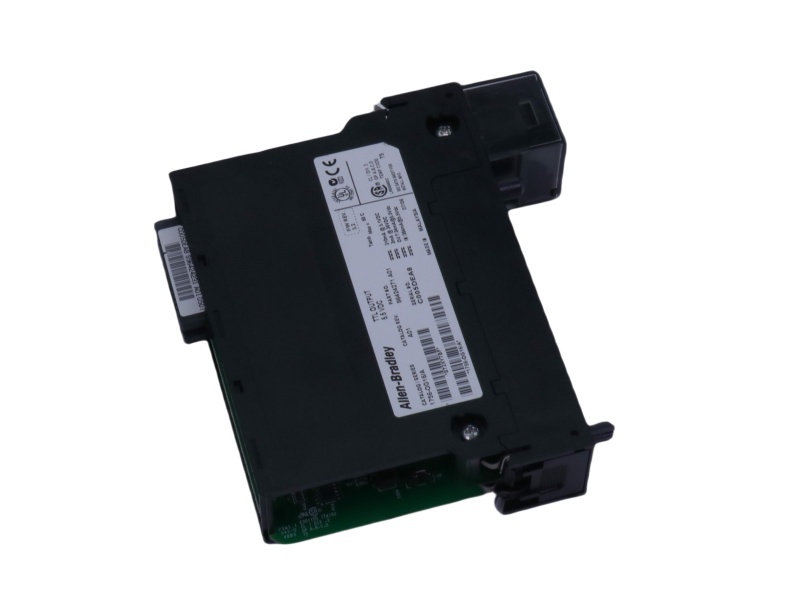

Allen-Bradley 1756-OG16 Transistor Logic Output Module

Allen-Bradley 1756-OG16
Allen-Bradley 1756-OG16
Allen-Bradley 1756-OG16

1756-OG16 Product datasheet

Model number:

1756-OG16



Module Type:

Transistor Logic Output Module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.2kg



HS CODE:

8537101190

Dimension:

3.5x14x14.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-OG16 Functional Description


The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module by Allen-Bradley is a versatile DC digital output module designed for installation in the ControlLogix chassis. It provides sixteen 5V DC Low/True TTL outputs, operating within a voltage range of 4.5V to 5.5V DC. The module features a load-dependent signal delay time of 450μs for transitioning from OFF to ON, and 700μs for transitioning from ON to OFF. The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module draws a backplane current of 210mA at 5.1V DC and 2mA at 24V DC, with a total backplane power consumption of 1.12W.



Each output point on the module has a maximum OFF state leakage current of 0.1mA and a voltage drop of 0.4V when in the ON state. The module supports a maximum load current of 24mA per point, and a total current load of 384mA across all outputs. The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module has a maximum output scheduled time of 16.7 seconds. In terms of thermal characteristics, the module dissipates 5.2 BTU/hr at 60°C and a power dissipation of 1.5W. The module is rated for operation within a temperature range of 0-60°C (32-140°F) and a humidity range of 5-95% without condensation.



The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module is built to withstand harsh industrial conditions, with an operational shock rating of 30G and a vibration rating of 2.0G at frequencies ranging from 10-500Hz. The module is CE and UL certified and meets the CISPR 11, Class A emissions standards. Its design includes a T5 temperature code, making it suitable for use in both North America and Europe.
