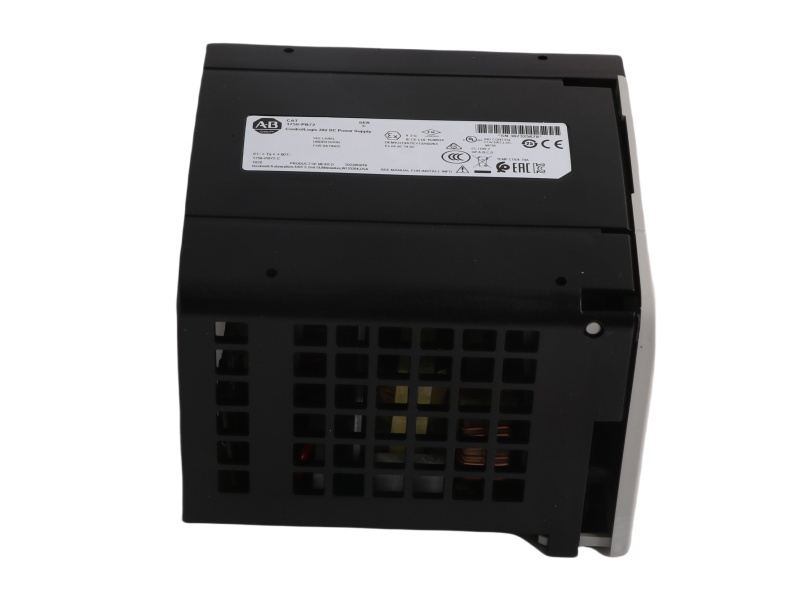

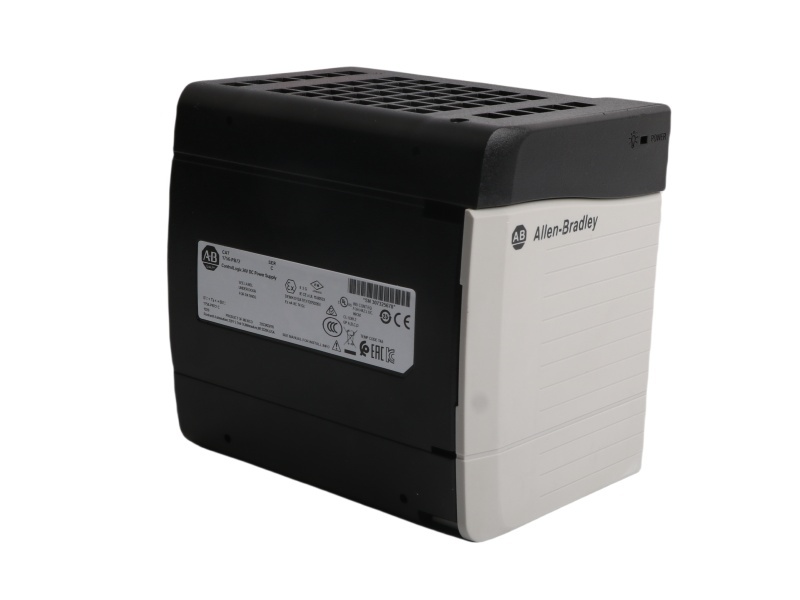

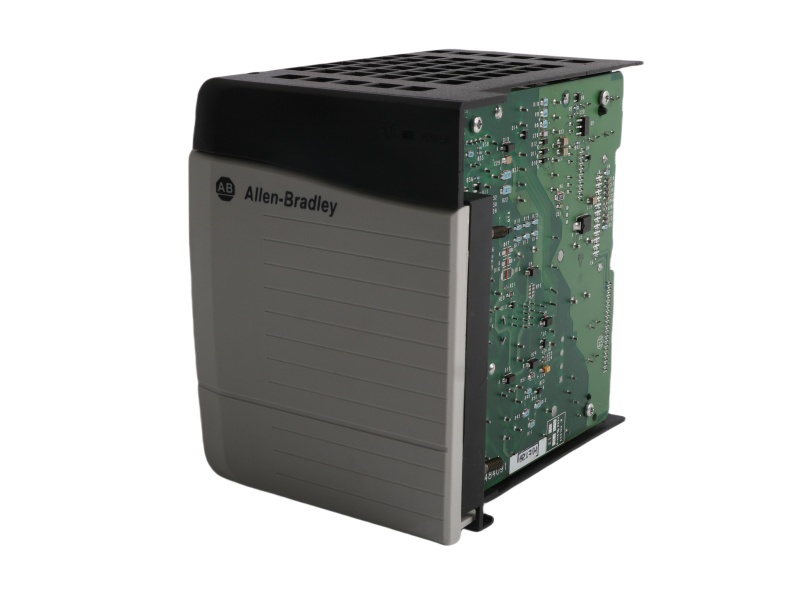

Allen-Bradley 1756-PB72 ControlLogix Power Supply

Allen-Bradley 1756-PB72
Allen-Bradley 1756-PB72
Allen-Bradley 1756-PB72

1756-PB72 Product datasheet

Model number:

1756-PB72



Module Type:

Redundant Power Supply

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.98kg



HS CODE:

8537101190

Dimension:

10.8x14.2x13.8cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-PB72 Functional Description


The Allen-Bradley 1756-PB72 is a standard DC power supply designed for ControlLogix systems. It operates with a 24V DC input and offers integrated overcurrent protection. The device is built with reinforced insulation, tested at 3,500V DC for 60 seconds to ensure safety and reliability. The input frequency for this power supply ranges from 47 to 63 Hz, and its compact dimensions are 140 x 112 x 145 mm (5.51 x 4.41 x 5.71 inches), weighing approximately 0.95 kg (2.10 lbs).



The 1756-PB72 standard DC power supply is designed to operate in challenging environmental conditions, with a humidity range of 5-95% (non-condensing) and vibration resistance of 2 G at 10-500 Hz. Its operating temperature spans from 0°C to 60°C (32°F to 140°F), while the non-operating temperature is between -40°C to 85°C (-40°F to 185°F). The unit can withstand surge transient immunity of ±1 kV line-line and ±2 kV line-earth, ensuring reliable performance even in harsh electrical environments.



This 1756-PB72 standard DC power supply supports series A, B, and C ControlLogix chassis and provides 4A at 3.3V, 10A at 5.1V, and 2.8A at 24V outputs. It is installed in the leftmost slot of the chassis, without occupying any module slots, and is secured directly onto the mounting plate. Proper grounding of the unit is recommended for safety and optimal performance.



A clear LED indicator on the module’s upper right section provides a visual status of its operation, while the DC terminal is easily accessible through the cover door for wiring. The terminal markings DC+ and DC- ensure straightforward installation and configuration. The 1756-PB72 standard DC power supply is not intended for use in residential areas, where radio communication interference could be an issue.
