1756-PB75R Product datasheet
|
Model number: |
1756-PB75R |
|
Module Type： |
Redundant Power Supply |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
ControlLogix |
|
Lead time： |
In Stock |
|
Weight: |
1.46kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
14.1x17.4x13.6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
December 31, 2012 |
|
Communication Service: |
Ethernet router |
1756-PB75R Functional Description

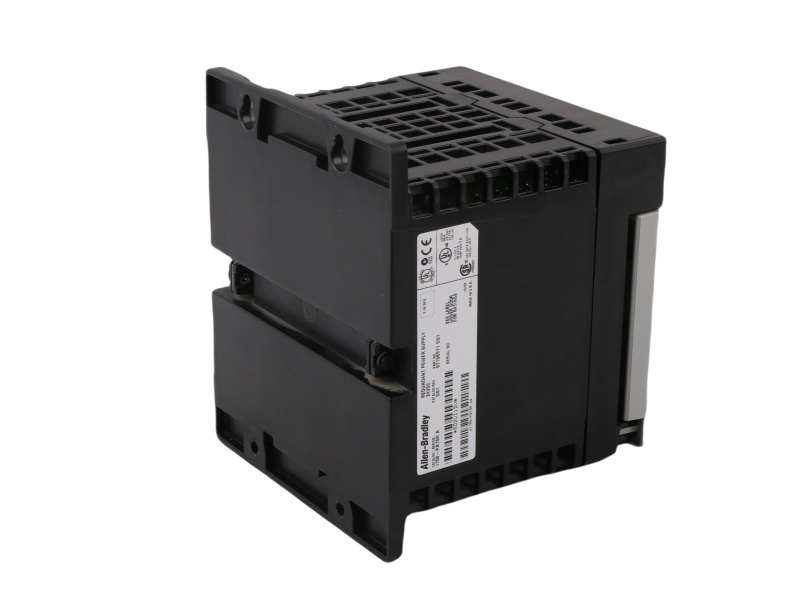

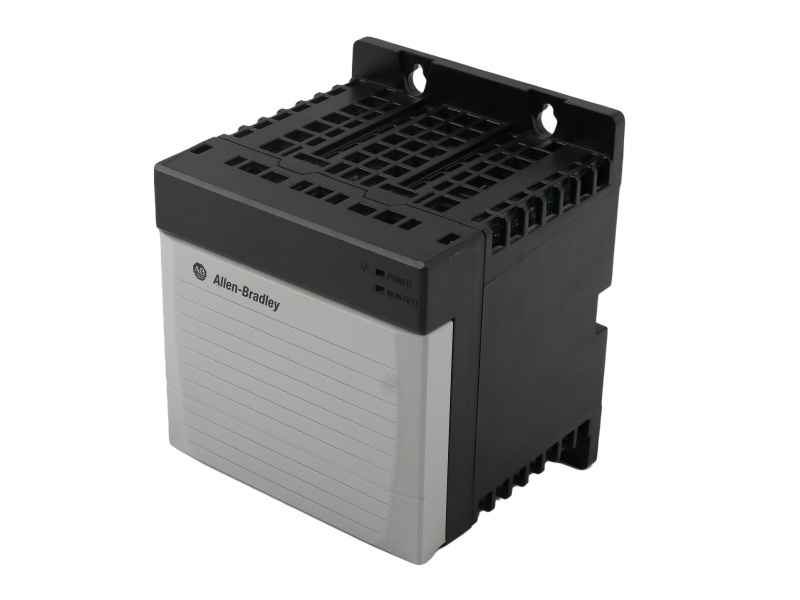

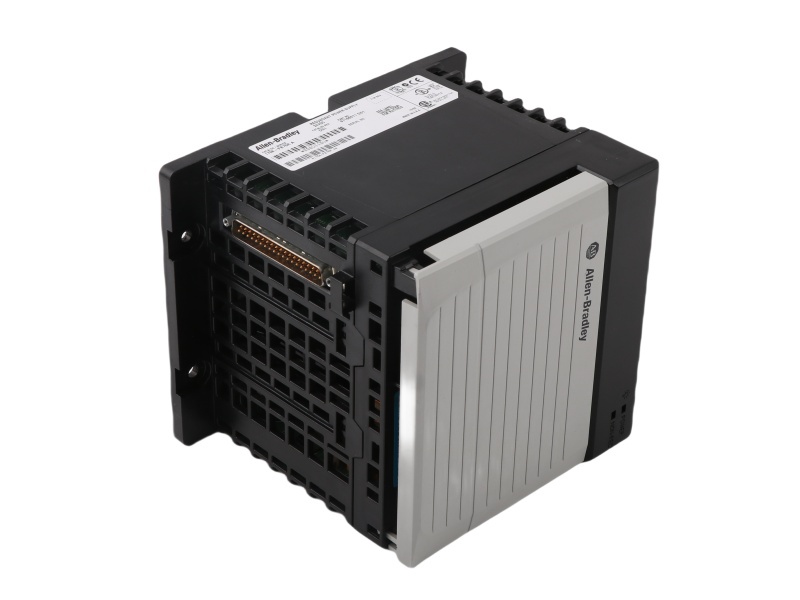

The Allen-Bradley 1756-PB75R is a ControlLogix redundant power supply designed to provide reliable power to the 1756 series PLCs, minimizing system downtime due to power failures. With an input voltage range of 18-32 VDC and a nominal supply of 24 VDC, the 1756-PB75R ControlLogix redundant power supply offers automatic chassis load sharing between redundant power supplies, ensuring a seamless transition in case of power supply failure. This power supply operates with an output power of 75 watts at temperatures between 0-60°C (32-140°F) and supports current capacities across multiple voltage rails.
The 1756-PB75R ControlLogix redundant power supply has several notable features, including a hold-up time of 20 milliseconds and a maximum inrush current rating of 30 amperes. It is equipped with a status indicator to show its operational state and can function with an annunciator power of 90 VDC, designed for ATEX/IECEx compliance. The isolation voltage rating is 250 VDC continuous, and it is tested to 3250 VDC for 60 seconds. This power supply module has an operational temperature range of 0-60°C (32-140°F) and can withstand nonoperating temperatures from -40°C to 85°C (-40°F to 185°F).
For installation, the 1756-PB75R ControlLogix redundant power supply is compatible with various 1756 chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. The unit uses the 1756-CPR2 cable for connection to the 1756-PSCA2 chassis adapter, though care must be taken when connecting or disconnecting the cable under powered conditions to avoid electrical arcing, which could result in hazardous conditions.
Overall, the Allen-Bradley 1756-PB75R ControlLogix redundant power supply is an essential component in ensuring high availability and reliability in critical industrial control systems, with robust features designed for both performance and safety.
