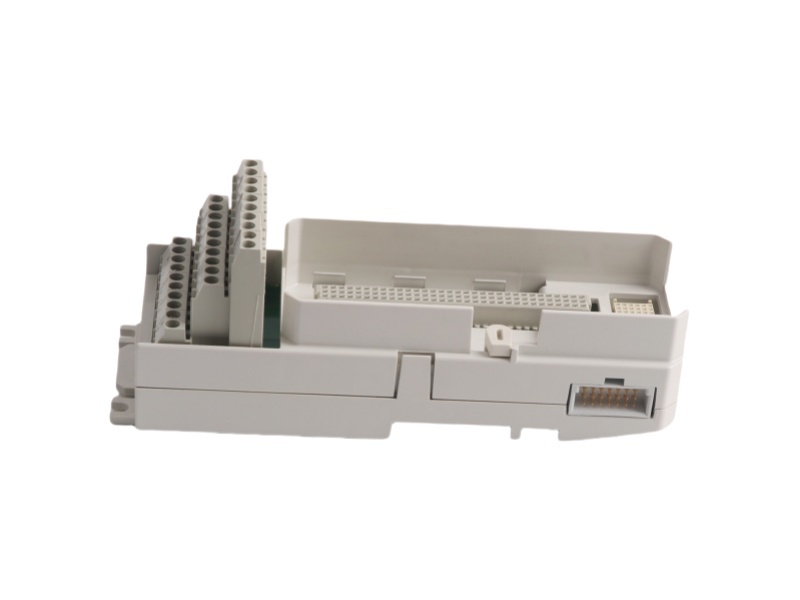

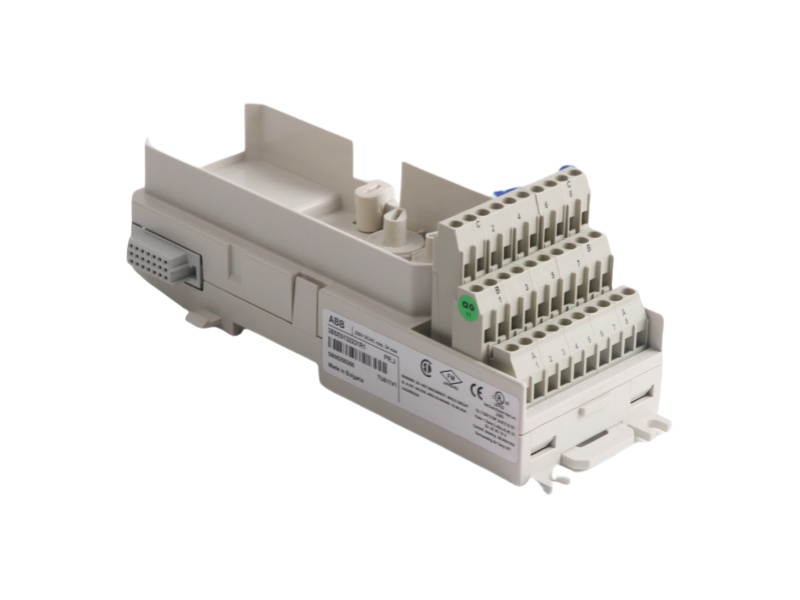

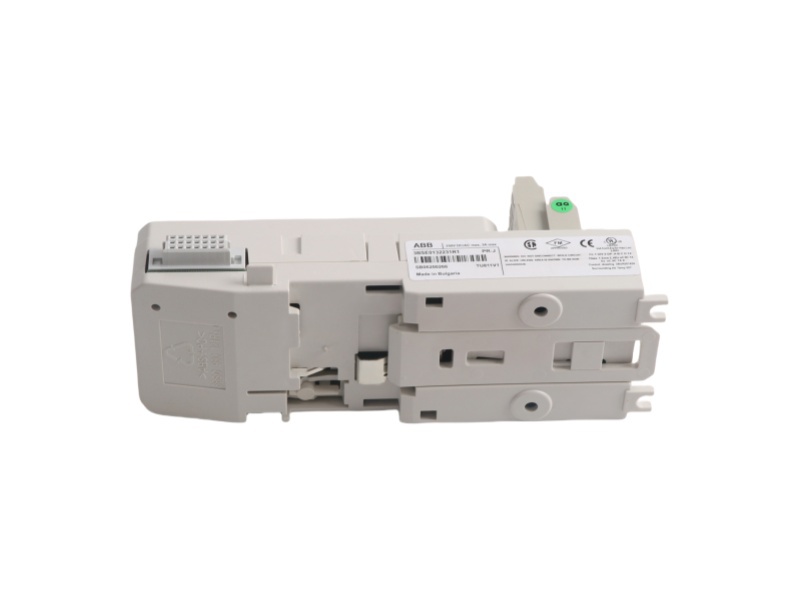

TU811V1 3BSE013231R1 Product datasheet
|
Model number: |
TU811V1 3BSE013231R1 |
|
Module Type： |
Process Automation module |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.18kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
17x6.5x6.5cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TU811V1 3BSE013231R1 Functional Description
Features and benefits
Compact installation of I/O modules.
Up to 8 isolated channels of field signals.
Connections to ModuleBus and I/O modules.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ABB |
TU921S 3KDE175111L9210 |
ABB |
TU515 1SAP212200R0001 |
ABB |
TC570 3BSE001458R1 |
|
ABB |
TU890 3BSC690075R1 |
ABB |
TPS02 |
ABB |
TC562 3BSC630049R1 |
|
ABB |
TU846 3BSE022460R1 |
ABB |
TPC-1570H 3BHE031734R1011 |
ABB |
TC530 3BUR000101R1 |
|
ABB |
TU845 3BSE021447R1 |
ABB |
TK851V010 3BSC950262R1 |
ABB |
TC520 3BSE001449R1 |
|
ABB |
TU843 3BSE021443R1 |
ABB |
TK851V010 3BSC950262R |
ABB |
TC516 3BSE012632R1 |
|
ABB |
TU842 3BSE020850R1 |
ABB |
TK850V007 3BSC950192R1 |
ABB |
TC513 3BSE006385R1 |
|
ABB |
TU831V1 3BSE013235R1 |
ABB |
TK821V020 3BSC950202R1 |
ABB |
TC512V1 3BSE018059R1 |
|
ABB |
TU818V1 3BSE069209R1 |
ABB |
TD951F 3BDH001020R0001 |
ABB |
TB807 3BSE008538R1 |
|
ABB |
TU811V1 3BSE013231R1 |
ABB |
TC630 3BSE002253R1 |
ABB |
TB820V2 3BSE013208R1 |
|
ABB |
TU532-XC 1SAP417000R0001 |
ABB |
TC625 3BSE002224R1 |
ABB |
TB511-ETH-XC 1SAP311100R0270 |
S800 I/O System Introduction
Scales from low cost, standard function to high end features like hot-swap, HART, time tagging, redundancy down to I/O channel.S800 I/O is an open comprehensive, distributed, process I/O system that communicates with controllers by direct connection or over industry-standard field buses. Thanks to its open connectivity it fits a wide range of process controllers from ABB and others.By permitting installation in the field, close to sensors and actuators, S800 I/O reduces the installation cost by reducing the cost of cabling.
Module Termination Units and Terminal Units
The Module Termination Units (MTU) are passive base units used to house the I/O modules. They contain the process wiring terminals and a section of the ModuleBus.
The Module Termination Units (MTU) distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. The configuration can be changed with a screwdriver.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. The MTU has a mechanical locking mechanism that locks the module in its position.
This mechanism also gives the signal BLOCK to the I/O module that keeps the module in its init state until it is locked in its position. The top part of the MTU can be removed to replace the termination board even with the system running. Such a need can be caused by a damaged terminal screw. The MTUs are available in tree versions (Compact, Extended and Redundant). The Compact MTU version typically provides for a compact installation of the I/O modules using 1 wire connections.
