TU846 3BSE022460R1 Product datasheet
|
Model number: |
TU846 3BSE022460R1 |
|
Module Type： |
Module Termination Unit |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.3kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
12.7x5.1x20.3cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TU846 3BSE022460R1 Functional Description

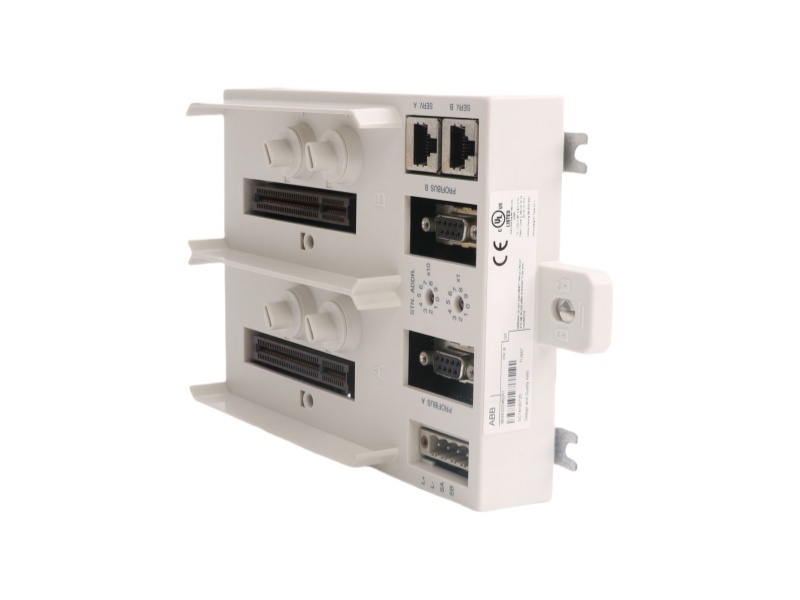

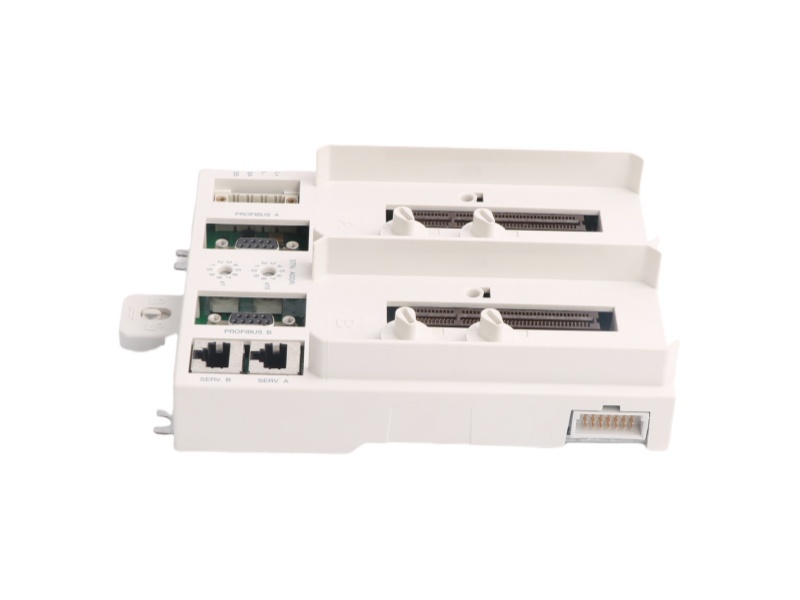

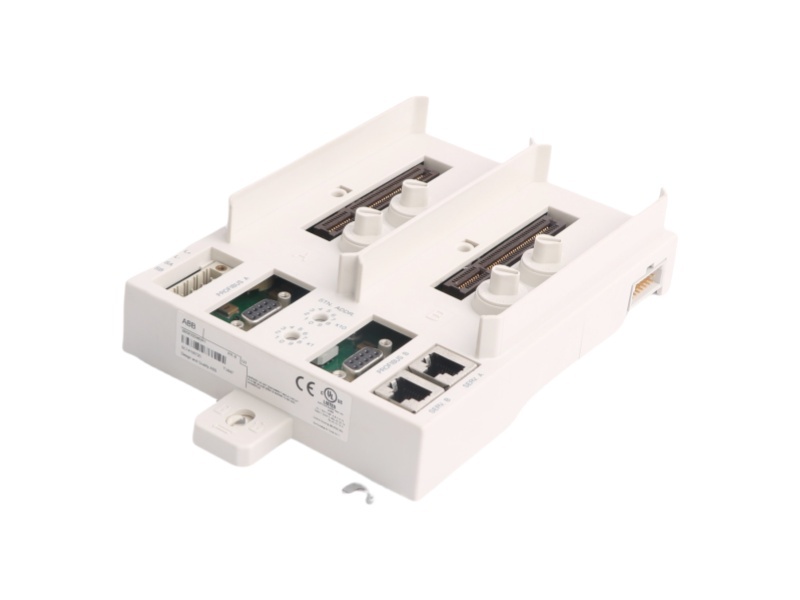

The TU846 3BSE022460R1 Module Termination Unit is a vital component for the redundant configuration of field communication interfaces, specifically the CI840/CI840A, and redundant I/O systems. This passive TU846 3BSE022460R1 Module Termination Unitprovides essential connections for the power supply, two electrical ModuleBuses, and two CI840/CI840A units, along with dual rotary switches for station address settings (ranging from 0 to 99).
The TU846 3BSE022460R1 Module Termination Unit also offers compatibility with a ModuleBus Optical Port TB842, which can be connected via TB846. The unit incorporates four mechanical keys, two for each position, which provide a total of 36 different configuration options, allowing users to set up the MTU for the specific types of modules being used.
Designed for use with redundant I/O modules, the TU846 3BSE022460R1 Module Termination Unit is optimized for systems requiring high availability and reliability. For systems with single I/O modules, the TU847 should be used. The maximum ModuleBus length from the TU846 3BSE022460R1 Module Termination Unit to the ModuleBus terminator is 2.5 meters. Additionally, the TU846 3BSE022460R1 Module Termination Unit requires space on the left for removal and cannot be replaced with power applied, ensuring safe maintenance and operation.
Features and benefits
• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• Connection for two ModuleBuses.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
• DIN rail mounted.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ABB |
TU921S 3KDE175111L9210 |
ABB |
TU515 1SAP212200R0001 |
ABB |
TC570 3BSE001458R1 |
|
ABB |
TU890 3BSC690075R1 |
ABB |
TPS02 |
ABB |
TC562 3BSC630049R1 |
|
ABB |
TU846 3BSE022460R1 |
ABB |
TPC-1570H 3BHE031734R1011 |
ABB |
TC530 3BUR000101R1 |
|
ABB |
TU845 3BSE021447R1 |
ABB |
TK851V010 3BSC950262R1 |
ABB |
TC520 3BSE001449R1 |
|
ABB |
TU843 3BSE021443R1 |
ABB |
TK851V010 3BSC950262R |
ABB |
TC516 3BSE012632R1 |
|
ABB |
TU842 3BSE020850R1 |
ABB |
TK850V007 3BSC950192R1 |
ABB |
TC513 3BSE006385R1 |
|
ABB |
TU831V1 3BSE013235R1 |
ABB |
TK821V020 3BSC950202R1 |
ABB |
TC512V1 3BSE018059R1 |
|
ABB |
TU818V1 3BSE069209R1 |
ABB |
TD951F 3BDH001020R0001 |
ABB |
TB807 3BSE008538R1 |
|
ABB |
TU811V1 3BSE013231R1 |
ABB |
TC630 3BSE002253R1 |
ABB |
TB820V2 3BSE013208R1 |
|
ABB |
TU532-XC 1SAP417000R0001 |
ABB |
TC625 3BSE002224R1 |
ABB |
TB511-ETH-XC 1SAP311100R0270 |
S800 I/O System Introduction
Scales from low cost, standard function to high end features like hot-swap, HART, time tagging, redundancy down to I/O channel.
S800 I/O is an open comprehensive, distributed, process I/O system that communicates with controllers by direct connection or over industry-standard field buses. Thanks to its open connectivity it fits a wide range of process controllers from ABB and others.
By permitting installation in the field, close to sensors and actuators, S800 I/O reduces the installation cost by reducing the cost of cabling.
Fenefits
Cost effective solutions to practically all needs for field device interfacing, including basic analog and digital I/O, as well as intrinsic safety and high integrity solutions.
Highly modular and can be built in a near infinite number of ways, from highly centralized to highly distributed.
Supporting industry standard field bus PROFIBUS DP, compatible also with non-ABB controllers; supports also ABB’s Advant Fieldbus 100
Configured transparently as part of parent controllers, like local I/O; no additional knowledge or skills are required.
Comprehensive diagnostics, hot swapping of modules and redundancy solutions contribute to keeping production up
