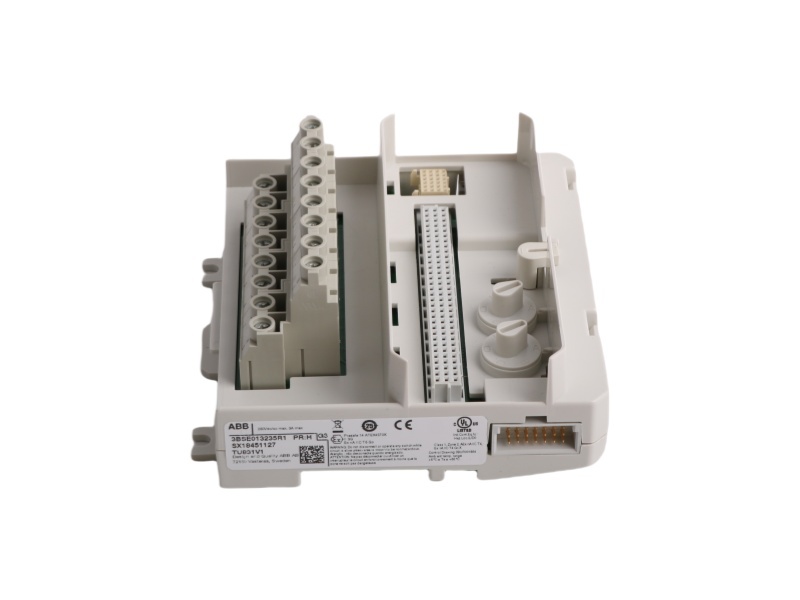

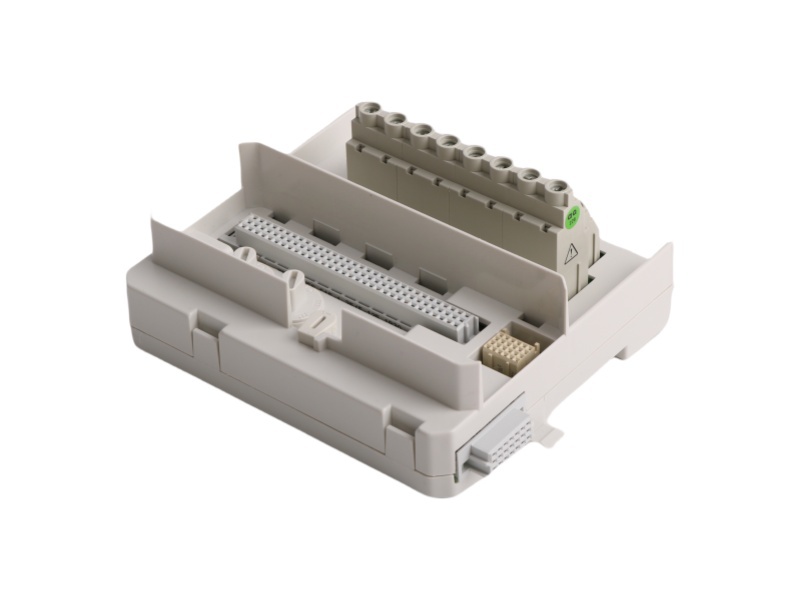

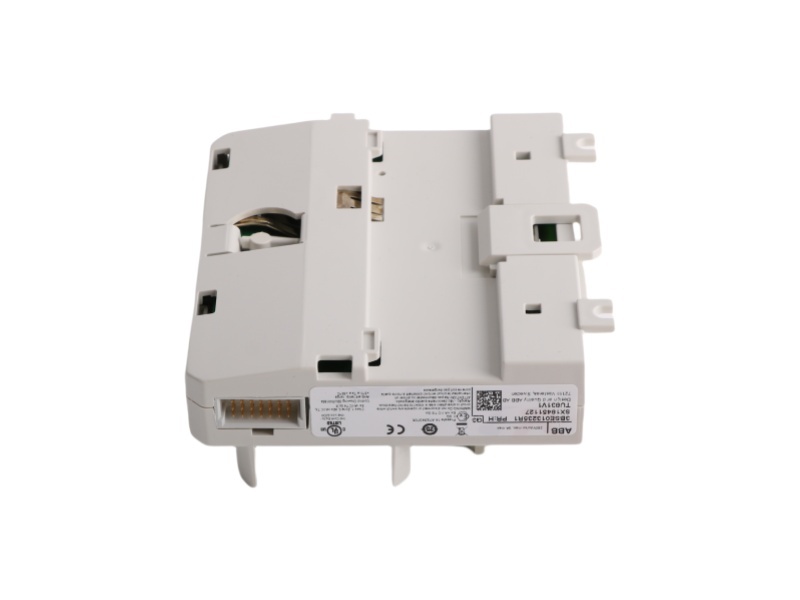

ABB TU831V1 3BSE013235R1 Extended Module Termination Unit

TU831V1 3BSE013235R1
TU831V1 3BSE013235R1
TU831V1 3BSE013235R1

TU831V1 3BSE013235R1 Product datasheet

Model number:

TU831V1 3BSE013235R1



Module Type:

Extended Module Termination Unit

Manufacture:

ABB



Condition:

Brand New

Range of Product:

S800 I/O



Lead time:

In Stock

Weight:

0.22kg



HS CODE:

8537101190

Dimension:

12.6x11.6x5.8cm



MOQ:

1

Product Origin:

SWEDEN



System:

DCS

Discontinued on:

Active



Communication Service:

Ethernet router



TU831V1 3BSE013235R1 Functional Description


The TU831V1 3BSE013235R1 Extended Module Termination Unit is designed to support up to 8 I/O channels, offering flexibility and scalability for industrial automation systems. Each channel of the TU831V1 Extended Module Termination Unit has a maximum rated voltage of 250 V and a current capacity of 3 A, making it suitable for a variety of demanding applications that require high power and performance.

The TU831V1 3BSE013235R1 Extended Module Termination Unit efficiently distributes the ModuleBus to each connected I/O module and to the next MTU in the system, ensuring smooth communication across the entire network. Additionally, the TU831V1 3BSE013235R1 Extended Module Termination Unit generates the correct address for each I/O module by shifting the outgoing position signals to the next MTU, facilitating reliable data transmission and seamless integration.

For ease of installation, the TU831V1 Extended Module Termination Unit can be mounted on a standard DIN rail, with a mechanical latch that locks the unit securely in place. This ensures that the MTU remains stable and protected during operation. The TU831V1 3BSE013235R1 Extended Module Termination Unit is designed to offer both efficiency and ease of use in industrial environments, making it an essential component in complex automation systems.



Features and benefits

Greater connection area for larger wires.

Up to 8 isolated channels of field signals.

Connections to ModuleBus and I/O modules.

Mechanical keying prevents insertion of the wrong I/O module.

Latching device to DIN rail for grounding.

DIN rail mounting.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




ABB

TU921S 3KDE175111L9210

ABB

TU515 1SAP212200R0001

ABB

TC570 3BSE001458R1

ABB

TU890 3BSC690075R1

ABB

TPS02

ABB

TC562 3BSC630049R1

ABB

TU846 3BSE022460R1

ABB

TPC-1570H 3BHE031734R1011

ABB

TC530 3BUR000101R1

ABB

TU845 3BSE021447R1

ABB

TK851V010 3BSC950262R1

ABB

TC520 3BSE001449R1

ABB

TU843 3BSE021443R1

ABB

TK851V010 3BSC950262R

ABB

TC516 3BSE012632R1

ABB

TU842 3BSE020850R1

ABB

TK850V007 3BSC950192R1

ABB

TC513 3BSE006385R1

ABB

TU831V1 3BSE013235R1

ABB

TK821V020 3BSC950202R1

ABB

TC512V1 3BSE018059R1

ABB

TU818V1 3BSE069209R1

ABB

TD951F 3BDH001020R0001

ABB

TB807 3BSE008538R1

ABB

TU811V1 3BSE013231R1

ABB

TC630 3BSE002253R1

ABB

TB820V2 3BSE013208R1

ABB

TU532-XC 1SAP417000R0001

ABB

TC625 3BSE002224R1

ABB

TB511-ETH-XC 1SAP311100R0270



S800 I/O System Introduction


The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are combined to form an I/O Station. The S800 I/O can be used in both single and redundant applications. In general, all S800 units are G3 compliant. G3 compliant modules withstand more severe environmental conditions according to ISA-S71.04. The following S800 units are G2 compliant - SD821, SD822, SD823, SD831, SD832, SD833, SD834, SS822, SS832, TB811 and CI830. G3 compliant versions of SD822 and SS822 are

also available (refer to SD822Z and SS822Z). All modules are marked with a bar code that shows the serial number, article ID and the product revision number. A separate bar code strip is also enclosed along with the module for placing on the module, if needed. The bar code is of type Bar-code 128. For more information, refer to S800 I/O Getting Started(3BSE020923*) manual. The S800 I/O can be categorized into:

• Module Termination Units (MTU)

• I/O modules – S800 I/O modules and S800L I/O modules.

S800 I/O modules are designed to be used together with a Module Termination Unit.

S800L I/O modules are designed to be directly mounted on a standard DIN rail.

The module also contains terminals for connections.



Module Termination Units and Terminal Units

The Module Termination Units (MTU) are passive base units used to house the I/O modules. They contain the process wiring terminals and a section of the ModuleBus.

The Module Termination Units (MTU) distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.  Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. The configuration can be changed with a screwdriver.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. The MTU has a mechanical locking mechanism that locks the module in its position.

This mechanism also gives the signal BLOCK to the I/O module that keeps the module in its init state until it is locked in its position. The top part of the MTU can be removed to replace the termination board even with the system running. Such a need can be caused by a damaged terminal screw. The MTUs are available in tree versions (Compact, Extended and Redundant). The Compact MTU version typically provides for a compact installation of the I/O modules using 1 wire connections.
