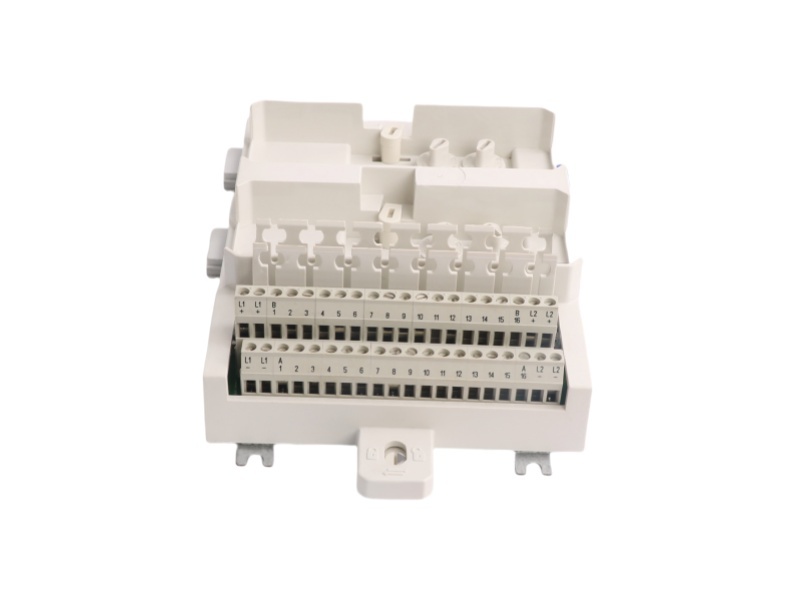

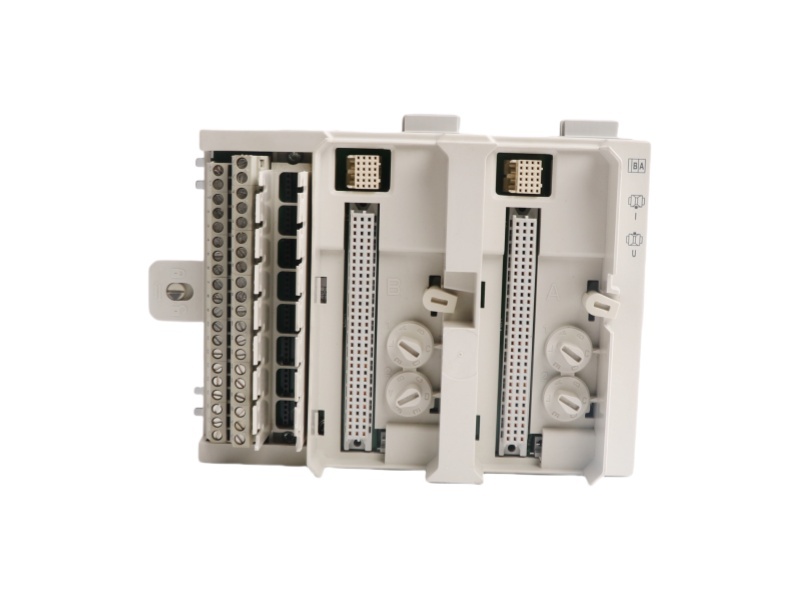

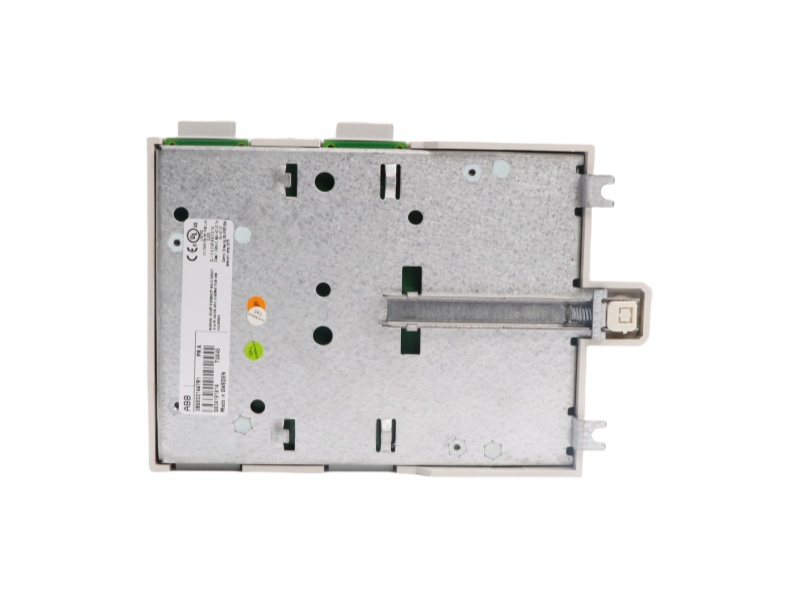

TU845 3BSE021447R1 Product datasheet
|
Model number: |
TU845 3BSE021447R1 |
|
Module Type： |
Redundant Termination Unit |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.58kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
18.5x13x6.2cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TU845 3BSE021447R1 Functional Description
The TU845 3BSE021447R1 Termination Unit is a versatile and reliable solution for industrial automation, supporting up to 8 I/O channels and 2+2 process voltage connections. Each channel on the TU845 3BSE021447R1 Termination Unit provides two I/O connections and one ZP connection, ensuring flexibility for various input and output configurations. Input signals are connected via individual shunt sticks (TY801), which allow users to choose between voltage and current inputs. The TU845 3BSE021447R1 Termination Unit is designed to handle a maximum rated voltage of 50 V and a maximum rated current of 2 A per channel.
The TU845 3BSE021447R1 Termination Unit efficiently manages the distribution of two ModuleBuses, one to each connected I/O module and the next MTU in the series. It also generates the correct address for the I/O modules by shifting outgoing position signals to the next TU845 3BSE021447R1 Termination Unit, ensuring smooth communication within the system. For secure installation, the TU845 3BSE021447R1 Termination Unit includes a mechanical latch that locks the MTU firmly to the DIN rail.
Additionally, the TU845 3BSE021447R1 Termination Unit features four mechanical keys for configuring the MTU to support different types of I/O modules. With each key offering six positions, this provides a total of 36 possible configurations, making the TU845 3BSE021447R1 Termination Unit highly adaptable to a range of industrial applications.
Features and benefits
Complete installation of I/O modules using 2-wire connections and field power distribution.
Up to 8 channels of field signals and process power connections.
Connections to two ModuleBuses and I/O modules.
Mechanical keying prevents insertion of the wrong I/Omodule.
Latching device to DIN rail for grounding.
DIN rail mounting.
