ABB TU842 3BSE020850R1 Redundant Module Termination Unit

TU842 3BSE020850R1
TU842 3BSE020850R1
TU842 3BSE020850R1

TU842 3BSE020850R1 Product datasheet

Model number:

TU842 3BSE020850R1



Module Type:

Redundant Module Termination Unit

Manufacture:

ABB



Condition:

Brand New

Range of Product:

S800 I/O



Lead time:

In Stock

Weight:

0.6kg



HS CODE:

8537101190

Dimension:

18.5x13x6cm



MOQ:

1

Product Origin:

SWEDEN



System:

DCS

Discontinued on:

Active



Communication Service:

Ethernet router



TU842 3BSE020850R1 Functional Description

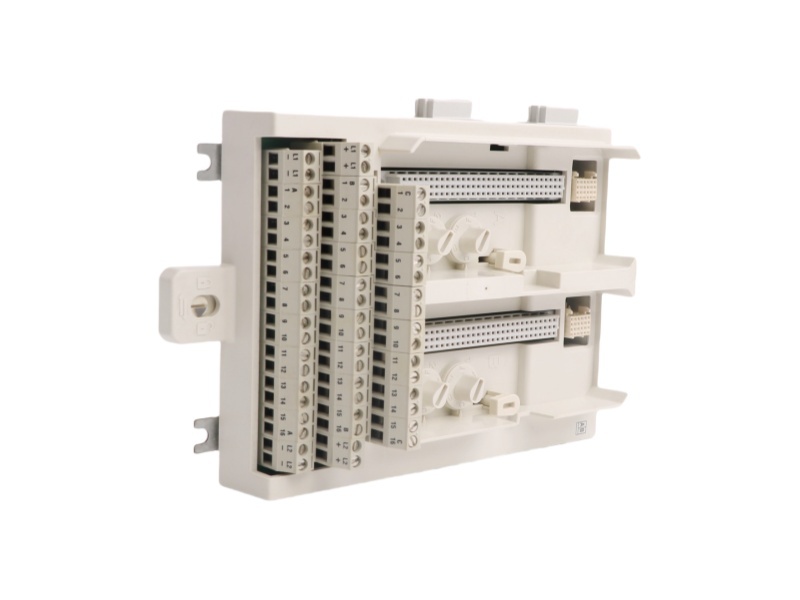

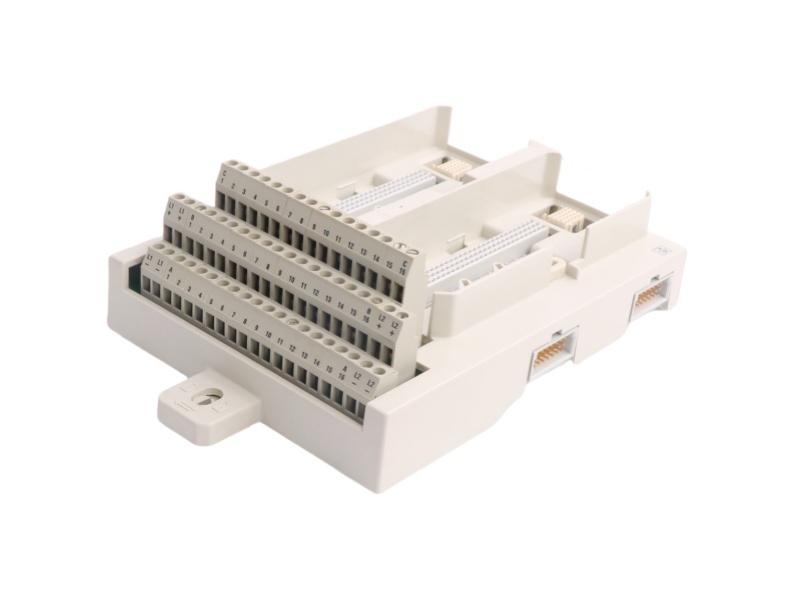

The TU842 3BSE020850R1 Redundant Module Termination Unit is designed to support up to 16 I/O channels and 2+2 process voltage connections, offering enhanced flexibility for industrial automation systems. Each channel of the TU842 Redundant Module Termination Unit includes two I/O connections and one ZP connection, making it suitable for a wide range of applications. With a maximum rated voltage of 50 V and a current capacity of 3 A per channel, the TU842 3BSE020850R1 Redundant Module Termination Unit is ideal for demanding environments where reliability and high performance are critical.

The TU842 3BSE020850R1 Redundant Module Termination Unit effectively distributes the two ModuleBuses—one to each I/O module and the next MTU in the network—ensuring seamless data flow across the system. It also generates the correct address for each I/O module by shifting outgoing position signals to the next TU842 3BSE020850R1 Redundant Module Termination Unit unit, facilitating smooth communication and system synchronization.

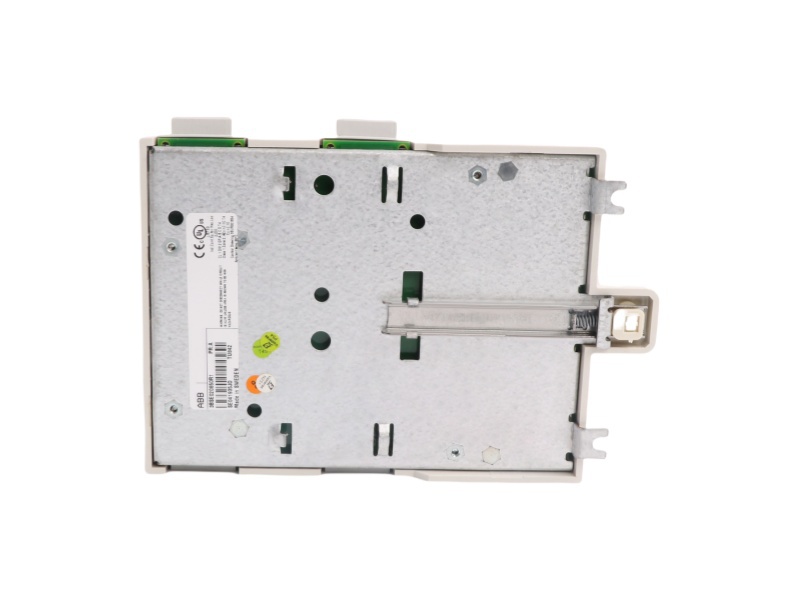

Designed for easy installation, the TU842 Redundant Module Termination Unit can be mounted on a standard DIN rail, and features a mechanical latch that secures the unit firmly in place. To accommodate various I/O module types, the TU842 3BSE020850R1 Redundant Module Termination Unit includes four mechanical keys, two for each module, offering up to 36 different configuration possibilities. This mechanical setup does not interfere with the functionality of the MTU or I/O modules, ensuring optimal operation in a wide range of industrial applications.



Features and benefits

Complete installation of I/O modules using 3-wire connections and field power distribution.

Up to 16 channels of field signals and process power connections.

Connections to two ModuleBuses and I/O modules.

Mechanical keying prevents insertion of the wrong I/O module.

Latching device to DIN rail for grounding.

DIN rail mounting.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




ABB

TU921S 3KDE175111L9210

ABB

TU515 1SAP212200R0001

ABB

TC570 3BSE001458R1

ABB

TU890 3BSC690075R1

ABB

TPS02

ABB

TC562 3BSC630049R1

ABB

TU846 3BSE022460R1

ABB

TPC-1570H 3BHE031734R1011

ABB

TC530 3BUR000101R1

ABB

TU845 3BSE021447R1

ABB

TK851V010 3BSC950262R1

ABB

TC520 3BSE001449R1

ABB

TU843 3BSE021443R1

ABB

TK851V010 3BSC950262R

ABB

TC516 3BSE012632R1

ABB

TU842 3BSE020850R1

ABB

TK850V007 3BSC950192R1

ABB

TC513 3BSE006385R1

ABB

TU831V1 3BSE013235R1

ABB

TK821V020 3BSC950202R1

ABB

TC512V1 3BSE018059R1

ABB

TU818V1 3BSE069209R1

ABB

TD951F 3BDH001020R0001

ABB

TB807 3BSE008538R1

ABB

TU811V1 3BSE013231R1

ABB

TC630 3BSE002253R1

ABB

TB820V2 3BSE013208R1

ABB

TU532-XC 1SAP417000R0001

ABB

TC625 3BSE002224R1

ABB

TB511-ETH-XC 1SAP311100R0270



S800 I/O System Introduction


The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are combined to form an I/O Station. The S800 I/O can be used in both single and redundant applications. In general, all S800 units are G3 compliant. G3 compliant modules withstand more severe environmental conditions according to ISA-S71.04. The following S800 units are G2 compliant - SD821, SD822, SD823, SD831, SD832, SD833, SD834, SS822, SS832, TB811 and CI830. G3 compliant versions of SD822 and SS822 are

also available (refer to SD822Z and SS822Z). All modules are marked with a bar code that shows the serial number, article ID and the product revision number. A separate bar code strip is also enclosed along with the module for placing on the module, if needed. The bar code is of type Bar-code 128. For more information, refer to S800 I/O Getting Started(3BSE020923*) manual. The S800 I/O can be categorized into:

• Module Termination Units (MTU)

• I/O modules – S800 I/O modules and S800L I/O modules.

S800 I/O modules are designed to be used together with a Module Termination Unit.

S800L I/O modules are designed to be directly mounted on a standard DIN rail.

The module also contains terminals for connections.
