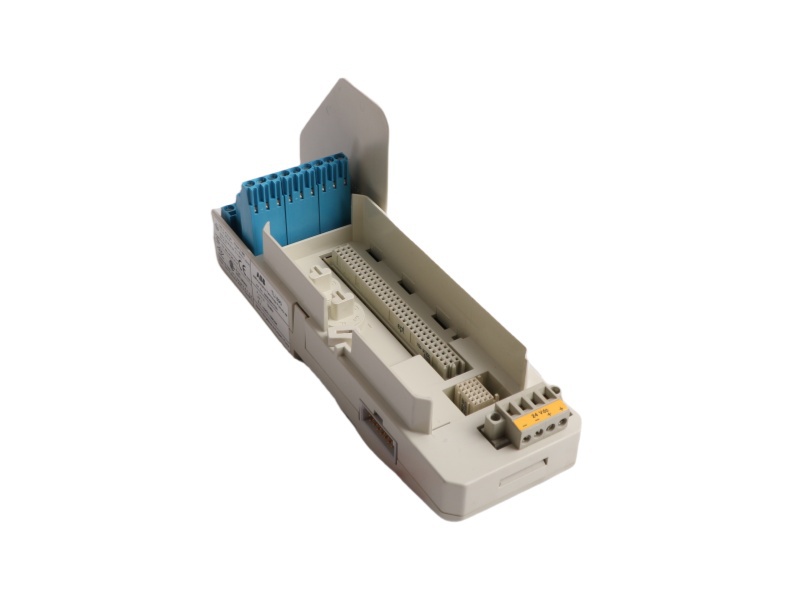

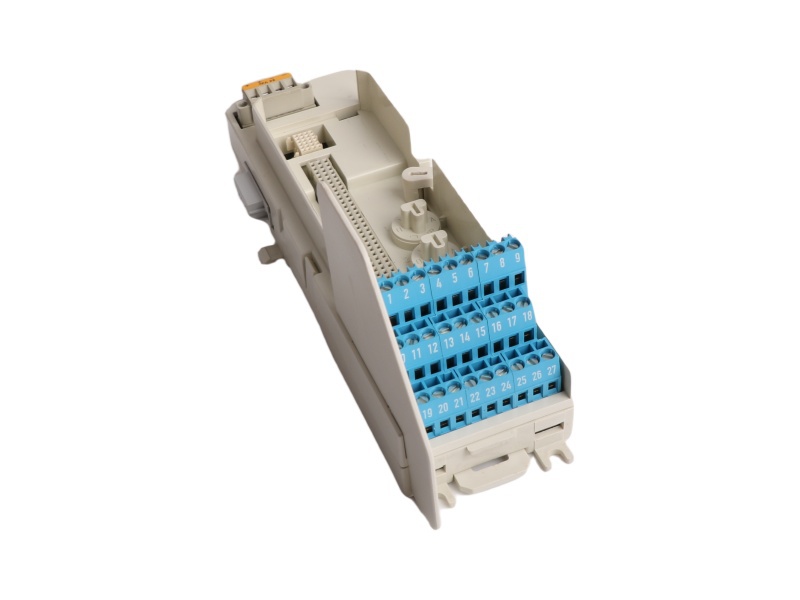

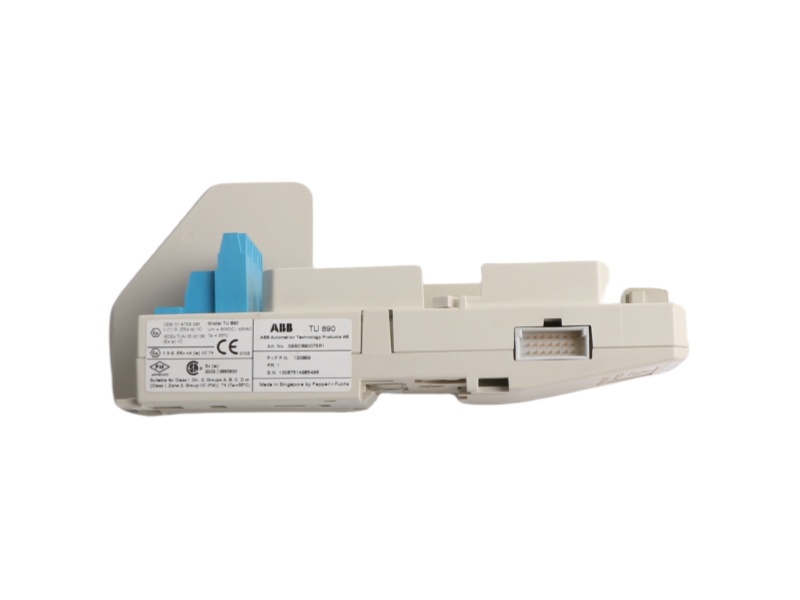

TU890 3BSC690075R1 Product datasheet
|
Model number: |
TU890 3BSC690075R1 |
|
Module Type： |
Module Termination Unit |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.22kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
21x6.5x8.8cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TU890 3BSC690075R1 Functional Description
The TU890 3BSC690075R Module Termination Unit is a compact and efficient solution designed for seamless integration within the S800 I/O system. As a passive unit, the TU890 3BSC690075R Module Termination Unit connects field wiring and power supplies to I/O modules while also incorporating a portion of the ModuleBus. This critical functionality ensures reliable communication between I/O modules in complex industrial automation systems.
The TU890 3BSC690075R Module Termination Unit features gray terminals for both field signals and process voltage connections, with a maximum rated voltage of 50 V and a maximum current of 2 A per channel. These ratings are tailored to meet the specific needs of I/O modules in their certified applications, ensuring optimal performance and reliability.
In addition to its signal distribution capabilities, the TU890 3BSC690075R Module Termination Unit plays a key role in managing the ModuleBus network. It distributes the ModuleBus to connected I/O modules and subsequent MTUs, while also generating the correct address for each I/O module by adjusting the outgoing position signals to the next unit.
The TU890 3BSC690075R Module Termination Unit is designed to ensure consistent, high-performance operation across all connected modules, making it an essential component in any industrial automation system.
Features and benefits
Intrinsic safety applications - use with AI890, AI893, AI895, AO890, AO895, DI890 and DO890
Compact installations of I/O modules
Field signals and process power connections
Connections to ModuleBus and I/O modules
Mechanical keying prevents insertion of the wrong module
Latching device to DIN rail
DIN rail mounting
