TU843 3BSE021443R1 Product datasheet
|
Model number: |
TU843 3BSE021443R1 |
|
Module Type： |
Compact Product Suite hardware selector |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.62kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
18.5x13x6.5cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
TU843 3BSE021443R1 Functional Description

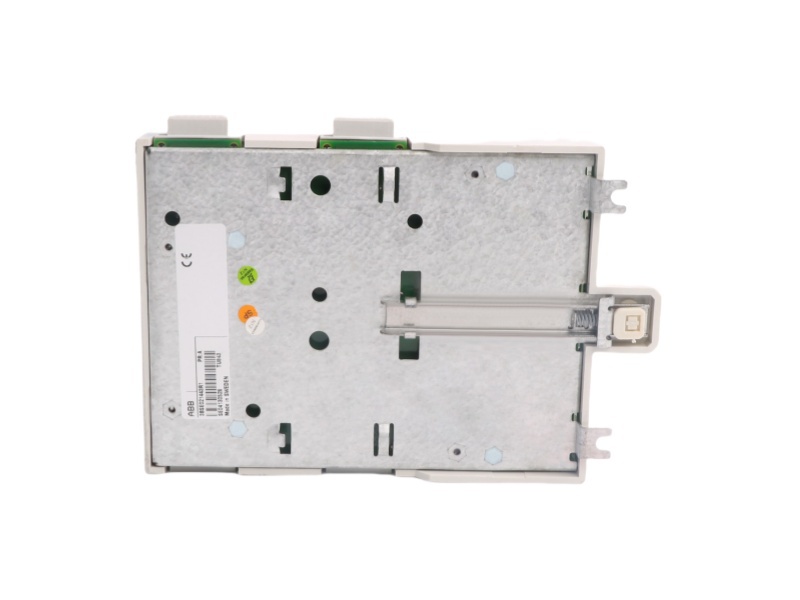

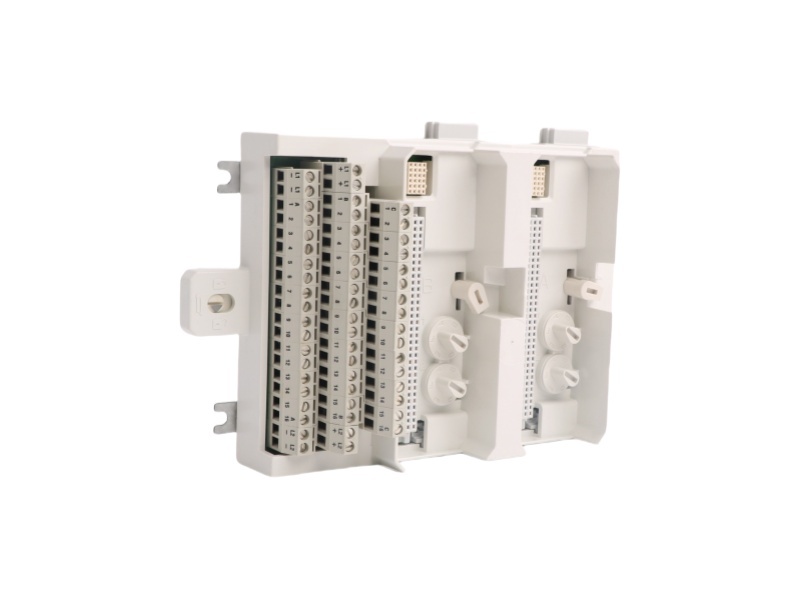

The ABB TU843 3BSE021443R1 Module Termination Unit (MTU) is designed to support up to 16 I/O channels and 2+2 process voltage connections, providing flexibility and scalability for industrial automation systems. Each channel on the ABB TU843 3BSE021443R1 offers two I/O connections and one ZP connection, enabling a wide range of input/output configurations. With a maximum rated voltage of 50 V and a current capacity of 3 A per channel, the ABB TU843 3BSE021443R1 is ideal for high-performance applications.
The ABB TU843 3BSE021443R1 efficiently handles the distribution of two ModuleBuses—one to each I/O module and one to the next MTU in the network. It also ensures the correct addressing of I/O modules by shifting outgoing position signals to subsequent units, facilitating seamless communication across the system.
The ABB TU843 3BSE021443R1 is designed for easy installation on a standard DIN rail, secured by a mechanical latch that locks the MTU in place. To accommodate various I/O module types, the ABB TU843 3BSE021443R1 includes four mechanical keys, two for each module, allowing for a total of 36 different configurations. This configuration is purely mechanical and does not impact the MTU or I/O module functionality, ensuring versatility in diverse industrial environments.
Features and benefits
Complete installation of I/O modules using 3-wire connections and field power distribution.
Up to 16 channels of field signals and process power connections.
Connections to two ModuleBuses and I/O modules.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ABB |
TU921S 3KDE175111L9210 |
ABB |
TU515 1SAP212200R0001 |
ABB |
TC570 3BSE001458R1 |
|
ABB |
TU890 3BSC690075R1 |
ABB |
TPS02 |
ABB |
TC562 3BSC630049R1 |
|
ABB |
TU846 3BSE022460R1 |
ABB |
TPC-1570H 3BHE031734R1011 |
ABB |
TC530 3BUR000101R1 |
|
ABB |
TU845 3BSE021447R1 |
ABB |
TK851V010 3BSC950262R1 |
ABB |
TC520 3BSE001449R1 |
|
ABB |
TU843 3BSE021443R1 |
ABB |
TK851V010 3BSC950262R |
ABB |
TC516 3BSE012632R1 |
|
ABB |
TU842 3BSE020850R1 |
ABB |
TK850V007 3BSC950192R1 |
ABB |
TC513 3BSE006385R1 |
|
ABB |
TU831V1 3BSE013235R1 |
ABB |
TK821V020 3BSC950202R1 |
ABB |
TC512V1 3BSE018059R1 |
|
ABB |
TU818V1 3BSE069209R1 |
ABB |
TD951F 3BDH001020R0001 |
ABB |
TB807 3BSE008538R1 |
|
ABB |
TU811V1 3BSE013231R1 |
ABB |
TC630 3BSE002253R1 |
ABB |
TB820V2 3BSE013208R1 |
|
ABB |
TU532-XC 1SAP417000R0001 |
ABB |
TC625 3BSE002224R1 |
ABB |
TB511-ETH-XC 1SAP311100R0270 |
S800 I/O System Introduction
The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are combined to form an I/O Station. The S800 I/O can be used in both single and redundant applications. In general, all S800 units are G3 compliant. G3 compliant modules withstand more severe environmental conditions according to ISA-S71.04. The following S800 units are G2 compliant - SD821, SD822, SD823, SD831, SD832, SD833, SD834, SS822, SS832, TB811 and CI830. G3 compliant versions of SD822 and SS822 are
also available (refer to SD822Z and SS822Z). All modules are marked with a bar code that shows the serial number, article ID and the product revision number. A separate bar code strip is also enclosed along with the module for placing on the module, if needed. The bar code is of type Bar-code 128. For more information, refer to S800 I/O Getting Started(3BSE020923*) manual. The S800 I/O can be categorized into:
• Module Termination Units (MTU)
• I/O modules – S800 I/O modules and S800L I/O modules.
S800 I/O modules are designed to be used together with a Module Termination Unit.
S800L I/O modules are designed to be directly mounted on a standard DIN rail.
The module also contains terminals for connections.
