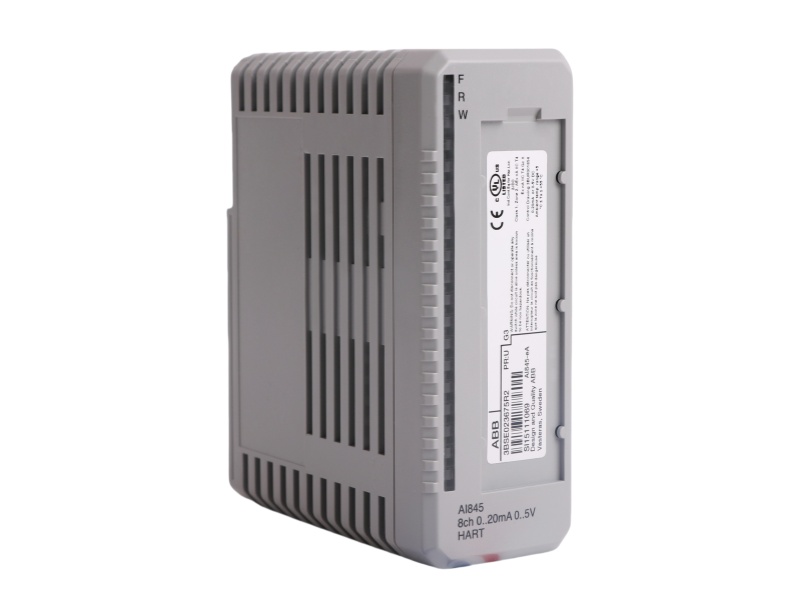

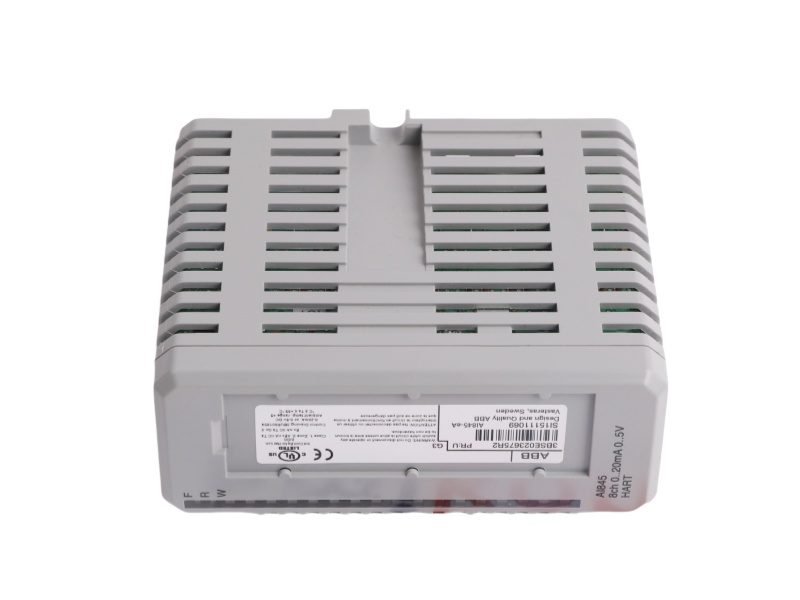

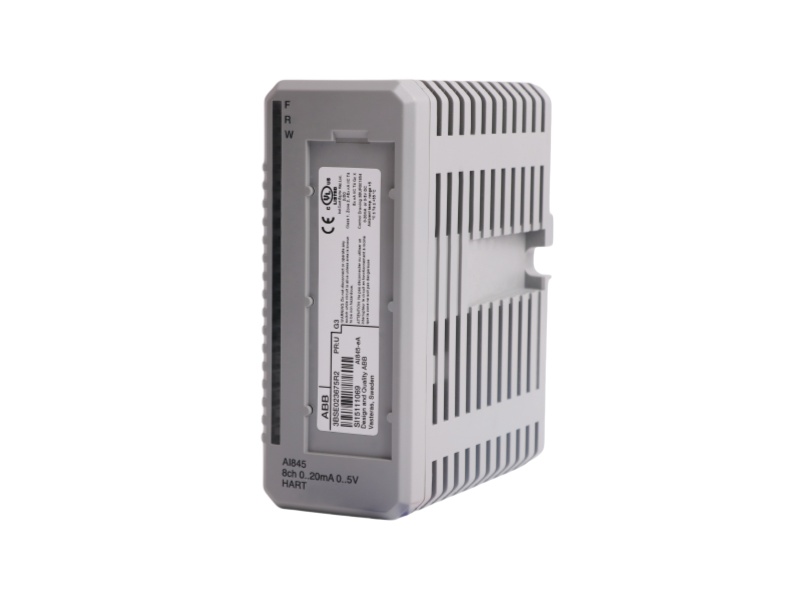

AI845-EA 3BSE023675R2 Product datasheet
|
Model number: |
AI845-EA 3BSE023675R2 |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
ABB |
|
Condition： |
Brand New |
|
Range of Product: |
S800 I/O |
|
Lead time： |
In Stock |
|
Weight: |
0.34 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
16x15.5x8cm |
|
MOQ: |
1 |
|
Product Origin: |
SWEDEN |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
AI845-EA 3BSE023675R2 Functional Description
The AI845-EA 3BSE023675R2 Analog Input Module from ABB is designed for high-performance data acquisition, offering precise and responsive monitoring for critical industrial applications. Engineered with advanced signal processing algorithms, the AI845-EA 3BSE023675R2 Advant 800xA AC800M module ensures accurate data collection and real-time control, essential for optimizing industrial operations.
Its robust and compact design enables seamless integration into existing control systems, enhancing overall efficiency without taking up unnecessary space. The AI845-EA 3BSE023675R2 Analog Input Module supports a wide range of analog signals, including both voltage and current inputs, making it versatile for various industrial processes and equipment.
Built with durability in mind, the AI845-EA 3BSE023675R2 Advant 800xA AC800M module is rated with IP67 protection, ensuring stable operation even in harsh environments, whether on manufacturing floors or outdoor installations. Additionally, the module complies with international safety standards, providing peace of mind for operators and ensuring optimal performance in diverse operational conditions.
Backed by ABB’s commitment to quality and customer satisfaction, the AI845-EA 3BSE023675R2 Advant 800xA AC800M module is a reliable choice for industries requiring precision and reliability in their analog input modules.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ABB |
AO920S 3KDE175531L9200 |
ABB |
AI931N 3KDE175513L9310 |
ABB |
AI830 3BSE008518R1 |
|
ABB |
AO920N 3KDE175533L9200 |
ABB |
AI930S 3KDE175511L9300 |
ABB |
AI635 3BHT300032R1 |
|
ABB |
AO895 3BSC690087R1 |
ABB |
AI930N 3KDE175513L9300 |
ABB |
AI630 3BHT300011R1 |
|
ABB |
AO810 3BSE008522R1 |
ABB |
AI910S 3KDE175511L9100 |
ABB |
AI625 3BHT300036R1 |
|
ABB |
AO801 3BSE020514R1 |
ABB |
AI910N 3KDE175513L9100 |
ABB |
AI620 3BHT300005R1 |
|
ABB |
AO650 3BHT300051R1 |
ABB |
AI895 3BSC690086R1 |
ABB |
AI610 3BHT300000R1 |
|
ABB |
AO610 3BHT300008R1 |
ABB |
AI890 3BSC690071R1 |
ABB |
AFC094AE01 HIEE200130R1 |
|
ABB |
AINT-14C 68685826 |
ABB |
AI86-16 57087196 |
ABB |
ACP201-02 3ADM2001132R0101 |
|
ABB |
AI950S 3KDE175521L9500 |
ABB |
AI845-EA 3BSE023675R2 |
ABB |
SA801F 3BDH000011R1 |
|
ABB |
AI950N 3KDE175523L9500 |
ABB |
AI835 3BSE008520R1 |
ABB |
TB511-ETH-XC 1SAP311100R0270 |
S800 I/O system Introduction
The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are combined to form an I/O Station. The S800 I/O can be used in both single and
redundant applications.
In general, all S800 units are G3 compliant. G3 compliant modules withstand more severe environmental conditions according to ISA-S71.04. The following S800 units are G2 compliant - SD821, SD822, SD823, SD831, SD832, SD833, SD834, SS822, SS832, TB811 and CI830. G3 compliant versions of SD822 and SS822 are
also available (refer to SD822Z and SS822Z).
All modules are marked with a bar code that shows the serial number, article ID and the product revision number. A separate bar code strip is also enclosed along with the module for placing on the module, if needed. The bar code is of type Bar-code 128.
For more information, refer to S800 I/O Getting Started(3BSE020923*) manual.
The S800 I/O can be categorized into:
• Module Termination Units (MTU)
• I/O modules – S800 I/O modules and S800L I/O modules.
S800 I/O modules are designed to be used together with a Module Termination Unit.
S800L I/O modules are designed to be directly mounted on a standard DIN rail.
The module also contains terminals for connections.
