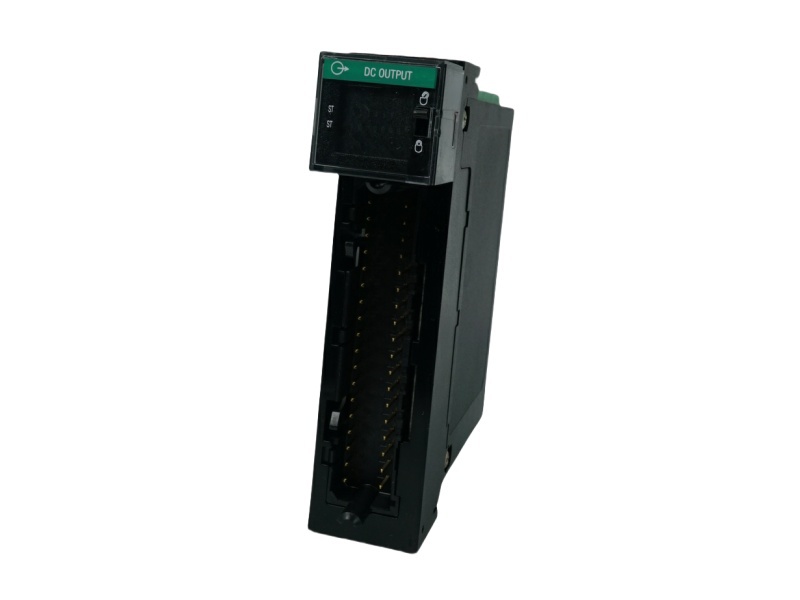

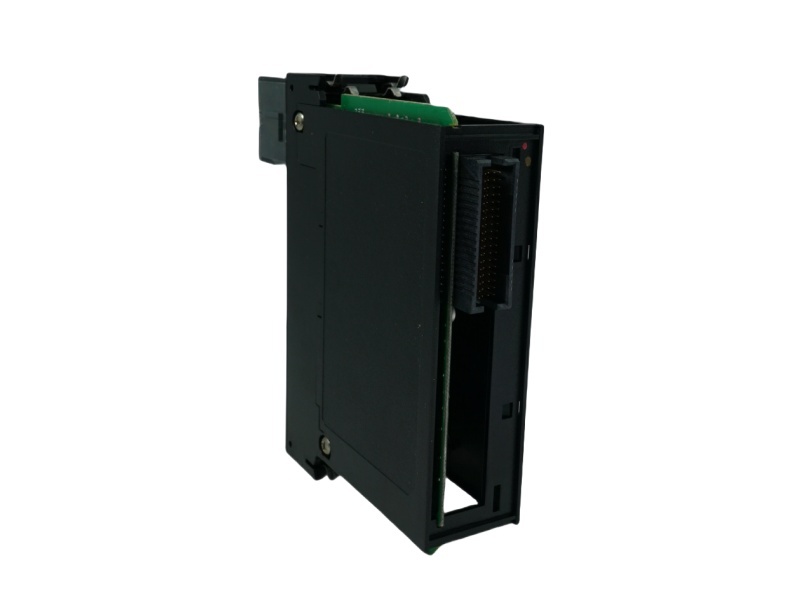

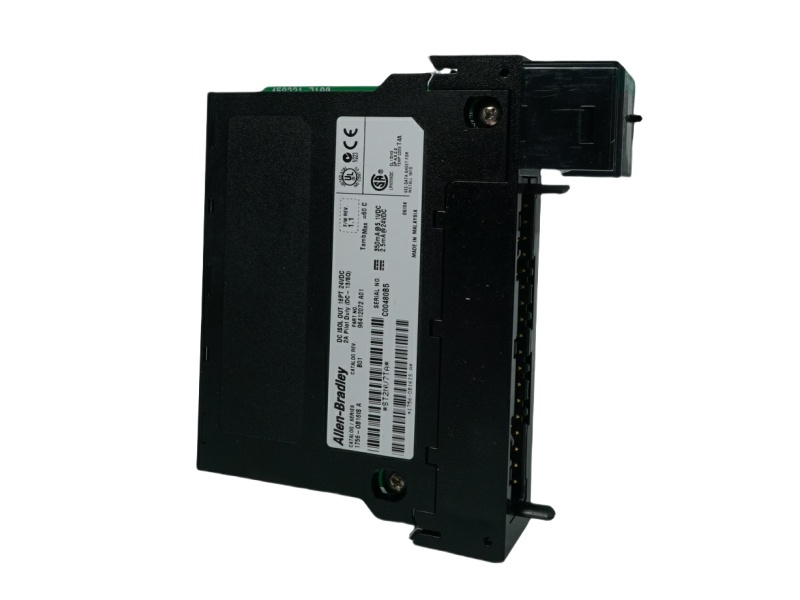

Allen-Bradley 1756-OB16IS Digital Output Module

Allen-Bradley 1756-OB16IS
Allen-Bradley 1756-OB16IS
Allen-Bradley 1756-OB16IS

1756-OB16IS Product datasheet

Model number:

1756-OB16IS



Module Type:

Digital Output Module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.2kg



HS CODE:

8537101190

Dimension:

3.5x14.2x14.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-OB16IS Functional Description


The 1756-OB16IS ControlLogix Output Module by Allen-Bradley is a high-performance output module designed for use in the 1756 Chassis. This module features 16 individually isolated sinking/sourcing outputs, with 8 of the outputs being scheduled. It operates within a voltage range of 0-30V DC and offers a 2A contact rating (DC-13SQ). With a fast signal response, the module has an OFF to ON delay time of 1ms and ON to OFF delay of 2ms. It draws 350mA at 5.1V DC and 2.5mA at 24V DC from the backplane, consuming a total power of 1.8W.



The 1756-OB16IS ControlLogix Output Module operates reliably in harsh conditions, with a maximum power dissipation of 3.6W at 60°C and a thermal dissipation of 12.28 BTU/hr. The maximum voltage loss when the outputs are ON is 1.2V DC at 2A, and each point has a leakage current of 0.5mA. The 1756-OB16IS ControlLogix Output Module can handle up to 8A/4A of current at 30/60°C with a surge current capability of 4A for 10ms, repeatable every 2 seconds on each output point. Each output point has a 1mA minimum load requirement.



In terms of synchronization, the 1756-OB16IS ControlLogix Output Module supports 8 scheduled outputs, synchronized within 16.7 seconds Coordinated System Time (CST). It offers fault state options (Hold last state, On, or Off), with Off as the default. The module provides 250V isolation between output-to-backplane and output-to-output, with basic insulation routine-tested at 1350V AC for 2 seconds. It meets North American T4A and IEC T4 temperature codes, and is suitable for operation in environments with a maximum ambient temperature of 60°C (140°F), 2G vibration, and 30G shock resistance.
