IC200MDD841 Product datasheet
|
Model number: |
IC200MDD841 |
|
Module Type： |
High-speed Counter Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
VersaMax |
|
Lead time： |
In Stock |
|
Weight: |
0.1 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
10.8 cm x 6.3 cm x 5.7 cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

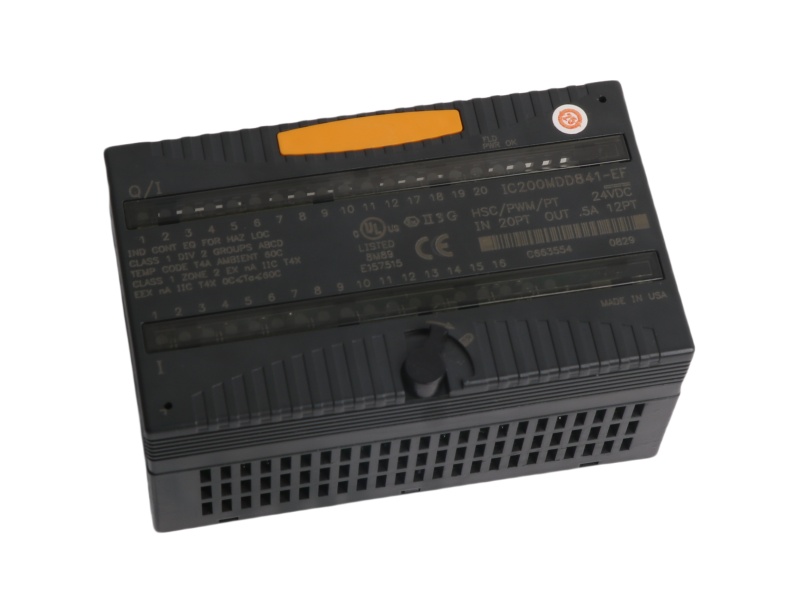

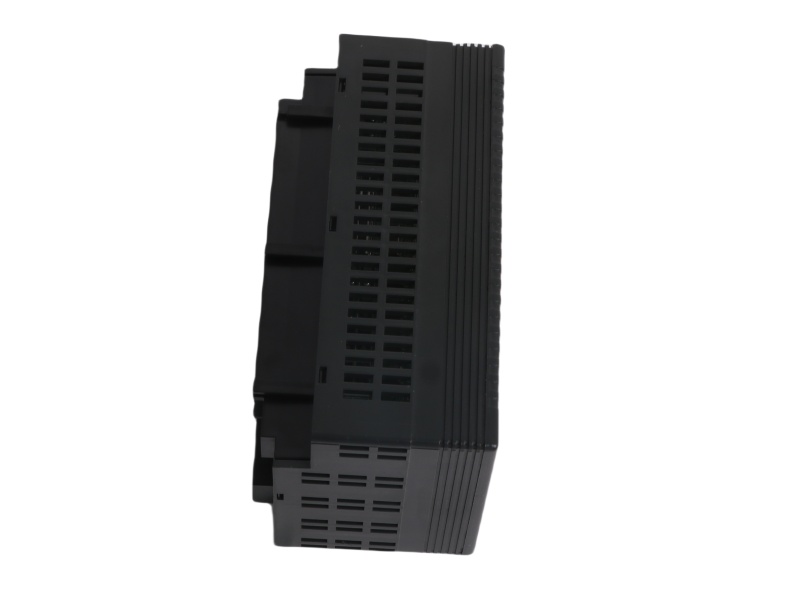

IC200MDD841 Functional Description
The GE Fanuc IC200MDD841 module is a versatile component within the Versamax series, designed for high-speed counting applications. This module (IC200MDD841) features a combination of 12 discrete outputs and 20 discrete inputs, all configurable for various functions. Notably, the IC200MDD841 supports high-speed counters operating at 80 kilohertz, crucial for demanding applications.
While the IC200MDD841 High-speed Counter Module lacks internal fuses or channel isolation, it offers flexibility with configurable I/O settings, including pulse width modulation, ramping pulse trains, and pulse trains. In its default configuration, the IC200MDD841 provides four high-speed counter pairs and eight standard outputs.
GE Fanuc IC200MDD841 Mixed Input-Output Module operates on 24 Volts DC and draws a current of 30 milliamps from the 5-Volt backplane power supply. External output devices require a separate power source. The IC200MDD841 incorporates error detection mechanisms and can display status data in up to 13 words. Onboard LEDs provide visual feedback on the module's operational status.
With its compact dimensions (66.8mm x 110mm x 50mm) and robust features, the GE Fanuc IC200MDD841 module (IC200MDD841) presents a valuable solution for a wide range of industrial automation and control applications requiring high-speed counting capabilities.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
VersaMax Micro, Micro PLUS and Nano PLC Models
Introduction
Versions of these compact, powerful controllers are available for AC and DC power, and with several different combinations of discrete and analog input and output points. This chapter compares the features of the many VersaMax Nano, Micro and Micro PLUS PLC models that are available. Micro PLUS 20/40/64 CPUs have enhanced memory compared to earlier versions of these CPUs. Firmware versions 4.00 and later cannot be used with the earlier hardware versions.
The VersaMax® PLC family of products includes a broad range of small-size programmable logic controllers (PLCs) with big-PLC features. The VersaMax family includes Nano PLCs (10 points), Micro PLCs (up to 176 I/O points), and Micro PLUS PLCs (up to 320 I/O points) using optional Expansion Units. These small PLCs are the perfect solution for applications such as packaging machines, dispensing machines, and relay replacement.
Changes to the program that do not modify the size of the program are considered wordfor-word changes. Examples include changing the type of contact or coil or changing a reference address used for an existing function block. Changing an operand is usually a word-for-word change. A word-for-word change can be made and downloaded to the PLC while online in programmer mode without having to download the entire block of logic.
