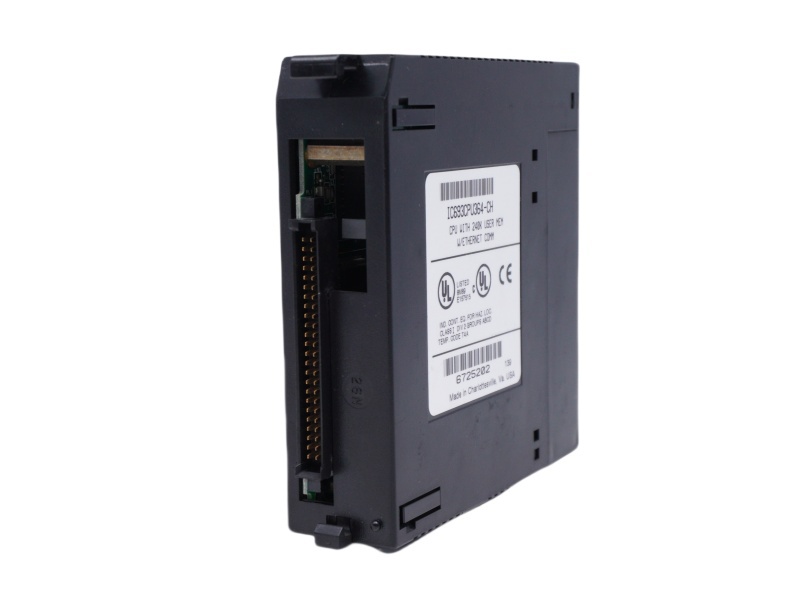

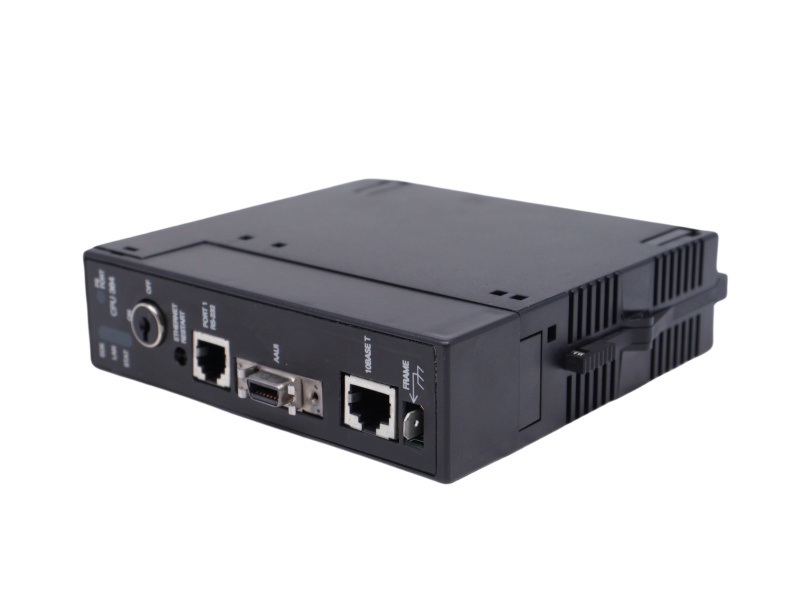

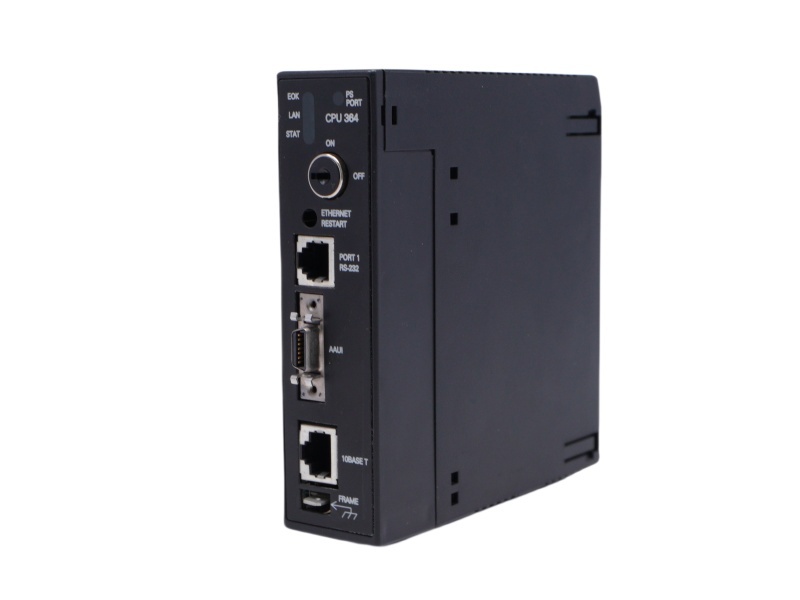

IC693CPU364 Product datasheet
|
Model number: |
IC693CPU364 |
|
Module Type： |
Single Slot CPU Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 |
|
Lead time： |
In Stock |
|
Weight: |
0.34 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693CPU364 Functional Description
The IC693CPU364 is a high-performance controller module from the GE Fanuc 90-30 series, specifically designed for industrial automation applications. Powered by an 80386EX processor running at 25 MHz, it offers impressive performance with a typical scan rate of 0.22 ms per 1K of logic for Boolean contacts. This fast processing speed makes it ideal for complex control systems where speed and reliability are crucial.
The IC693CPU364 high-performance controller module comes with 240KB of user memory, which can be configured based on the specific application needs, including variables and registers such as %R, %AI, and %AQ. In terms of I/O capacity, it supports up to 2,048 discrete inputs, 2,048 discrete outputs, and can handle a substantial amount of internal memory, including up to 1,280 bits of internal discrete global memory and 4,096 internal coils. The module also supports configurable analog inputs and outputs in 128-word increments, making it highly versatile for various automation tasks.
This IC693CPU364 high-performance controller module module features an Ethernet communication port for programming and system integration, as well as a serial port for additional connectivity. It can communicate through an embedded RS485 port, which is part of the power supply in the leftmost slot of the baseplate. The module can be installed in a single-slot width, and it supports up to eight baseplates, with one dedicated to the CPU and seven for remote I/O expansion.
With a power draw of 1.51 Amps at 5V DC, the IC693CPU364 high-performance controller module operates within a recommended temperature range of 0 to 60°C, ensuring stable operation in various industrial environments. Overall, it provides robust, scalable control solutions for a wide range of automation needs.
