GE Fanuc IC693MDL645 Advanced Logic Input Module

Inquiry now

IC693MDL645 Product datasheet

Model number:	IC693MDL645	Module Type：	Positive Logic Output Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.28 kg	HS CODE：	8537101190
Dimension:	3.5x13x13.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC693MDL645 Functional Description

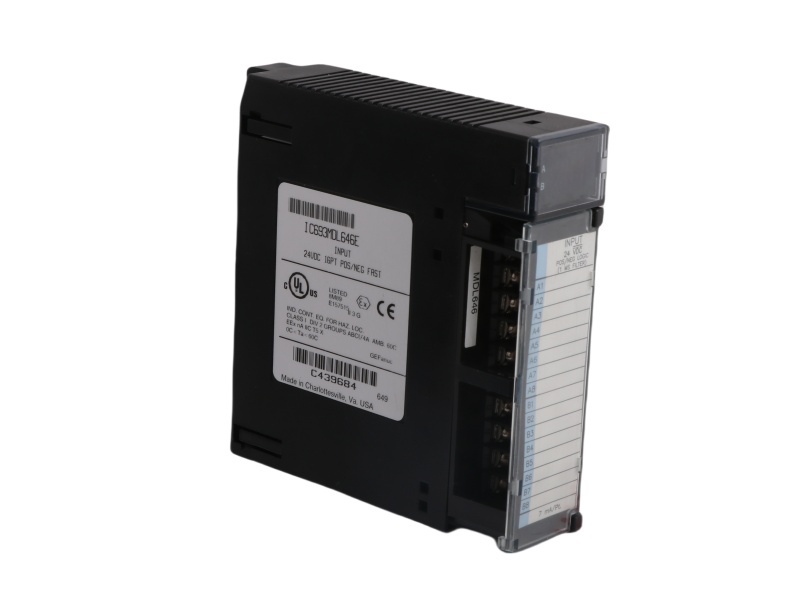

The IC693MDL646 is a versatile input module within the Series 90-30 PLC platform, previously produced by GE Fanuc and now manufactured by Emerson Automation. It is designed to handle 24 VDC input signals and supports both positive and negative logic wiring configurations. The module features a single group of 16 input channels, with a common power input terminal and a typical response time of 1 ms for both On and Off states.

This IC693MDL646 versatile input module is ideal for a wide range of binary or On/Off field devices like push buttons, switches, proximity sensors, and auxiliary contacts. It can accommodate an input voltage range from 0 to 30 VDC, with a nominal voltage of 24 VDC and an input current of 7 mA at the rated voltage. The input characteristics include an On state voltage of 11.5–30 VDC and an Off state voltage of 0–5 VDC. The module’s On state current is 3.2 mA minimum, and the Off state current is 1.1 mA maximum. Power consumption is 80 mA at 5 VDC and 125 mA at 24 VDC.

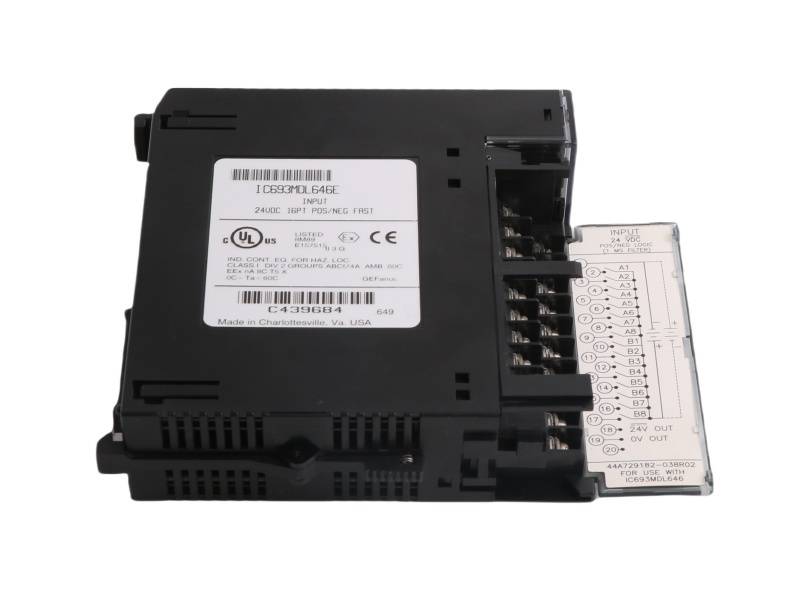

The IC693MDL646 versatile input module comes with 20 connection terminals, which are protected by a swing door. The swing door also includes wiring references for easy connection to devices and power sources. Additionally, the module is color-coded to indicate its low-voltage nature, and it is equipped with individual channel status LEDs as well as a Module OK LED to provide operational feedback.

In summary, the IC693MDL646 versatile input module is a reliable input module for the Series 90-30 PLC, offering high flexibility and ease of use for integrating various field devices into automated control systems.
