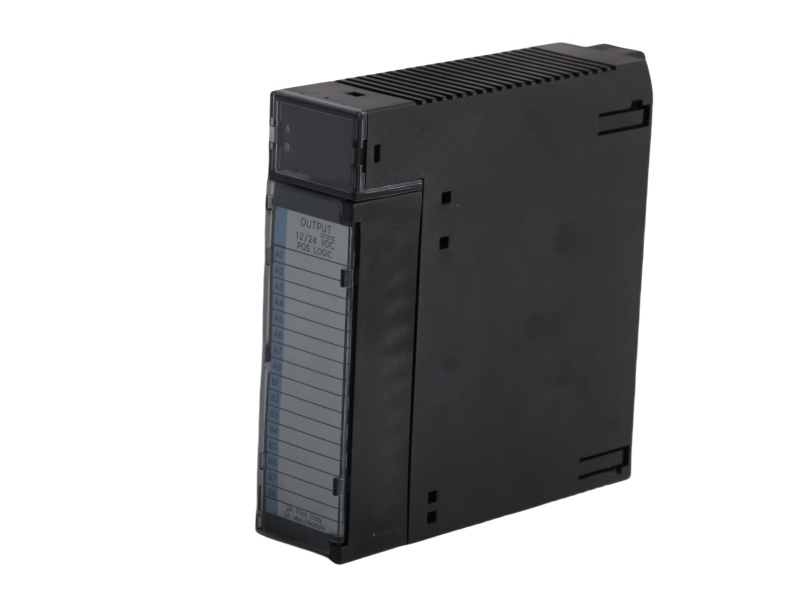

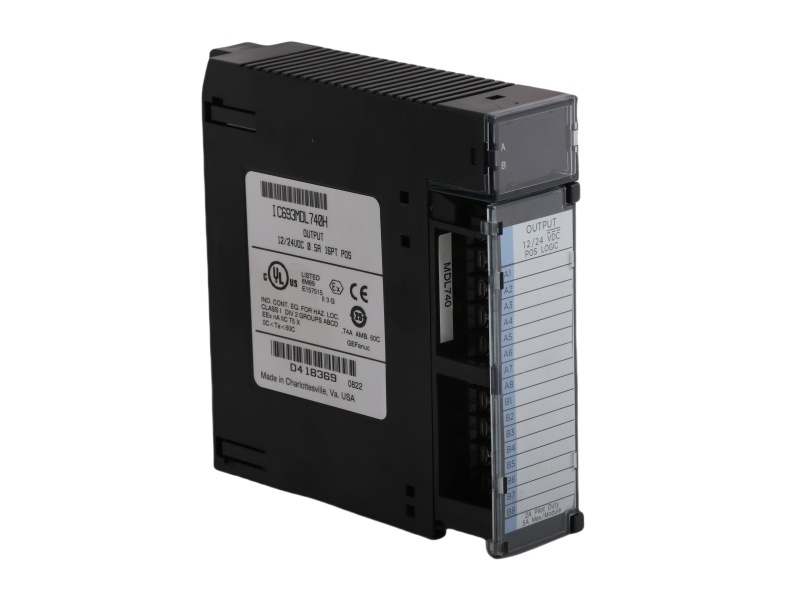

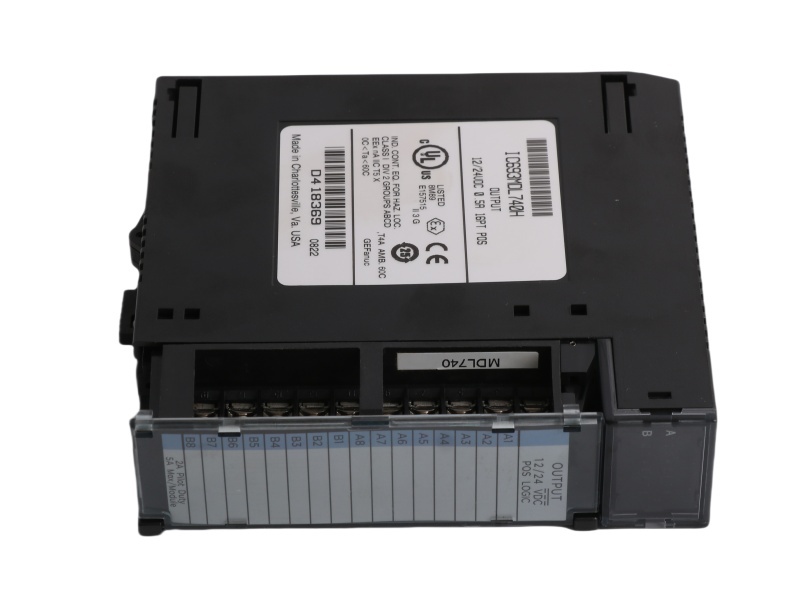

GE Fanuc IC693MDL740 Positive Logic Output Module

Inquiry now

IC693MDL740 Product datasheet

Model number:	IC693MDL740	Module Type：	Positive Logic Output Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	PACSystems™ RX3i	Lead time：	In Stock
Weight:	0.36 kg	HS CODE：	8537101190
Dimension:	3.5x13.2x13.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC693MDL740 Functional Description

The IC693MDL740 is a versatile module in the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) lineup. This module serves as a Positive Logic Output, designed to source current to connected loads from the module’s positive power bus. It features 16 output points, divided into two groups of 8 channels each, with each channel capable of handling a load of up to 0.5 Amps.

Equipped with front-panel LED indicators, the IC693MDL740 versatile module provides a clear visual representation of the status of each output channel as well as the overall operational state of the module. The module is compatible with various loads, such as relays, contactors, pilot lamps, buzzers, and 24VDC devices. Importantly, it does not include internal fusing, so external fuses are recommended for additional protection.

The IC693MDL740 versatile module is rated for 12-24V DC operation, with a voltage range of +20% to -15%. It exhibits a maximum inrush current of 4.78 Amps for 10 milliseconds, and its output voltage drop does not exceed 1 VDC. The module ensures rapid response times, with a maximum ON and OFF response time of 2 milliseconds each. It also features a low off-state leakage current of just 1 mA, ensuring minimal power loss when inactive.

When installed in a Series 90-30 baseplate, the IC693MDL740 versatile module can be placed in any available slot of a 5-slot or 10-slot baseplate. The number of modules that can be installed depends on the available memory in the PLC. With its reliable performance and ease of integration, the IC693MDL740 module is ideal for a variety of industrial automation applications.
