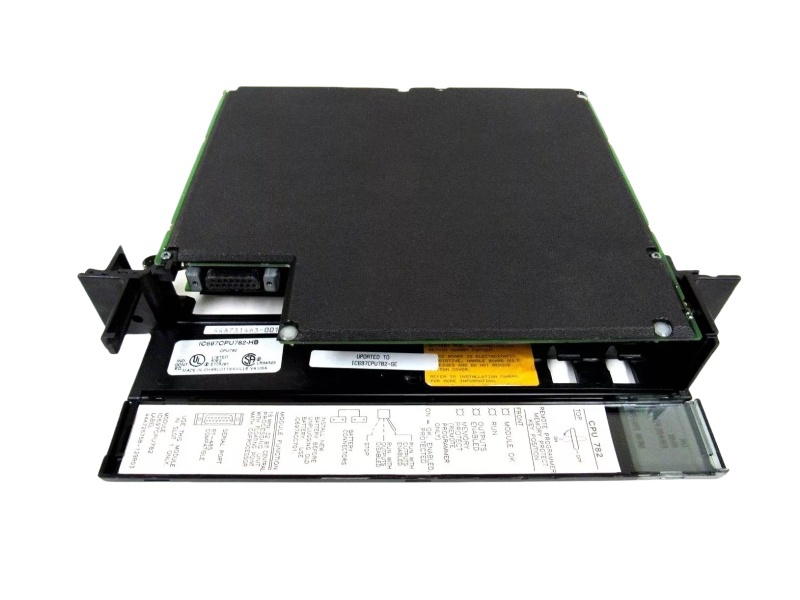

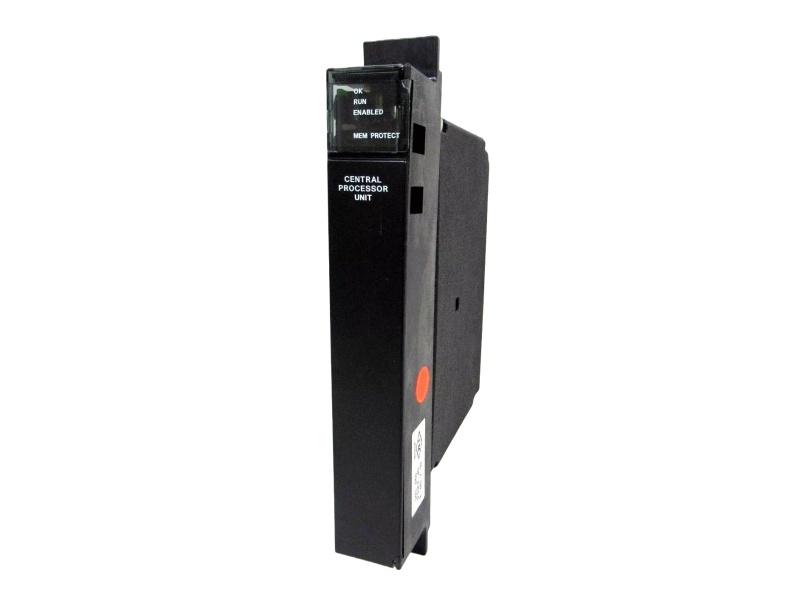

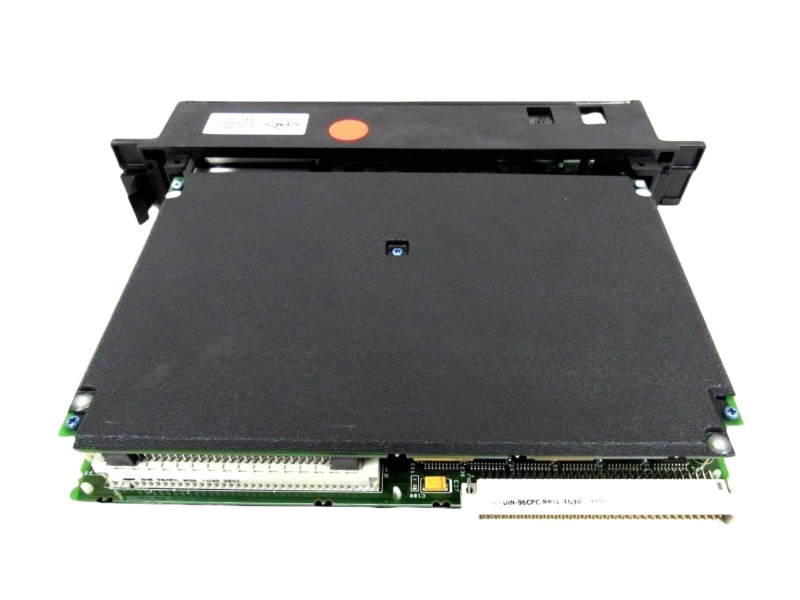

GE Fanuc IC697CPU782 Expandable Floating Point CPU

Inquiry now

IC697CPU782 Product datasheet

Model number:	IC697CPU782	Module Type：	Floating Point CPU
Manufacture:	GE	Condition：	Brand New
Range of Product:	Series 90-70	Lead time：	In Stock
Weight:	0.62 kg	HS CODE：	8537101190
Dimension:	4x21.8x29.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC697CPU782 Functional Description

The IC697CPU782 is a high-performance processor module designed for use in the GE Fanuc Series 90-70 Programmable Logic Controllers (PLCs). Operating at a speed of 16 MHz with an 80386DX microprocessor, the IC697CPU782 high-performance processor module delivers exceptional Boolean execution performance, achieving a speed of 0.4 microseconds per function. The module supports a significant I/O capacity, handling up to 12 Kbytes of discrete input/output data and 8 Kbytes for analog inputs and outputs. Additionally, it can accommodate 512 KB of expansion memory, allowing for enhanced program and data storage.

This CPU module is programmed via Logicmaster 90-70, VersaPro Professional Edition, or Proficy Machine Edition Logic Developer PLC Professional Edition, all of which are compatible with MS-DOS or Windows environments. The IC697CPU782 high-performance processor module is well-equipped for advanced calculations, including floating point operations, comparisons, and supporting internal software controllers like the Proportional-Integral-Derivative (PID) controller. The module is also designed for use with various I/O and smart option modules connected via the VME C.1 Standard backplane, making it highly versatile in different automation configurations.

The IC697CPU782 high-performance processor module also incorporates security features such as a key switch memory protection to safeguard against unauthorized access and modifications. The lithium battery (IC697ACC701) ensures that the RAM memory retains its data for up to 6 months without power, with a shelf life of 10 years.

Rated for industrial environments, IC697CPU782 high-performance processor module operates in temperatures ranging from 0 to 60°C, with storage temperatures between -40 to 85°C. It is built to withstand 1 G vibration and 15 G shock ratings, making it a durable choice for rugged settings. The module fits into 9-slot or 5-slot racks, and slot 1 is reserved for the CPU. It can be programmed through serial, parallel, or Ethernet connections with optional communication modules for network integration.

With its robust features and compatibility, the IC697CPU782 high-performance processor module is ideal for complex, high-demand industrial automation tasks.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Series 90-70 PLC

With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.

Open Architecture

Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).

Various Degrees of Redundancy

Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.

• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.

• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.

• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
