Allen-Bradley 1756-M02AE Motion Module Replacement

Allen-Bradley 1756-M02AE
Allen-Bradley 1756-M02AE
Allen-Bradley 1756-M02AE

1756-M02AE Product datasheet

Model number:

1756-M02AE



Module Type:

Motion Module Replacement

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.36kg



HS CODE:

8537101190

Dimension:

3.5x14.2x14.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

March 15, 2024



Communication Service:

Ethernet router



1756-M02AE Functional Description

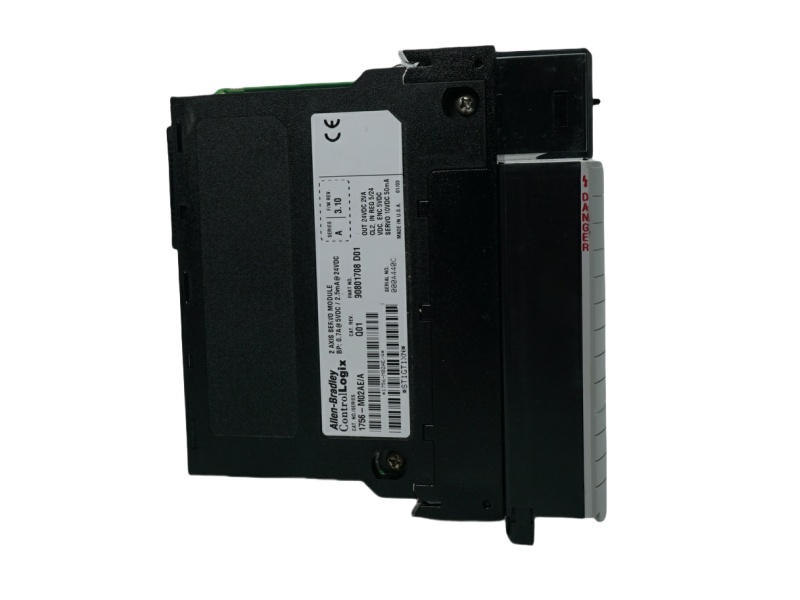

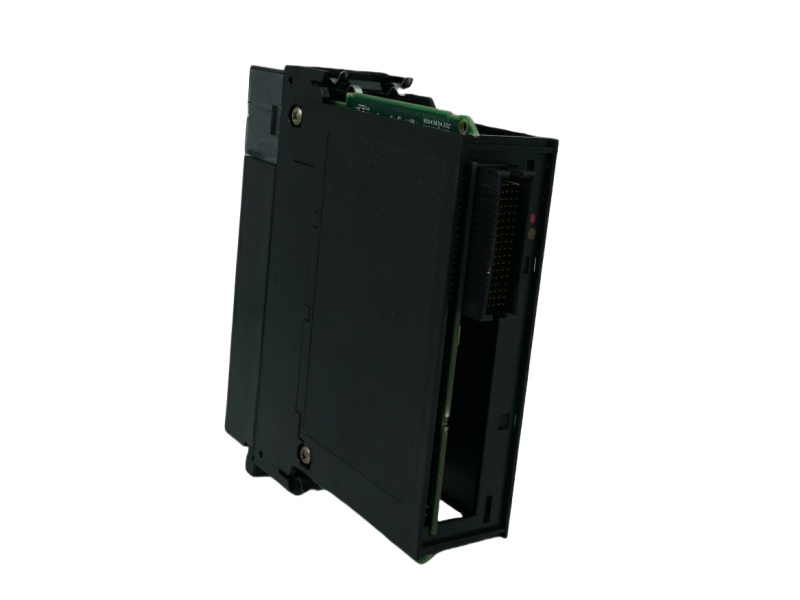

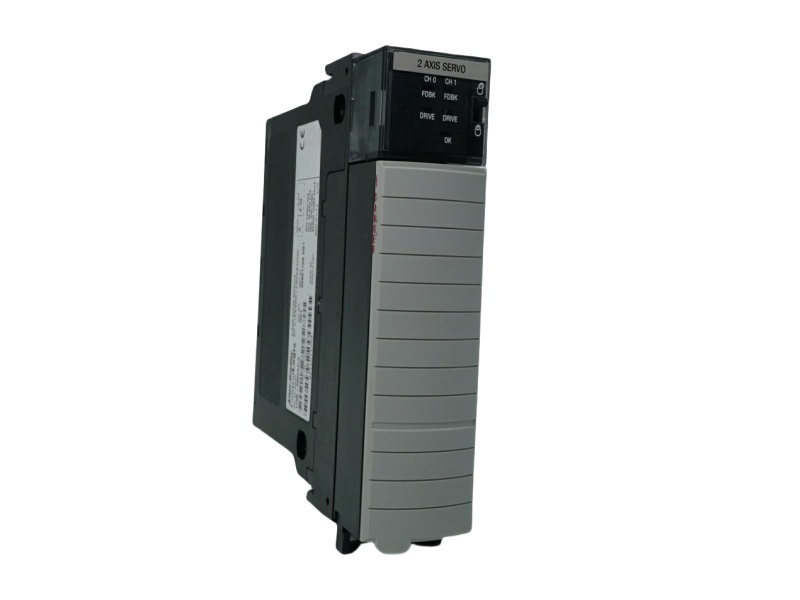

The Allen-Bradley 1756-M02AE is an advanced analog encoder module designed for motion control applications. This module supports two axes and provides quadrature-position feedback, making it suitable for controlling drives or actuators that require a +/- 10V velocity or torque reference input. The 1756-M02AE ensures that the actuator accurately follows the desired motion profile by using feedback from a quadrature encoder input. It can interface with various rotary and linear transducers that use quadrature-output.



1756-M02AE advanced analog encoder module is compatible with several ControlLogix chassis, including models like the 1756-A4, 1756-A7, 1756-A10, and others. It requires an RTB (Removable Terminal Block) such as the 1756-TBCH or the 1756-TBS6H for proper installation. The 1756-M02AE features a fast loop update rate of 500 microseconds for position and 250 microseconds for velocity, with a torque loop bandwidth of 106 Hz. The module’s digital position and velocity servo loop is controlled by a nested PI algorithm.



In terms of input, the Allen-Bradley 1756-M02AE Analog Encoder (AE) Servo Module accepts incremental AB quadrature encoder signals, with a maximum encoder rate of 4 MHz. The encoder mode is 4X quadrature, and it has a position range of +/- 1,000,000,000 encoder counts. The module draws 700 mA at 5V DC and consumes 3.63 W of power, with a power dissipation of 5.5 W. Its electrical interface is optically isolated, providing protection against electrical noise and interference.



The 1756-M02AE Controllogix 3 Axis Sercos Servo Module also includes features such as home limit switch inputs, drive fault inputs, and drive enable outputs. This module offers flexibility in motion control, providing both open-loop and closed-loop operation, with compatibility for up to 32 axes when used with additional modules. It is ideal for applications requiring precise analog control and feedback.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1756-TBCH

Allen Bradley

1756-SYNCH

Allen Bradley

1756-SIM

Allen Bradley

1756-RIO

Allen Bradley

1756-PB75R

Allen Bradley

1756-PB72

Allen Bradley

1756-OX8I

Allen Bradley

1756-OV16E

Allen Bradley

1756-OG16

Allen Bradley

1756-OF6VI

Allen Bradley

1756-OB16IS

Allen Bradley

1756-OB16E

Allen Bradley

1756-OA8E

Allen Bradley

1756-OA8D

Allen Bradley

1756-OA16

Allen Bradley

1756-M03SE

Allen Bradley

1756-M02AE

Allen Bradley

1756-OA16I

Allen Bradley

1756-M08SE

Allen Bradley

1756-LSP

Allen Bradley

1756-L63S

Allen Bradley

1756-M16SE

Allen Bradley

1756-L72S

Allen Bradley

1756-L63XT

Allen Bradley

1756-L62

Allen Bradley

1756-L71S

Allen Bradley

1756-L61

Allen Bradley

756-L63

Allen Bradley

1756-L71

Allen Bradley

1756-L65







ControlLogix System Overview


The ControlLogix system provides discrete, drives, motion, process, and safety control together with communication and state-of-the-art

I/O in a small, cost-competitive package. The system is modular, so you can design, build, and modify it efficiently with significant savings in

training and engineering.

A simple ControlLogix system consists of a standalone controller and I/O modules in one chassis. For a more comprehensive system, use the

following:

• Multiple controllers in one chassis

• Multiple controllers joined across networks

• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O links

• Select ControlLogix products are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive

environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.

The ControlLogix controller is part of the Logix 5000™ family of controllers.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links. ControlLogix controllers

can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and

many third-party process and device networks.

• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.

Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over

networks) but operate independently.

• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the

chassis. ControlLogix 5580 controllers have a built-in EtherNet/IP port.
