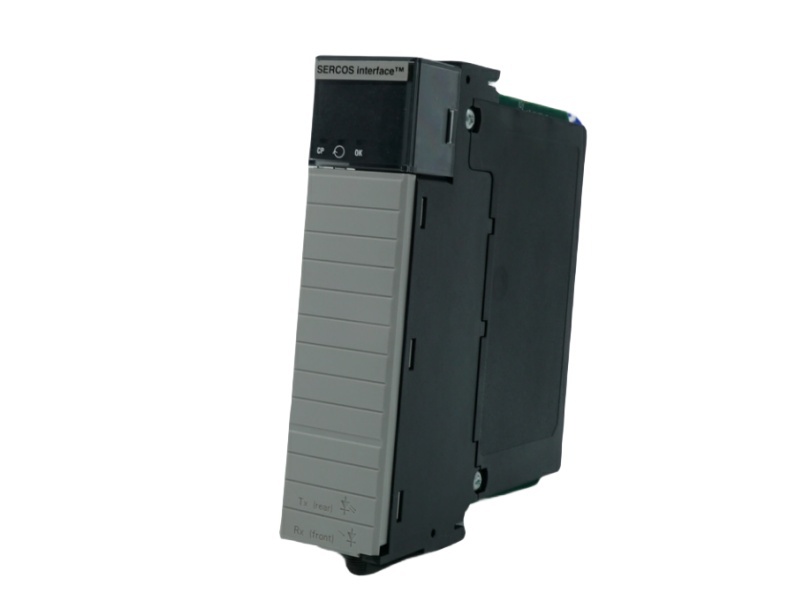

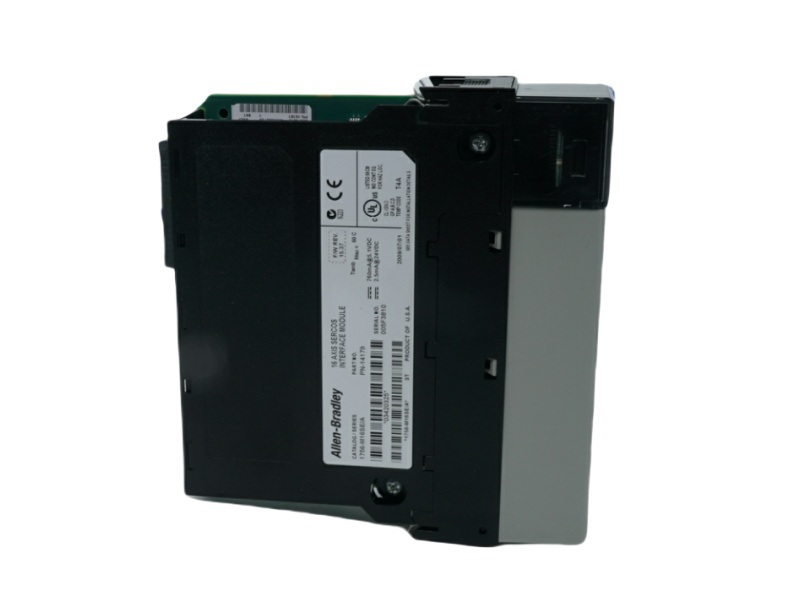

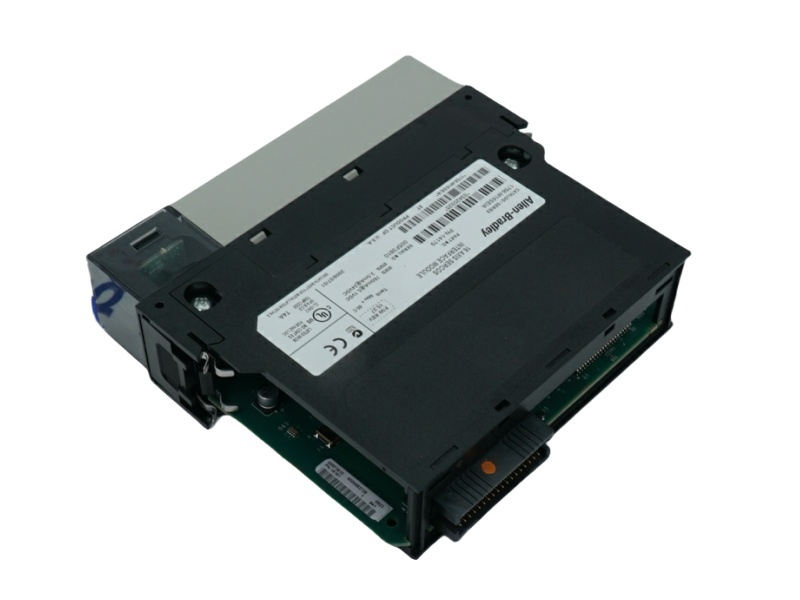

1756-M16SE Product datasheet
Model number: |
1756-M16SE |
|
Module Type: |
SERCOS interface Module |
Manufacture: |
Allen-Bradley |
|
Condition: |
Brand New |
Range of Product: |
ControlLogix |
|
Lead time: |
In Stock |
Weight: |
0.22kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.5x14x14.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
1756-M16SE Functional Description
The 1756-M16SE is a powerful interface module designed for the Allen-Bradley ControlLogix platform, offering seamless communication with Kinetix servo drives through the SERCOS interface. This open-controller module uses digital fiber-optic links, eliminating the need for traditional wiring for each axis, thereby simplifying setup and reducing noise interference. The 1756-M16SE is a powerful interface module supports up to 16 servo axes per module and 32 axes per controller, making it ideal for complex motion control systems.
With a SERCOS data rate of 4 or 8 Mbps, the 1756-M16SE Discrete Output Module ensures real-time, high-speed communication between the controller and connected drives. The cycle time varies depending on the data rate: 1 ms for up to four drives at 4 Mbps, and 0.5 ms for up to four drives at 8 Mbps. This makes it highly efficient for controlling multiple drives with precision. The module supports various control modes, including velocity, torque, and position, which are crucial for high-performance applications.
The 1756-M16SE Discrete Output Module connects to various Kinetix drives, including the 2093 Kinetix 2000, 2094 Kinetix 6000, 2099 Kinetix 7000, and 2098 Ultra3000 servo drives, allowing for versatile and flexible configurations. It also features compatibility with multiple ControlLogix chassis, such as the 1756-A4 and 1756-A7, and works with both standard and redundant system configurations.
Designed for ease of installation and use, the 1756-M16SE Terminal Block ensures reliable operation in demanding environments, with fiber-optic cable options and an open-type enclosure rating, ideal for high-precision motion control systems.
If you have other request contact our team to get customized service
Allen Bradley |
1756-TBCH |
Allen Bradley |
1756-SYNCH |
Allen Bradley |
1756-SIM |
Allen Bradley |
1756-RIO |
Allen Bradley |
1756-PB75R |
Allen Bradley |
1756-PB72 |
Allen Bradley |
1756-OX8I |
Allen Bradley |
1756-OV16E |
Allen Bradley |
1756-OG16 |
Allen Bradley |
1756-OF6VI |
Allen Bradley |
1756-OB16IS |
Allen Bradley |
1756-OB16E |
Allen Bradley |
1756-OA8E |
Allen Bradley |
1756-OA8D |
Allen Bradley |
1756-OA16 |
Allen Bradley |
1756-M03SE |
Allen Bradley |
1756-M02AE |
Allen Bradley |
1756-OA16I |
Allen Bradley |
1756-M08SE |
Allen Bradley |
1756-LSP |
Allen Bradley |
1756-L63S |
Allen Bradley |
1756-M16SE |
Allen Bradley |
1756-L72S |
Allen Bradley |
1756-L63XT |
Allen Bradley |
1756-L62 |
Allen Bradley |
1756-L71S |
Allen Bradley |
1756-L61 |
Allen Bradley |
756-L63 |
Allen Bradley |
1756-L71 |
Allen Bradley |
1756-L65 |
ControlLogix System Overview
The ControlLogix system provides discrete, drives, motion, process, and safety control together with communication and state-of-the-art
I/O in a small, cost-competitive package. The system is modular, so you can design, build, and modify it efficiently with significant savings in
training and engineering.
A simple ControlLogix system consists of a standalone controller and I/O modules in one chassis. For a more comprehensive system, use the
following:
• Multiple controllers in one chassis
• Multiple controllers joined across networks
• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O links
• Select ControlLogix products are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive
environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.
The ControlLogix controller is part of the Logix 5000™ family of controllers.
• ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links. ControlLogix controllers
can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and
many third-party process and device networks.
• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.
Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over
networks) but operate independently.
• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the
chassis. ControlLogix 5580 controllers have a built-in EtherNet/IP port.
