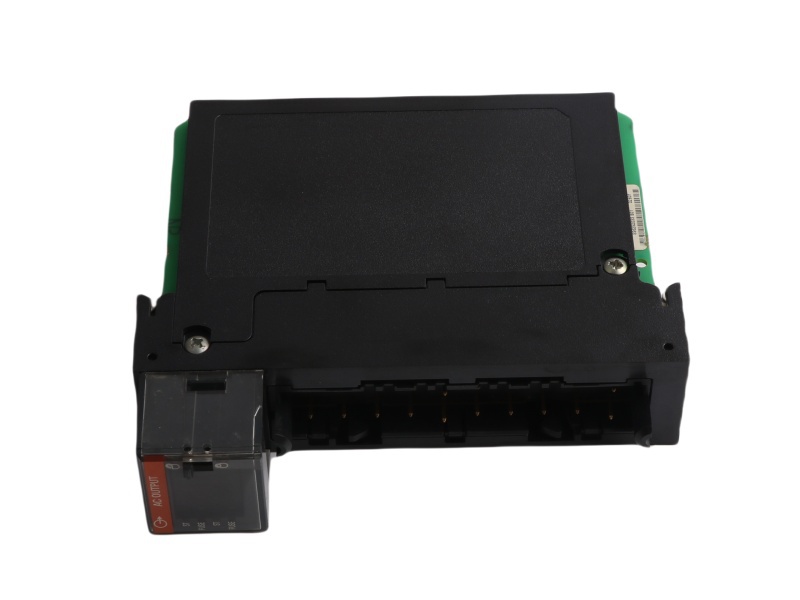

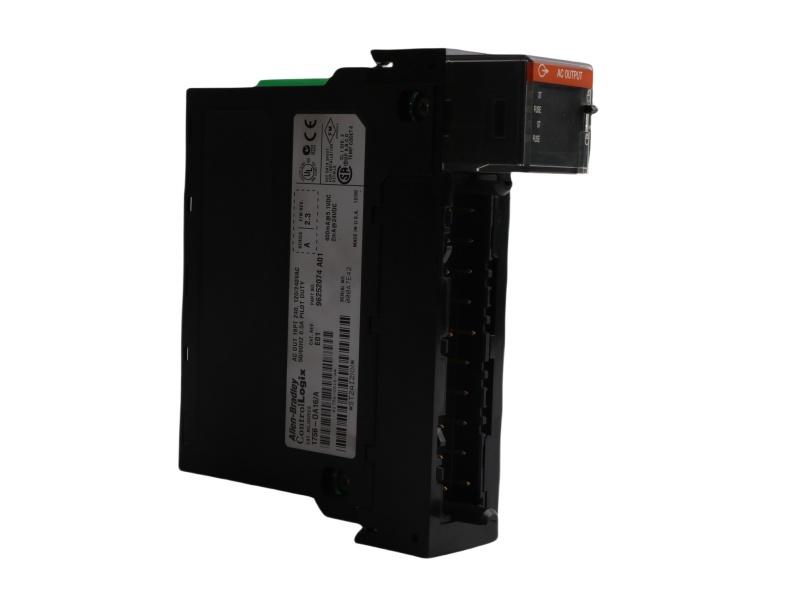

Allen-Bradley 1756-OA16 ControlLogix Discrete Output Module

Allen-Bradley 1756-OA16
Allen-Bradley 1756-OA16
Allen-Bradley 1756-OA16

1756-OA16 Product datasheet

Model number:

1756-OA16



Module Type:

Discrete Output Module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.26kg



HS CODE:

8537101190

Dimension:

3.5x14.2x14.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-OA16 Functional Description


The 1756-OA16 is a 16-point digital output module from Allen-Bradley's ControlLogix series. It is designed to manage digital outputs with a voltage range of 74-265 Volts AC at 46-63 Hertz, making it suitable for industrial automation applications. The module has an output current rating of 0.5 A per point, 2 A per group, and 4 A per module at 60°C. The minimum load current per point is 10 mA, ensuring efficient operation in various conditions. Its backplane current consumption is 400 mA at 5.1 V DC and 2 mA at 24 V DC, with total power dissipation of 2.1 Watts. The module’s maximum power and thermal dissipation at 60°C are 6.5 Watts and 22.17 BTU/hour, respectively.



The 1756-OA16 Fuse Replacement supports two removable terminal blocks: the 1756-TBSH and 1756-TBNH, enabling easy wiring and configuration. It offers multiple operational states, including on, off, and last state (for recovering from power loss). The voltage drop in the on state is 1.5 V at 0.5 A, and the maximum leakage current in the off state is 3 mA per point. Output delay times are 9.3 ms for off to on at 60 Hz, and 11 ms for on to off at 50 Hz. The FuseBlown and FieldPwrLoss fault indicators help alert users to issues such as blown fuses or power loss.



The 1756-OA16 Leakage Current operates within a temperature range of 32°F to 140°F and can be stored in conditions from -40°F to 185°F. It supports 5-95% relative humidity, non-condensing. The module can be mounted in compatible ControlLogix chassis, such as the 1756-A4, 1756/A7, 1756-A10, and others, and requires a removable terminal block for I/O signal termination. This makes it versatile for local or remote I/O applications.



With a pilot duty rating of 0.5 A, the 1756 ControlLogix Controllers 1756-OA16 Terminal Block is capable of controlling inductive loads like solenoids, valves, and relays, though for high inrush currents, isolation protection is recommended. It is fully compatible with ControlLogix and GuardLogix processors, offering seamless integration with a range of communication modules. Front panel indicators show the operational status of each channel, providing clear visual feedback.
