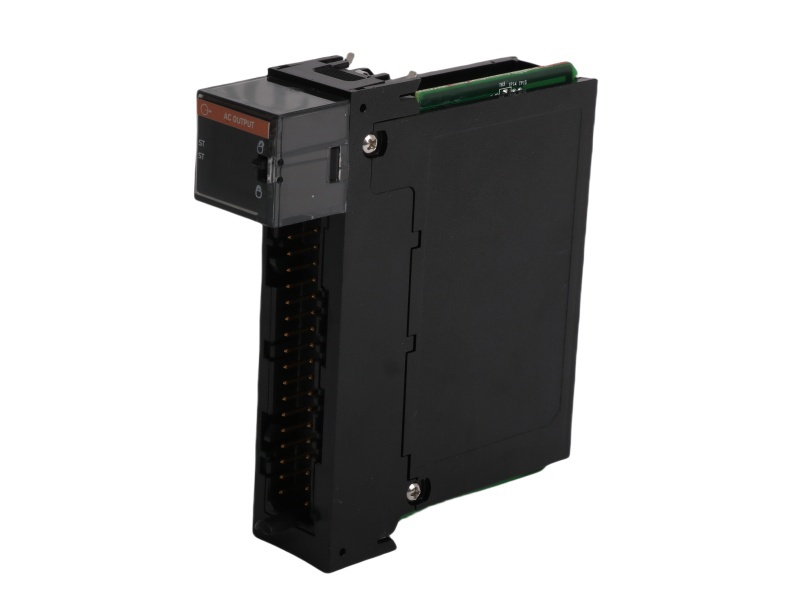

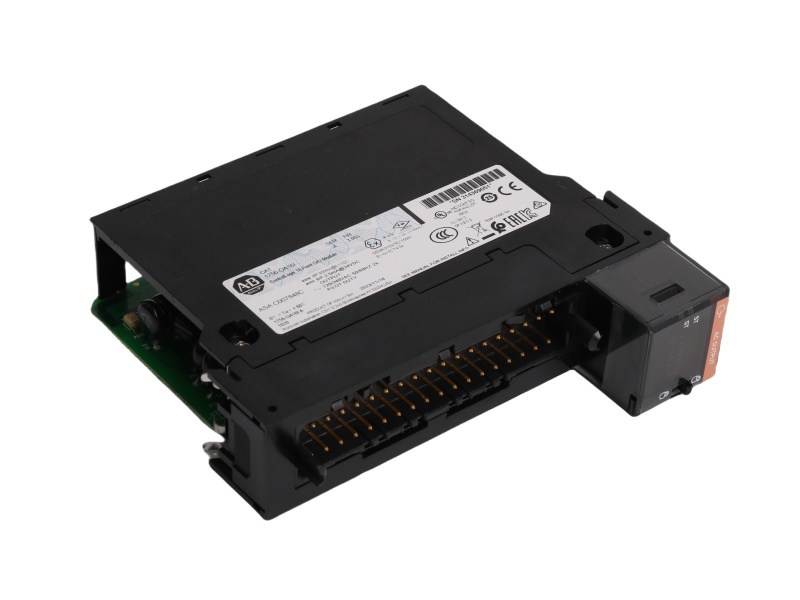

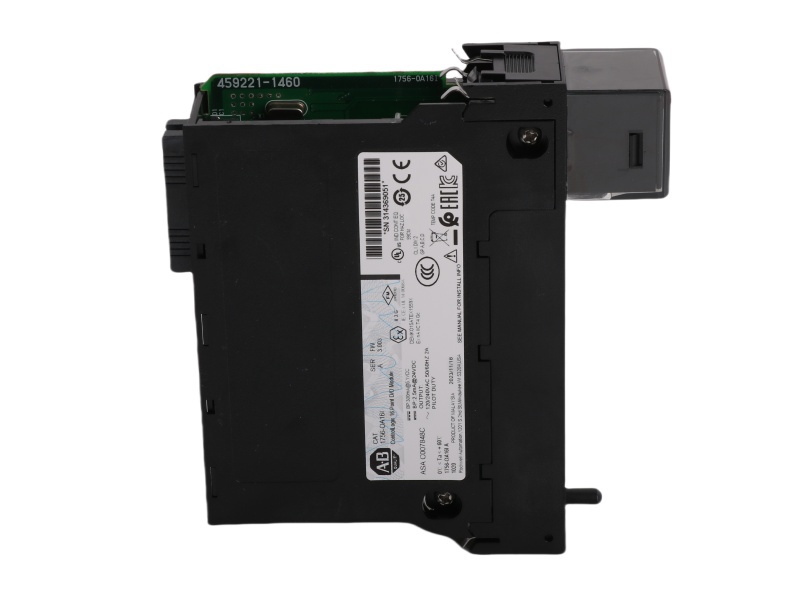

Allen-Bradley 1756-OA16I AC Digital Output Module

Allen-Bradley 1756-OA16I
Allen-Bradley 1756-OA16I
Allen-Bradley 1756-OA16I

1756-OA16I Product datasheet

Model number:

1756-OA16I



Module Type:

Digital Output Module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.44kg



HS CODE:

8537101190

Dimension:

21.5x17.5x5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-OA16I Functional Description


The Allen-Bradley 1756-OA16I is a sixteen-channel discrete output module designed for use within the ControlLogix product family. It operates within a voltage range of 75-265 VAC with a frequency of 47-63 Hz, and supports nominal voltages of 120/240 VAC at 50/60 Hz. Each output channel has an output delay time of 9.3 ms at 60 Hz and 11 ms at 50 Hz, for both the On to Off and Off to On transitions.



This 1756-OA16I discrete output module requires a Removable Terminal Block (RTB) for wiring connections, with compatible blocks including the 1756-TBCH and 1756-TBS6H. The 1756-OA16I discrete output module has a current draw of 300 mA at 5.1 VDC and 2.5 mA at 24VDC, with a total backplane power requirement of 1.59 watts. It is a single-slot module, compatible with chassis models like 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. The module can be installed either in a local rack along with ControlLogix controllers or in a remote I/O rack via a 1756 Communication Adapter.



The AB 1756-OA16I Terminal Block Wiring allows configuration of fault modes and output states per point, such as "Hold last state," "On," or "Off" (default). Although it lacks internal fusing, it offers isolation with a voltage rating of 250V, using basic insulation between outputs and the backplane, as well as between output channels.



In terms of electrical characteristics, the 1756-OA16I Wiring Diagram has an operational temperature range of 0-60°C, a thermal dissipation of 18.76 BTU/hr, and a maximum current load of 2A per point at 30°C. It features a 20A inrush current for 43ms per output point. The module also provides excellent electrical isolation, with 250V isolation voltage and testing at 1350V AC for 2s. It operates with a maximum shock of 30G and is rated for 5-95% non-condensing humidity.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1756-TBCH

Allen Bradley

1756-SYNCH

Allen Bradley

1756-SIM

Allen Bradley

1756-RIO

Allen Bradley

1756-PB75R

Allen Bradley

1756-PB72

Allen Bradley

1756-OX8I

Allen Bradley

1756-OV16E

Allen Bradley

1756-OG16

Allen Bradley

1756-OF6VI

Allen Bradley

1756-OB16IS

Allen Bradley

1756-OB16E

Allen Bradley

1756-OA8E

Allen Bradley

1756-OA8D

Allen Bradley

1756-OA16

Allen Bradley

1756-M03SE

Allen Bradley

1756-M02AE

Allen Bradley

1756-OA16I

Allen Bradley

1756-M08SE

Allen Bradley

1756-LSP

Allen Bradley

1756-L63S

Allen Bradley

1756-M16SE

Allen Bradley

1756-L72S

Allen Bradley

1756-L63XT

Allen Bradley

1756-L62

Allen Bradley

1756-L71S

Allen Bradley

1756-L61

Allen Bradley

756-L63

Allen Bradley

1756-L71

Allen Bradley

1756-L65







ControlLogix System Overview


The ControlLogix system provides discrete, drives, motion, process, and safety control together with communication and state-of-the-art

I/O in a small, cost-competitive package. The system is modular, so you can design, build, and modify it efficiently with significant savings in

training and engineering.

A simple ControlLogix system consists of a standalone controller and I/O modules in one chassis. For a more comprehensive system, use the

following:

• Multiple controllers in one chassis

• Multiple controllers joined across networks

• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O links

• Select ControlLogix products are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive

environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.

The ControlLogix controller is part of the Logix 5000™ family of controllers.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links. ControlLogix controllers

can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and

many third-party process and device networks.

• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.

Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over

networks) but operate independently.

• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the

chassis. ControlLogix 5580 controllers have a built-in EtherNet/IP port.
