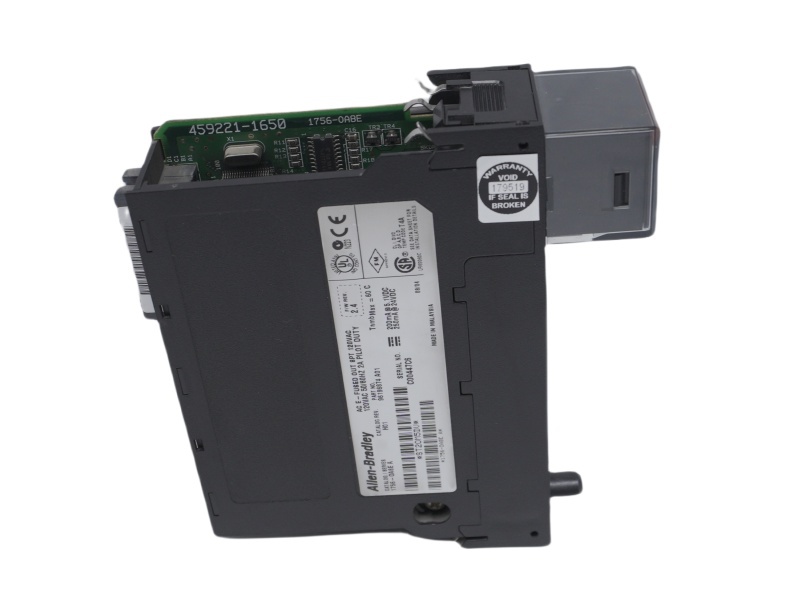

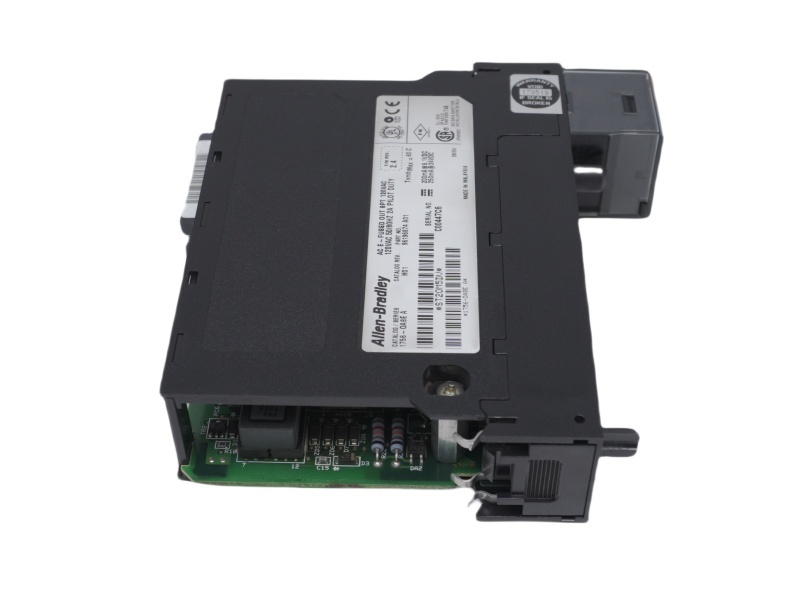

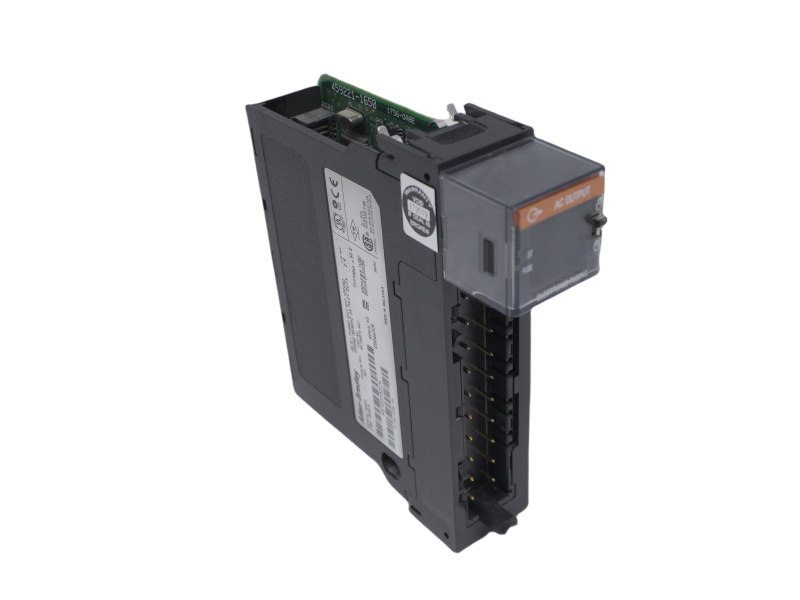

Allen-Bradley 1756-OA8E AC output module

Allen-Bradley 1756-OA8E
Allen-Bradley 1756-OA8E
Allen-Bradley 1756-OA8E

1756-OA8E Product datasheet

Model number:

1756-OA8E



Module Type:

AC output module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

ControlLogix



Lead time:

In Stock

Weight:

0.3kg



HS CODE:

8537101190

Dimension:

14.5x13.2x3.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

December 31, 2012



Communication Service:

Ethernet router



1756-OA8E Functional Description


The Allen-Bradley 1756-OA8E is a ControlLogix discrete output module designed to deliver reliable and efficient control of output signals. With eight (8) output channels, this module provides a nominal output voltage of 120 VAC, with an operating range of 74-132 VAC and a frequency of 47-63 Hz. The 1756-OA8E ControlLogix discrete output module features two groups of four channels, each capable of handling 2 A at 60°C (140°F), with a maximum combined output current of 8 A at 30°C (86°F) and 4 A at 60°C (140°F), ensuring flexibility for various industrial applications.



This module is optimized for high performance with a fast output transition time of 9.3 ms at 60 Hz and 11 ms at 50 Hz, ensuring quick and reliable switching between On and Off states. It draws 200 mA from the 5.1 VDC backplane and 250 mA from the 24 VDC supply, requiring a total backplane power of 7.02 W. Additionally, the 1756-OA8E ControlLogix discrete output module has a power dissipation of 5.5 W and thermal dissipation of 18.76 BTU/hr, making it efficient in managing heat during operation.



Each output point on the 1756-OA8E ControlLogix discrete output module is protected by electronic fuses, providing robust individual channel protection. The module has a maximum leakage current of 3 mA per point in the off state and supports a surge of 20 A for 43 ms every 2 seconds. The 1756-OA8E ControlLogix discrete output module is compatible with the 1756-TBNH or 1756-TBSH Removable Terminal Block (RTB) for signal connections.



Certified for both CE and UL standards, the 1756-OA8E ControlLogix discrete output module operates optimally in temperatures ranging from 0°C to 60°C, with a storage range between -40°C to 85°C, making it suitable for a variety of industrial environments.

If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1756-TBCH

Allen Bradley

1756-SYNCH

Allen Bradley

1756-SIM

Allen Bradley

1756-RIO

Allen Bradley

1756-PB75R

Allen Bradley

1756-PB72

Allen Bradley

1756-OX8I

Allen Bradley

1756-OV16E

Allen Bradley

1756-OG16

Allen Bradley

1756-OF6VI

Allen Bradley

1756-OB16IS

Allen Bradley

1756-OB16E

Allen Bradley

1756-OA8E

Allen Bradley

1756-OA8D

Allen Bradley

1756-OA16

Allen Bradley

1756-M03SE

Allen Bradley

1756-M02AE

Allen Bradley

1756-OA16I

Allen Bradley

1756-M08SE

Allen Bradley

1756-LSP

Allen Bradley

1756-L63S

Allen Bradley

1756-M16SE

Allen Bradley

1756-L72S

Allen Bradley

1756-L63XT

Allen Bradley

1756-L62

Allen Bradley

1756-L71S

Allen Bradley

1756-L61

Allen Bradley

756-L63

Allen Bradley

1756-L71

Allen Bradley

1756-L65







ControlLogix System Overview


The ControlLogix system provides discrete, drives, motion, process, and safety control together with communication and state-of-the-art

I/O in a small, cost-competitive package. The system is modular, so you can design, build, and modify it efficiently with significant savings in

training and engineering.

A simple ControlLogix system consists of a standalone controller and I/O modules in one chassis. For a more comprehensive system, use the

following:

• Multiple controllers in one chassis

• Multiple controllers joined across networks

• I/O in multiple platforms that are distributed in many locations and connected over multiple I/O links

• Select ControlLogix products are available with a conformal coating that adds a layer of protection when exposed to harsh, corrosive

environments. Products with a conformal coating have a ‘K’ suffix at the end of the catalog number.

The ControlLogix controller is part of the Logix 5000™ family of controllers.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links. ControlLogix controllers

can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and

many third-party process and device networks.

• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.

Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over

networks) but operate independently.

• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the

chassis. ControlLogix 5580 controllers have a built-in EtherNet/IP port.
