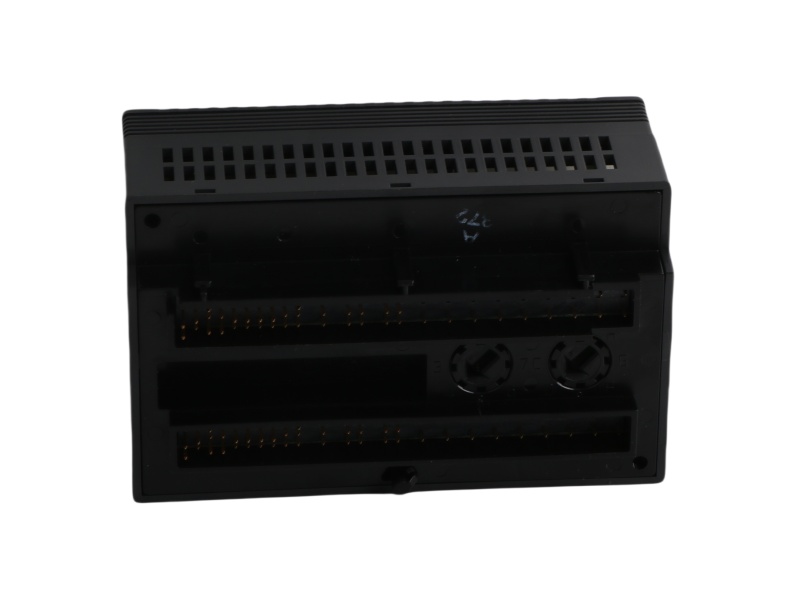

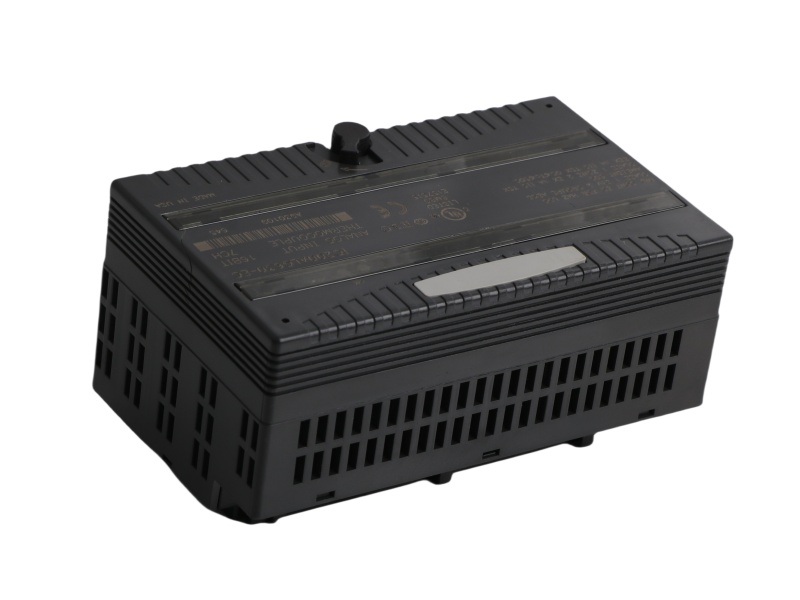

GE Fanuc IC200ALG322 Analog Output Module

Inquiry now

IC200ALG322 Product datasheet

Model number:	IC200ALG322	Module Type：	Analog Output Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	VersaMax	Lead time：	In Stock
Weight:	0.26 kg	HS CODE：	8537101190
Dimension:	15.5x15x8.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC200ALG322 Functional Description

The IC200ALG322 is a Versamax analog output module designed by GE Fanuc to facilitate the connection of various outputs to the main processor within a circuit. Featuring four analog voltage outputs, this module acts as a crucial connector for equipment requiring such interfaces. While the module draws power from the shared backplane power supply used by the entire Versamax PLC system, the outputs themselves require an external power source for proper operation.

The IC200ALG322 Analog Output Module is equipped with intelligent processing capabilities, managed by the main CPU of the Versamax system. It also includes built-in diagnostic methods, providing valuable reports that help users detect potential power loss on field-side circuits. These diagnostics ensure that users can monitor the module's performance and confirm whether its connections are functioning as expected.

Before installation, it is important to inspect the General Electric IC200ALG322 On Sale Large Stock Plc Controller and record the device's serial numbers, along with retaining all shipping containers and packing materials for future reference. This module operates with an output voltage of +/-10.24 Volts DC and supports a resistive load of at least 5000 Ohms. It offers a resolution of 12 bits and maintains an accuracy of +/-0.3 to 1 percent when used within the temperature range of 25°C to 60°C. The IC200ALG322 Analog Input, 16 Bit RTD 4 Channels consumes 210 milliamps of current and features a channel-to-channel crosstalk rejection of 70 dB minimum. While the module is resilient to high temperatures, it may experience performance degradation when exposed to environments with excessive radiofrequency interference.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

VersaMax Micro, Micro PLUS and Nano PLC Models

Introduction

Versions of these compact, powerful controllers are available for AC and DC power, and with several different combinations of discrete and analog input and output points. This chapter compares the features of the many VersaMax Nano, Micro and Micro PLUS PLC models that are available. Micro PLUS 20/40/64 CPUs have enhanced memory compared to earlier versions of these CPUs. Firmware versions 4.00 and later cannot be used with the earlier hardware versions.

The VersaMax® PLC family of products includes a broad range of small-size programmable logic controllers (PLCs) with big-PLC features. The VersaMax family includes Nano PLCs (10 points), Micro PLCs (up to 176 I/O points), and Micro PLUS PLCs (up to 320 I/O points) using optional Expansion Units. These small PLCs are the perfect solution for applications such as packaging machines, dispensing machines, and relay replacement.

Changes to the program that do not modify the size of the program are considered wordfor-word changes. Examples include changing the type of contact or coil or changing a reference address used for an existing function block. Changing an operand is usually a word-for-word change. A word-for-word change can be made and downloaded to the PLC while online in programmer mode without having to download the entire block of logic.
