IC200CHS022 Product datasheet
Model number: |
IC200CHS022 |
|
Module Type: |
Compact Box-Style I/O Carrier |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
VersaMax |
|
Lead time: |
In Stock |
Weight: |
0.24 kg |
|
HS CODE: |
8537101190 |
Dimension: |
16.5x6.5x7cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200CHS022 Functional Description

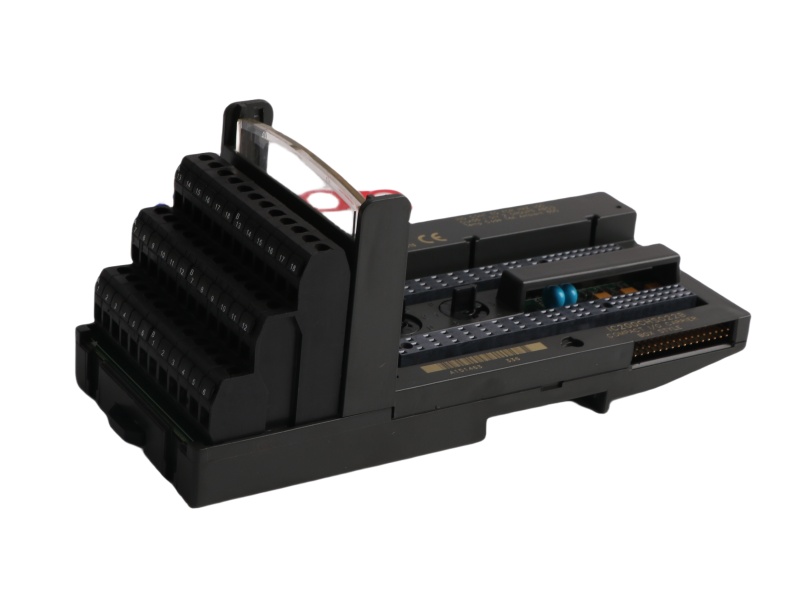

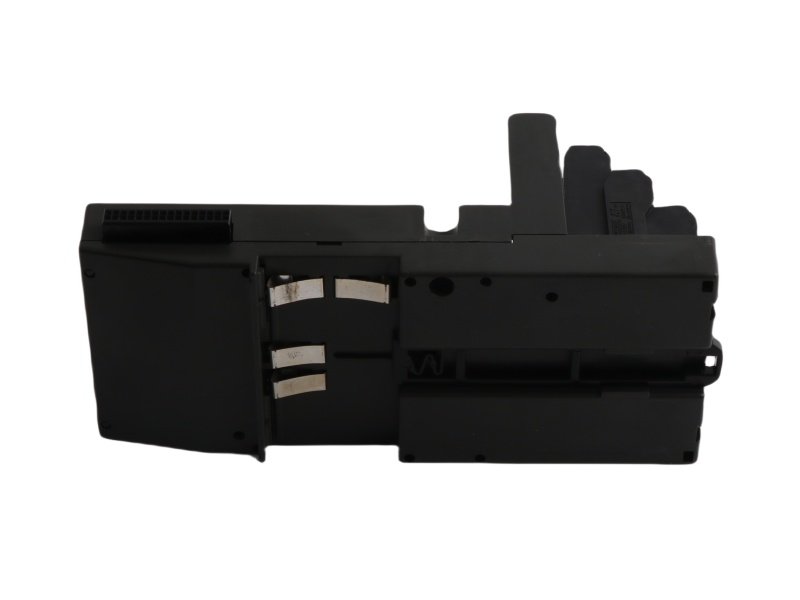

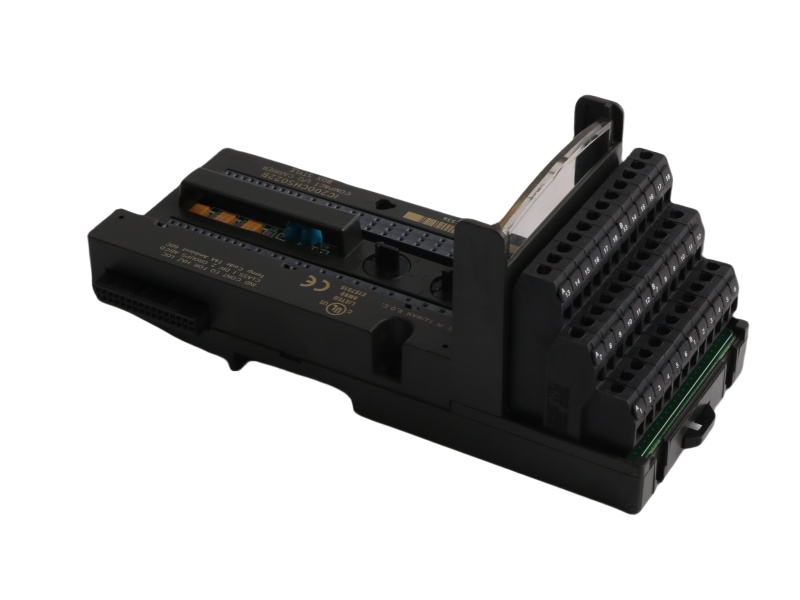

The IC200CHS022 is a carrier module from Emerson Automation’s VersaMax product family, also known as a terminal base. It is designed to work with VersaMax I/O modules, providing wiring terminals for input and output devices depending on the installed module type.
The IC200CHS022 Compact Box-Style I/O Carrier features 36 IEC box-style screw terminals, supporting solid or stranded copper wires. Single-wire connections range from AWG #14 to AWG #22, while two-wire shorting connections use AWG #18. The terminals are labeled A1-A18 and B1-B18 for easy identification. Each terminal is rated for 0-264 VAC and 2A, while power and ground segments support up to 8A. The terminals can also withstand transient voltages of up to 300 VAC.
For installation, the IC200CHS022 I/O carrier module supports both DIN rail and panel mounting. Its compact dimensions (66.8 x 70 x 163.5 mm) require at least 1 inch of horizontal and 2 inches of vertical spacing to ensure proper heat dissipation. The module includes a hinged card holder that secures the I/O module and covers terminal wiring during operation.
A key advantage of the IC200CHS022 I/O Adapter Module is its modularity, allowing I/O modules to be replaced or serviced without disconnecting existing wiring, reducing system downtime. It operates reliably within a temperature range of 0 to 60°C, making it an ideal choice for industrial automation applications.
