IC200UEX211 Product datasheet

IC200UEX211 Functional Description

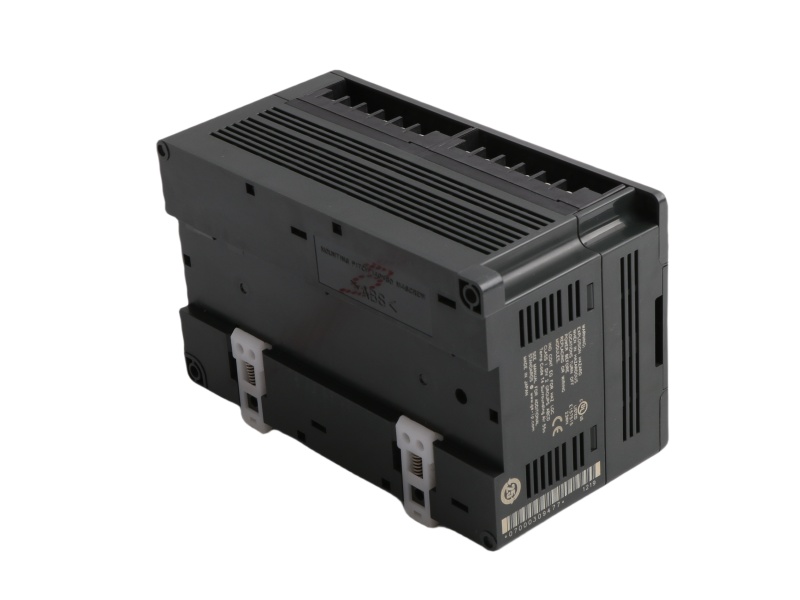

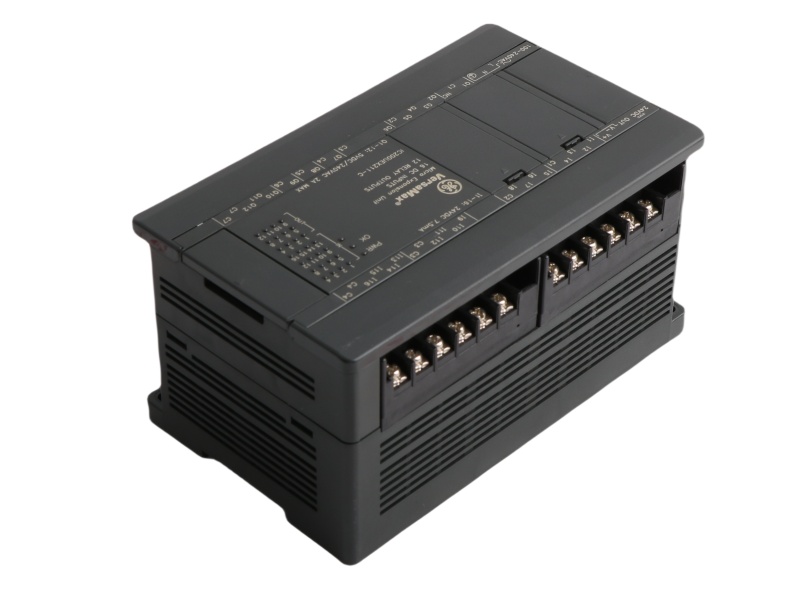

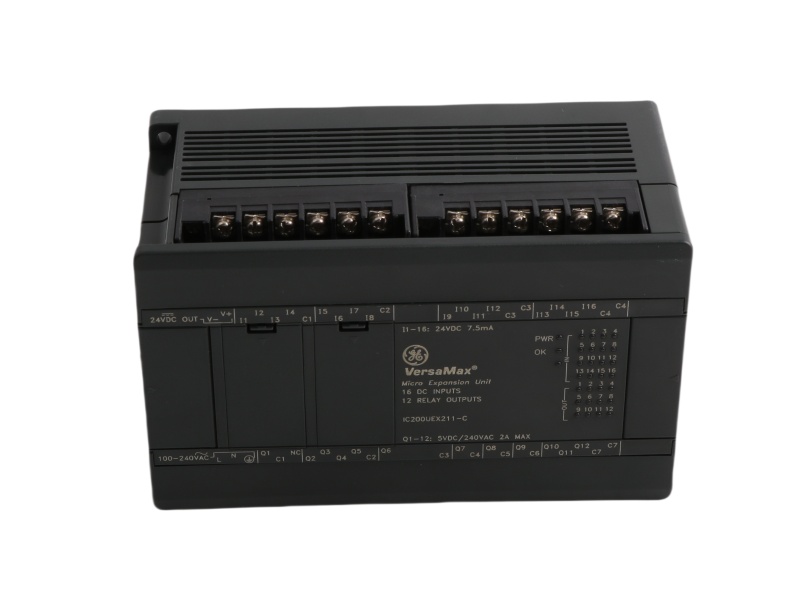

The IC200UEX211 VersaMax Micro PLC Expansion Unit is a highly versatile component, offering sixteen configurable DC inputs and twelve relay outputs, with an input power range of 100VAC to 240VAC. This expansion unit is designed to integrate easily into a variety of automation systems.

DC Inputs

The IC200UEX211 PACSystems RX3i Controllers provides sixteen DC inputs that can be configured for either positive or negative logic. These inputs are compatible with a wide range of devices like pushbuttons, limit switches, and proximity sensors. The unit can also supply +24VDC for input devices, with a maximum current of 200mA for both the input circuits and connected devices.

Relay Outputs

The IC200UEX211 VersaMax Micro Expansion Modules features twelve Form A relay outputs, rated for 2 amps each, that are ideal for controlling motor starters, solenoids, and other load devices. The relay outputs are normally open and can be powered by either AC or DC sources, offering flexibility for a variety of field devices.

Specifications

The IC200UEX211 GE FANUC CONTROL PLATFORMS comes with sixteen 24VDC input circuits, twelve 2-amp relay circuits, and a +24VDC power supply capable of delivering up to 200mA to connected devices. It accepts AC power from 100VAC to 240VAC, with a frequency range from 50Hz to 60Hz. The unit also supports high inrush currents, up to 40 amps, ensuring reliable operation in demanding environments.

With its compact design and robust specifications, the IC200UEX211 is a highly effective solution for managing inputs and outputs in industrial control applications, enhancing the versatility and efficiency of automation systems.
