IC200UEO116 Product datasheet
Model number: |
IC200UEO116 |
|
Module Type: |
Expansion Output Modules |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
VersaMax |
|
Lead time: |
In Stock |
Weight: |
0.26 kg |
|
HS CODE: |
8537101190 |
Dimension: |
9.4x9.3x7.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200UEO116 Functional Description

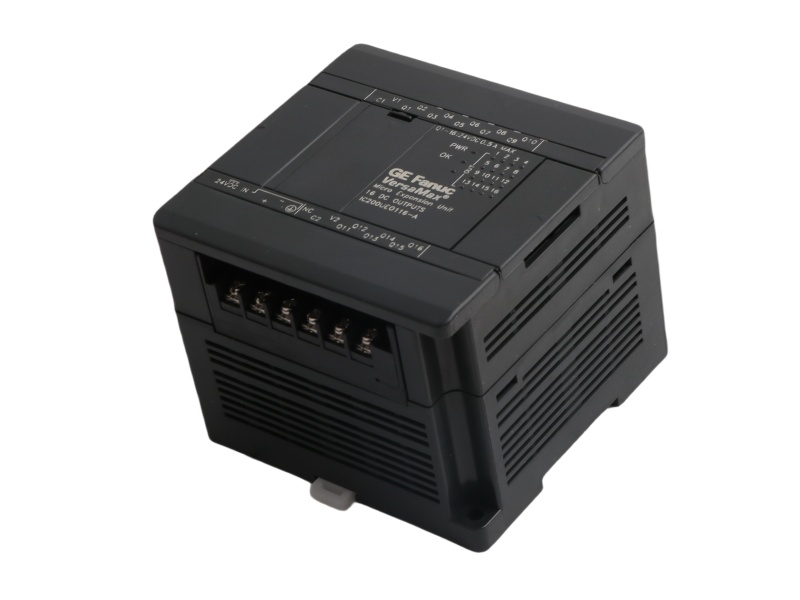

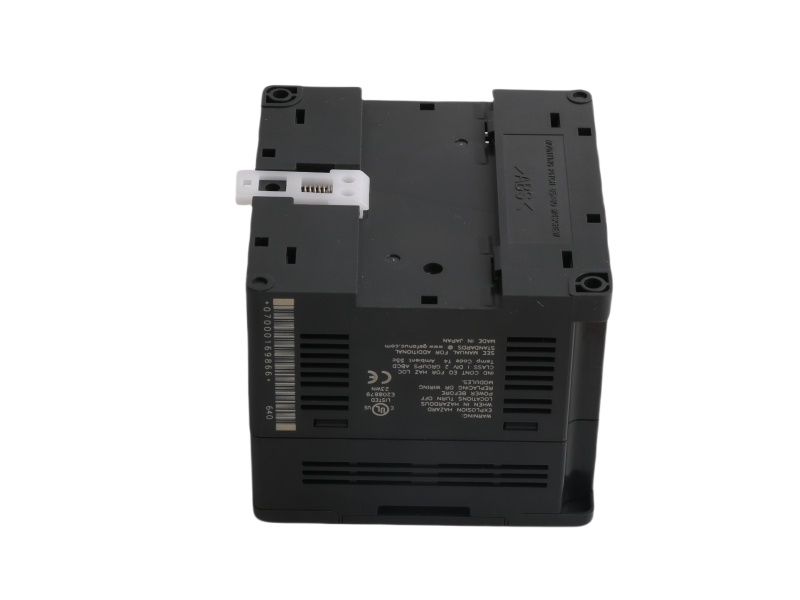

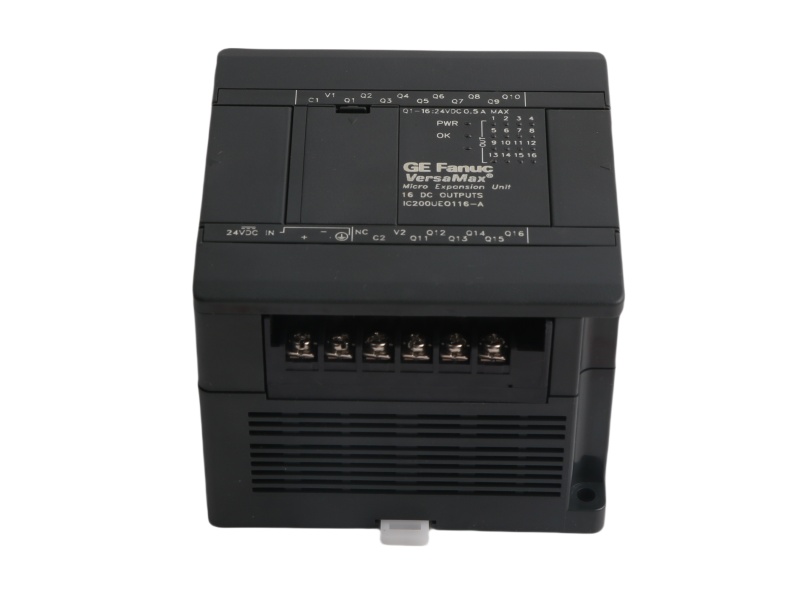

The VersaMax Micro PLC Expansion Units IC200UEO116, offer 8 and 16 DC sink-type outputs, respectively, with a nominal input power requirement of +24VDC. These modules feature transistor outputs that are isolated between field and logic, switching positive voltage.
To ensure the protection of the outputs, external fusing is required. Failure to do so may result in damage to the output transistor, as it is not user-replaceable. Fast fuses are recommended for optimal safety. The IC200UEO116 Micro PLC 28 Point Expansion Unit are designed to share one common incoming 24VDC supply and one common ground. These outputs are capable of handling high inrush currents (up to 8 times the rated current) and are also protected against negative voltage pulses, making them suitable for switching inductive loads and lamps.
The specifications for the IC200UEO108 and IC200UEO116 expansion units are as follows:
IC200UEO116 OUTPUT EXPANSION (16) 24VDC SINK OUTPUTS Outputs:
IC200UEO108: 8 sink-type DC transistor output circuits
IC200UEO116: 16 sink-type DC transistor output circuits
IC200UEO116 Power Specifications:
Voltage Range: 24VDC with a tolerance of -20% to +25%
Hold-up Time: 10ms at 19.2VDC
Inrush Current: 1A maximum at 30VDC, with a 10ms time duration
Input Current: 0.16A typical at 24VDC
Power Supply Rating: 4W
IC200UEO116 Transistor Output Details:
Voltage Range: 12/24VDC (+10%/-15% at VC)
Maximum Load: 0.5A per point, 3A per common
Maximum Inrush Current: 1A
Output Voltage Drop: 0.3V maximum
OFF-state leakage: 0.1mA maximum
Switching Time: 0.5ms (OFF to ON or ON to OFF)
Isolation Voltage: 1500V RMS between field and logic sides
External power supplies ranging from 10-30VDC are required to power the outputs. Additionally, external fuses should be used to protect the outputs. A minimum switching current of 1mA is also specified for these modules. The IC200UEO116 expansion unit provides an efficient and reliable solution for handling complex control tasks in industrial automation applications.
