IC200UDD104 Product datasheet
|
Model number: |
IC200UDD104 |
|
Module Type： |
Micro 14 point PLC |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
VersaMax |
|
Lead time： |
In Stock |
|
Weight: |
0.28 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
9.4x9.3x7.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200UDD104 Functional Description

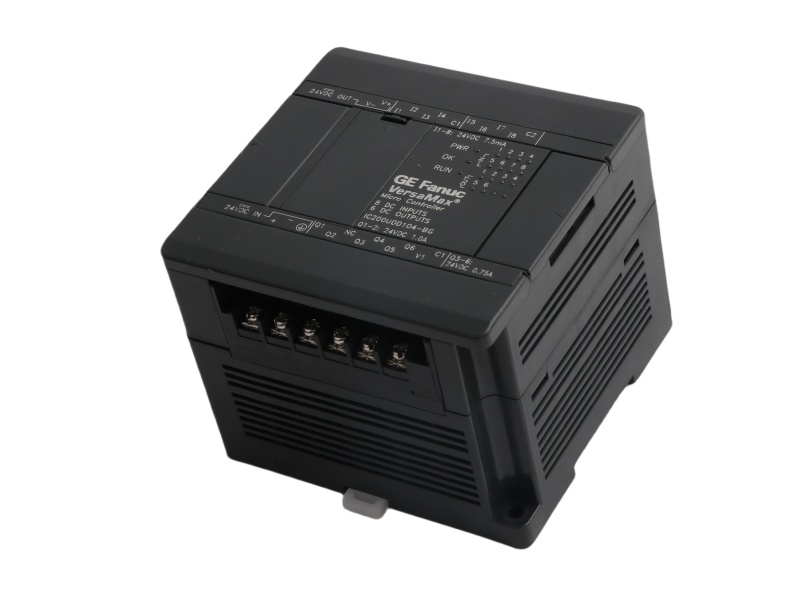

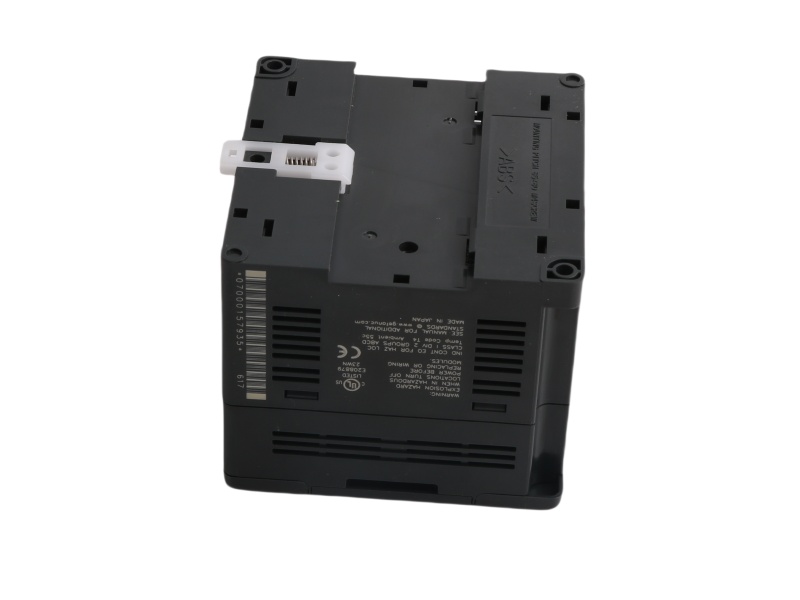

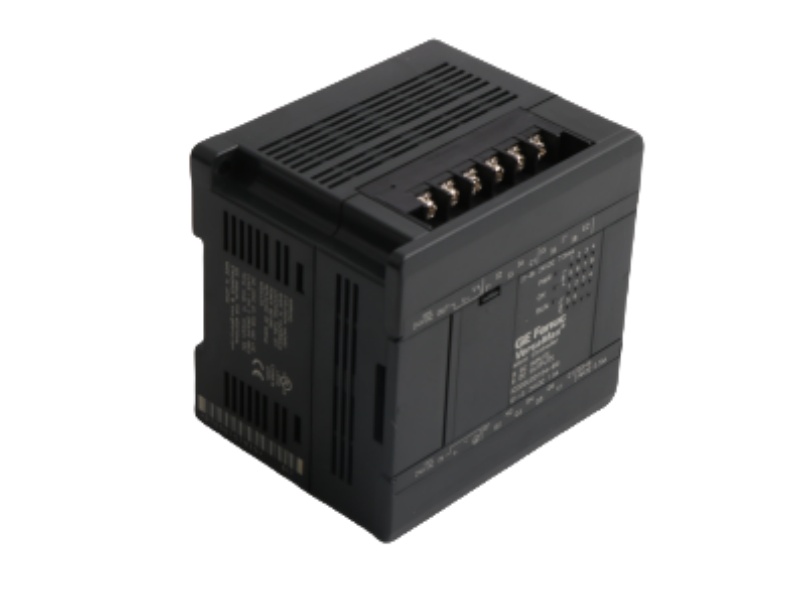

The IC200UDD104 Micro PLC module, developed by GE Fanuc, is a versatile and rugged 14-point programmable logic controller. It features 8 DC inputs, 4 low-current DC transistor outputs, and 2 high-current DC transistor outputs, providing a total of six 24V DC outputs. These outputs are designed with positive logic switching and are isolated between the field and logic sides. To protect these outputs, fast fuses are recommended. The module includes a run/stop mode switch for configuring the operational states of the PLC. The input and output terminals are accessible via a removable terminal strip that comes with a protective cover.
One of the key functionalities of the IC200UDD104 VersaMax Micro 14 point PLC is its high-speed counter capabilities, making it suitable for pulse operations in various industrial applications, including velocity measurements and motion control. The module includes Type A counters for positive and negative edge detection, and Type B counters supporting A Quad B functionality. Additionally, the module offers 2 analog potentiometers, a comprehensive programming instruction set that includes floating-point math, and non-volatile flash memory for program storage. It can be configured to read configurations from either RAM or ROM flash memory during power-up.
The outputs of the IC200UDD104 Micro PLC module can handle load voltages of 12/24V and support a maximum PWM frequency of 5 kHz. There are also 4 pulse output types, including HSC, PT, and PWM, offering a wide range of control options to meet diverse industrial needs. With its robust design and flexibility, the IC200UDD104 is well-suited for demanding control applications.
External power supplies ranging from 10-30VDC are required to power the outputs. Additionally, external fuses should be used to protect the outputs. A minimum switching current of 1mA is also specified for these modules. The General Electric IC200UDD104 Micro Controller expansion unit provides an efficient and reliable solution for handling complex control tasks in industrial automation applications.
