IC693CBK001 Product datasheet
|
Model number: |
IC693CBK001 |
|
Module Type： |
cable kit |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 |
|
Lead time： |
In Stock |
|
Weight: |
0.14 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
45x6.2x1.6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693CBK001 Functional Description

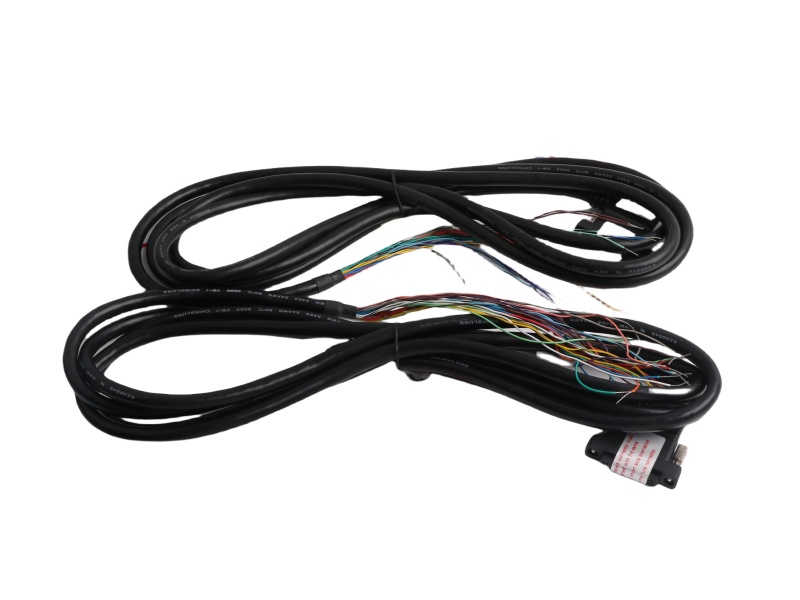

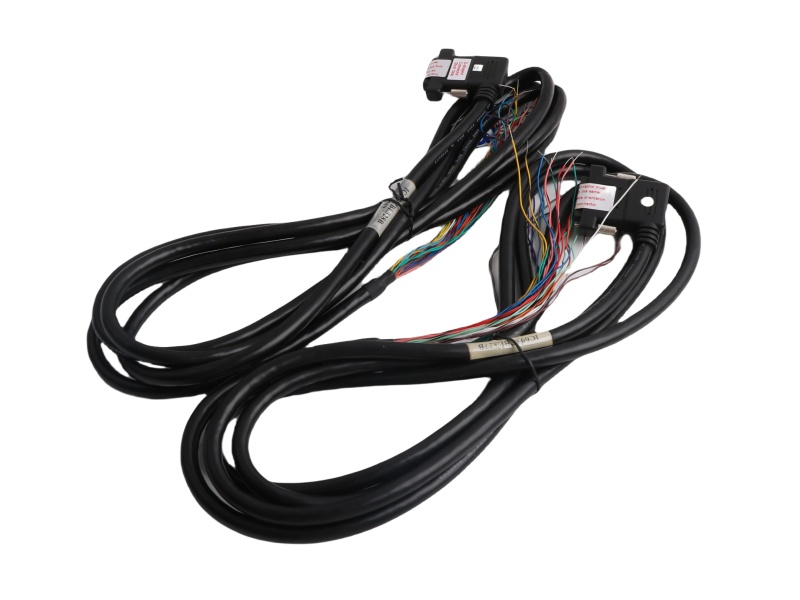

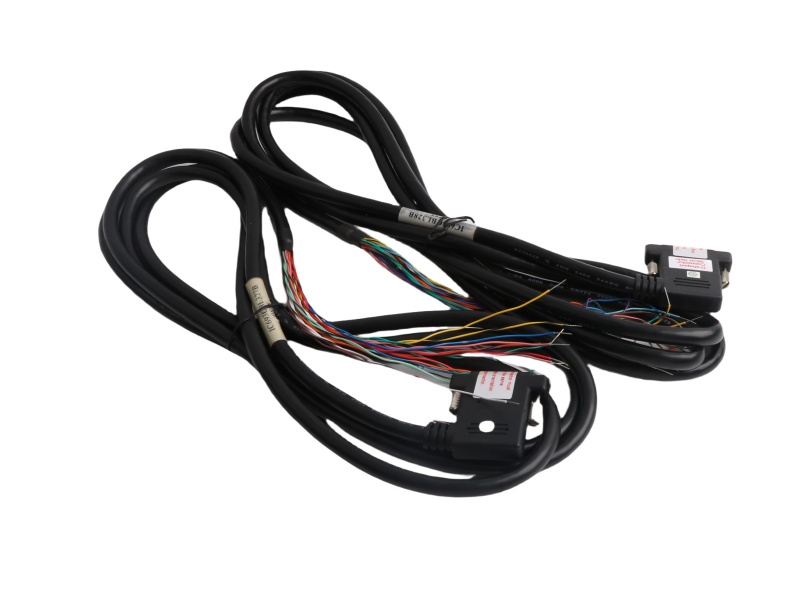

The IC693CBK001 cable kit, developed by GE Fanuc Automation, is an essential component of the GE Series 90-30 lineup. This kit includes high-density I/O cables with right-angle connections, ensuring a secure and reliable connection for high-tension circuits. Designed to work seamlessly with high-density I/O modules from the same series, the IC693CBK001 cable kit comprises two cables: the left cable (IC693CBL327) and the right cable (IC693CBL328). These cables connect 32-point I/O modules via two 24-pin connectors located on the module's front panel. Each cable features a 24-pin connector on one end and stripped ends on the other, with each pin rated for 1.2 Amps of current, adjustable when used with 16-point output modules.
The IC693CBK001 kit excels in applications where I/O modules are installed with generic terminal blocks or direct mounting methods. For modules equipped with dual 24-pin connectors, these cables ensure optimal performance. Measuring 3 meters in length, the right and left cables replace older straight-connector designs, offering improved usability and durability. This EMERSON IC693CBK001 cable kit is highly compatible with GE Series 90-30 32-point I/O modules, including the IC693MDL654, 655, 752, and 753 models.
With its robust design and compatibility, the GE Fanuc IC693CBK001 Series 90-30 Processor Cable delivers superior connectivity for demanding industrial applications, solidifying its role as a vital accessory in the GE Series 90-30 system.
