GE Fanuc IC693CBL305 Wye connection cable

GE Fanuc IC693CBL305
GE Fanuc IC693CBL305
GE Fanuc IC693CBL305

IC693CBL305 Product datasheet

Model number:

IC693CBL305



Module Type:

Wye connection cable

Manufacture:

GE



Condition:

Brand New

Range of Product:

Series 90-30



Lead time:

In Stock

Weight:

0.14 kg



HS CODE:

8537101190

Dimension:

45x6.2x1.6cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



IC693CBL305 Functional Description


The GE Fanuc IC693CBL305 Wye Cable is an essential accessory for the GE Series 90-30 communications coprocessor modules. This cable serves a key role in separating the combined serial ports of the coprocessor modules into two distinct ports, referred to as Port 1 and Port 2. This physical separation simplifies wiring and ensures more manageable installation. The IC693CBL305 RS-232 Cable (1 Meter)- Black Wye Cable is specifically designed to split the two ADC port connections from a single connector on an ADC module. It is provided with the GE Series 90-30 communications coprocessor modules for convenient use.

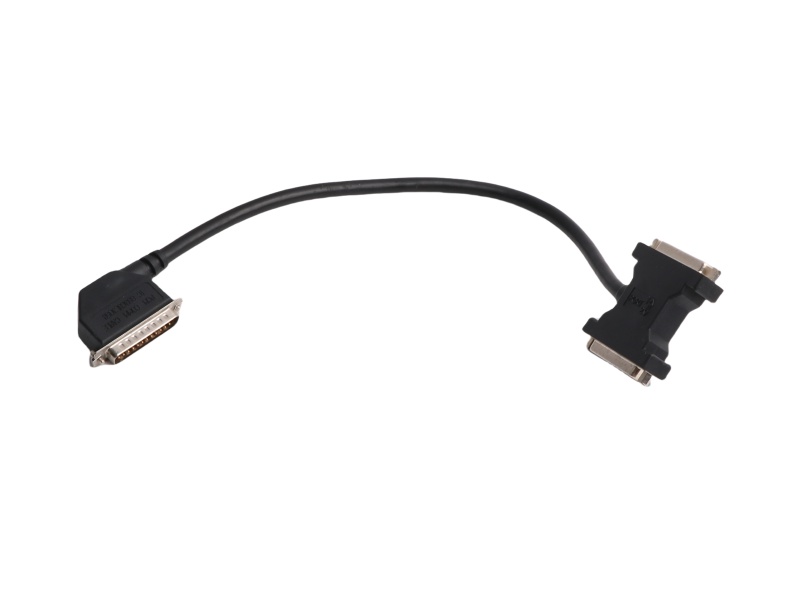

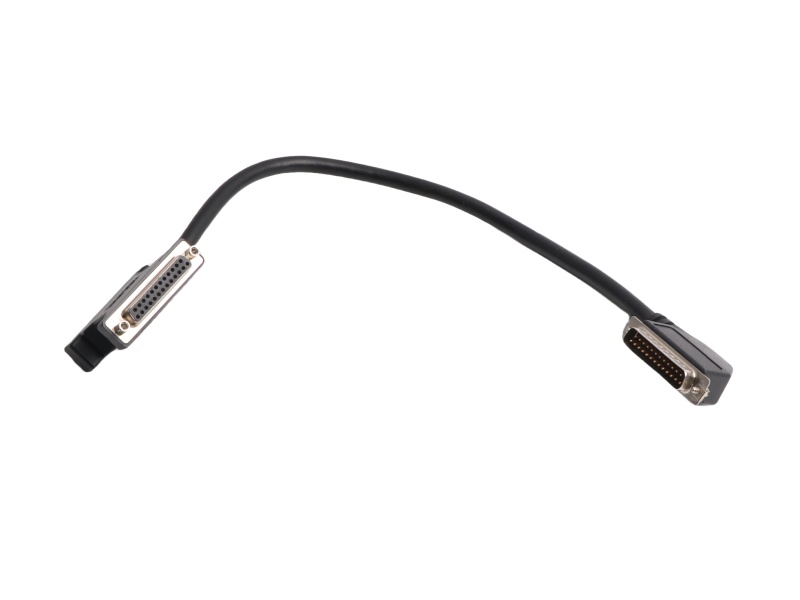

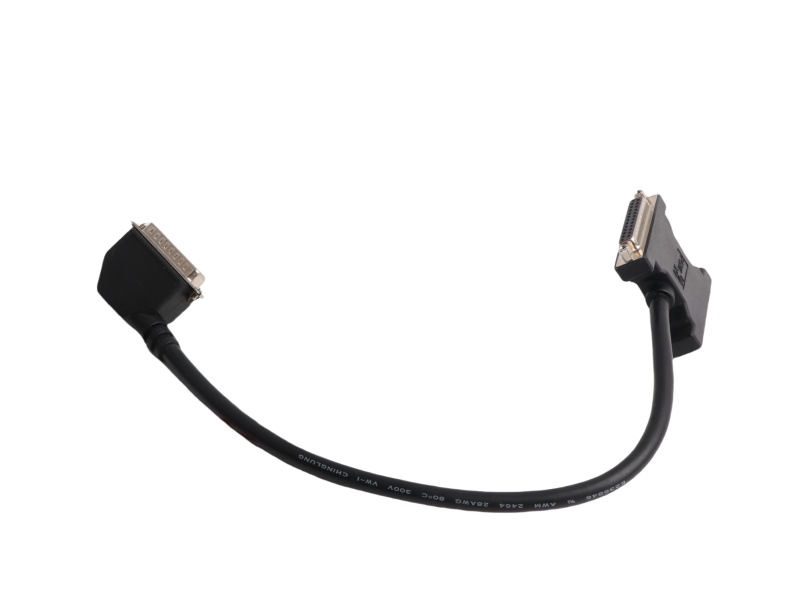

With a maximum length of 30.5 centimeters (1 foot), the IC693CBL305 Series 90-30 Processor Cable is compact yet functional. It features uniquely shaped connectors at both ends: one end includes a right-angle connector to attach to the combined serial port of the communications coprocessor modules, while the other end has dual connectors for Port 1 and Port 2. This configuration gives the cable its distinctive "Y" shape, with a single connector on one side and dual connectors on the other. The IC693CBL305 Wye Cable is compatible with Series 90-30 CMM and PCM modules, which have Port 1 and Port 2 configured as a single connector by default.



The Emerson GE IC693CBL305 RS-232 cable design facilitates physical separation between the two ports, allowing for efficient wiring. It supports RS-232 communication for Port 1 and RS-232 or RS-485 for Port 2, routing signals to their respective 25-pin connectors. In summary, the IC693CBL305 Wye Cable is a vital tool for simplifying the setup and ensuring clear separation of signals in GE Series 90-30 systems.
